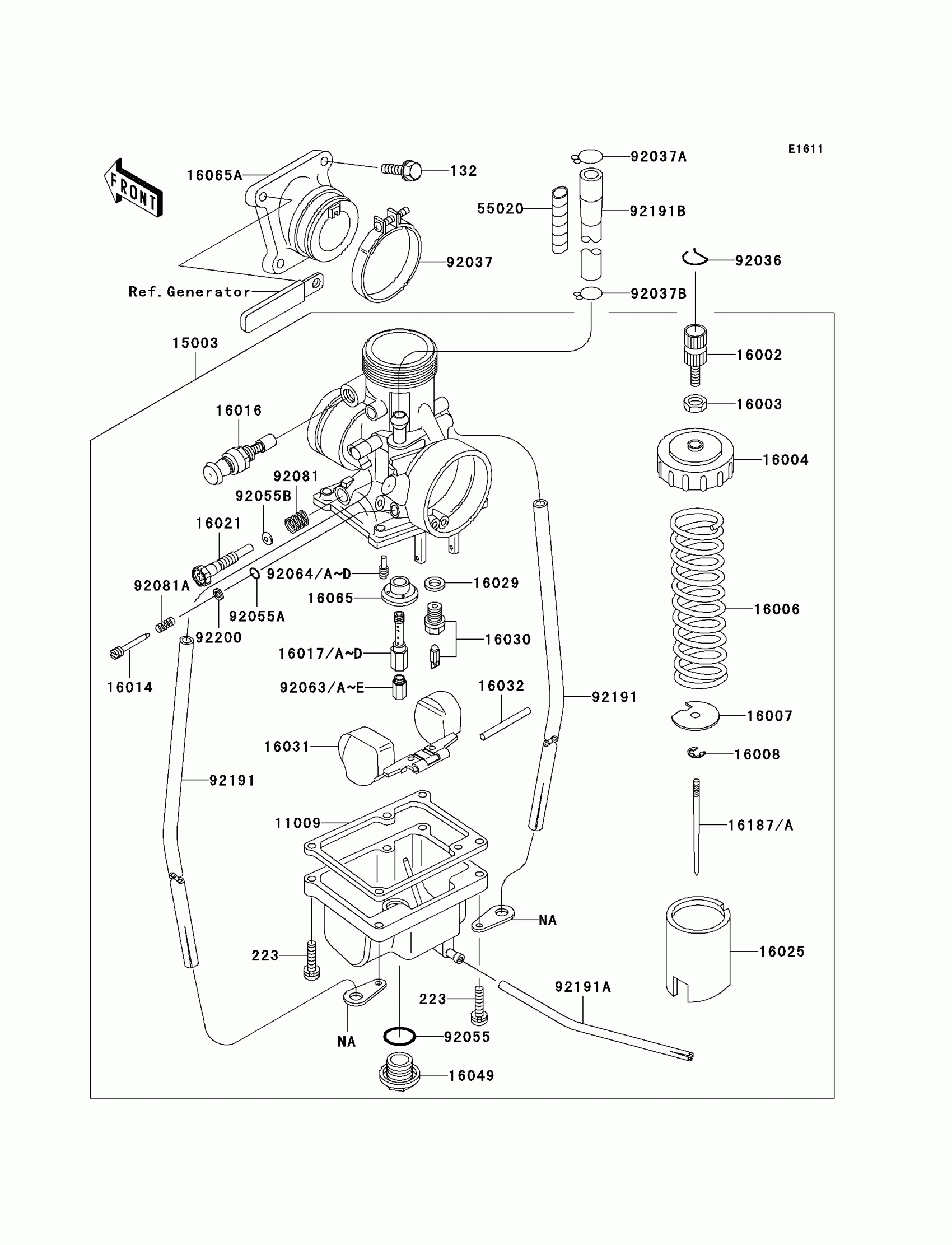

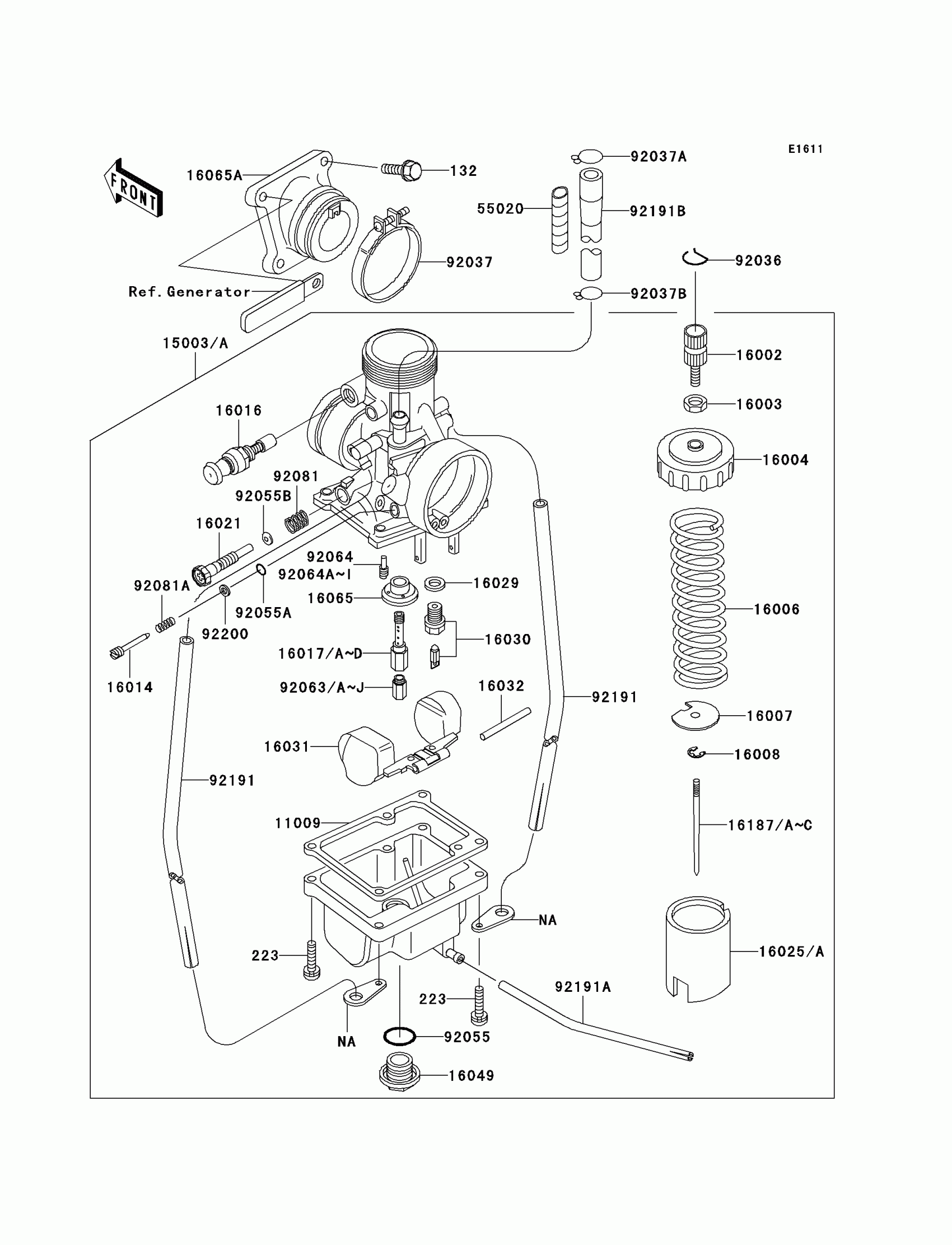

Kawasaki KX65 Carburetor Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1147

$9.85

15003A

CARBURETOR-ASSY

15003-1669

$192.06

16002

ADJUSTER-CABLE

16002-011

$10.61

16003

NUT,ADJUST LOCK

16003-006

$5.61

16004

CAP-CHAMBER

16004-025

$33.92

16006

SPRING,THROTTLE VALVE

16006-023

$14.22

16007

SEAT-SPRING,THROTTLE VALVE

16007-023

$9.85

16008

CLAMP

16008-1010

$2.63

16014

SCREW-PILOT AIR

16014-1116

$14.44

16016

PLUNGER,STARTER

16016-1052

$44.15

16017

JET-NEEDLE,N-8

16017-1412

$44.84

16017A

JET-NEEDLE,O-0

16017-1413

$44.84

16017B

JET-NEEDLE,O-2

16017-1414

$44.84

16017C

JET-NEEDLE,O-4

16017-1415

$44.84

16017D

JET-NEEDLE,N-6

16017-1418

$44.84

16021

SCREW-THROTTLE STOP

16021-1224

$15.24

16025

VALVE-THROTTLE,CA1.5

16025-1040

$49.23

16029

WASHER FLOAT VLV SEAT

16029-004

$2.97

16030

VALVE-FLOAT,#2.5

16030-1095

$50.96

16031

FLOAT

16031-1005

$54.64

16032

PIN,FLOAT

16032-003

$5.95

16049

COVER-MAIN JET

16049-1001

$25.31

16065

HOLDER,JET NEEDLE

16065-1020

$17.34

16065A

HOLDER-CARBURETOR

16065-1366

$58.86

16187B

NEEDLE-JET,5GSP68

16187-1226

$36.62

16187C

NEEDLE-JET,5GSP69

16187-1227

$36.62

55020

GUARD,FUEL TUBE

55020-1787

$4.39

92036

RING-SNAP

92036-018

$2.97

92037

CLAMP

92037-1305

$6.89

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP

92037-1712

$3.81

92055

RING-O,MAIN JET COVER

92055-1061

$8.37

92055A

RING-O,AIR SCREW

92055-1658

$4.53

92055B

RING-O

92055-2068

$1.63

92063

JET-MAIN,#170

92063-019

$13.39

92063A

JET-MAIN,#180

92063-020

$13.39

92063B

JET-MAIN,#190

92063-021

$13.39

92063C

JET-MAIN,#200

92063-022

$13.39

92063D

JET-MAIN,#210

92063-023

$13.39

92063G

JET-MAIN,#230

92063-025

$15.20

92064

JET-PILOT,#20

92064-021

$15.95

92064A

JET-PILOT,#30

92064-022

$15.97

92064D

JET-PILOT,#25

92064-032

$18.08

92064E

JET-PILOT,#22.5

92064-040

$15.97

92064G

JET-PILOT,#27.5

92064-1033

$15.97

92081

SPRING,THROTTLE ADJUST

92081-1152

$5.37

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

223

SCREW-PAN-WS-CROS

223B0416

Unavailable

92081A

SPRING,STOP SCREW

92081-1153

$4.39

92191

TUBE,3X5X280

92191-1495

$7.22

92191A

TUBE,3X5X220

92191-1496

$5.49

92191B

TUBE

92191-1611

$2.37

92200

WASHER,PILOT AIR SCREW

92200-1564

$1.82
