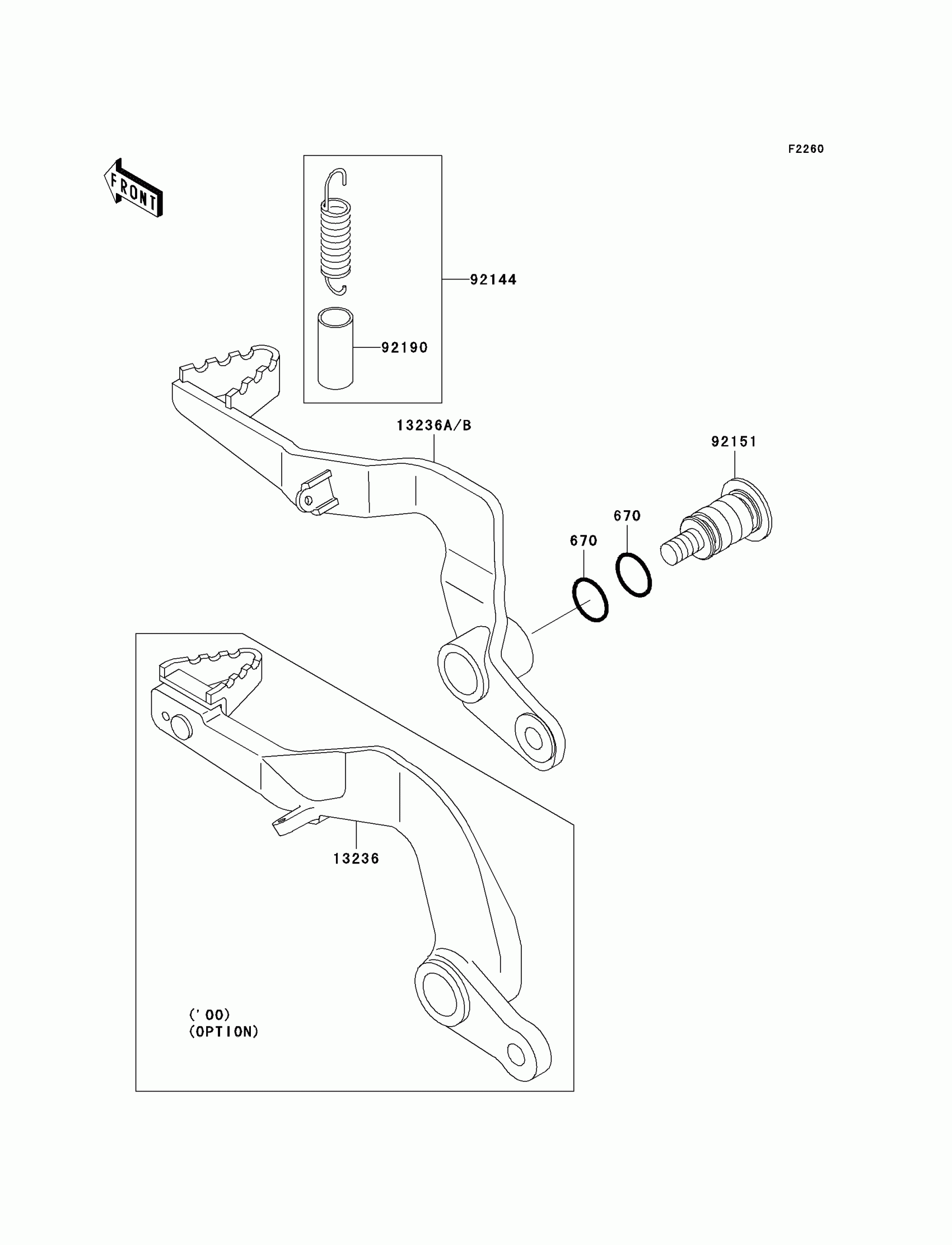

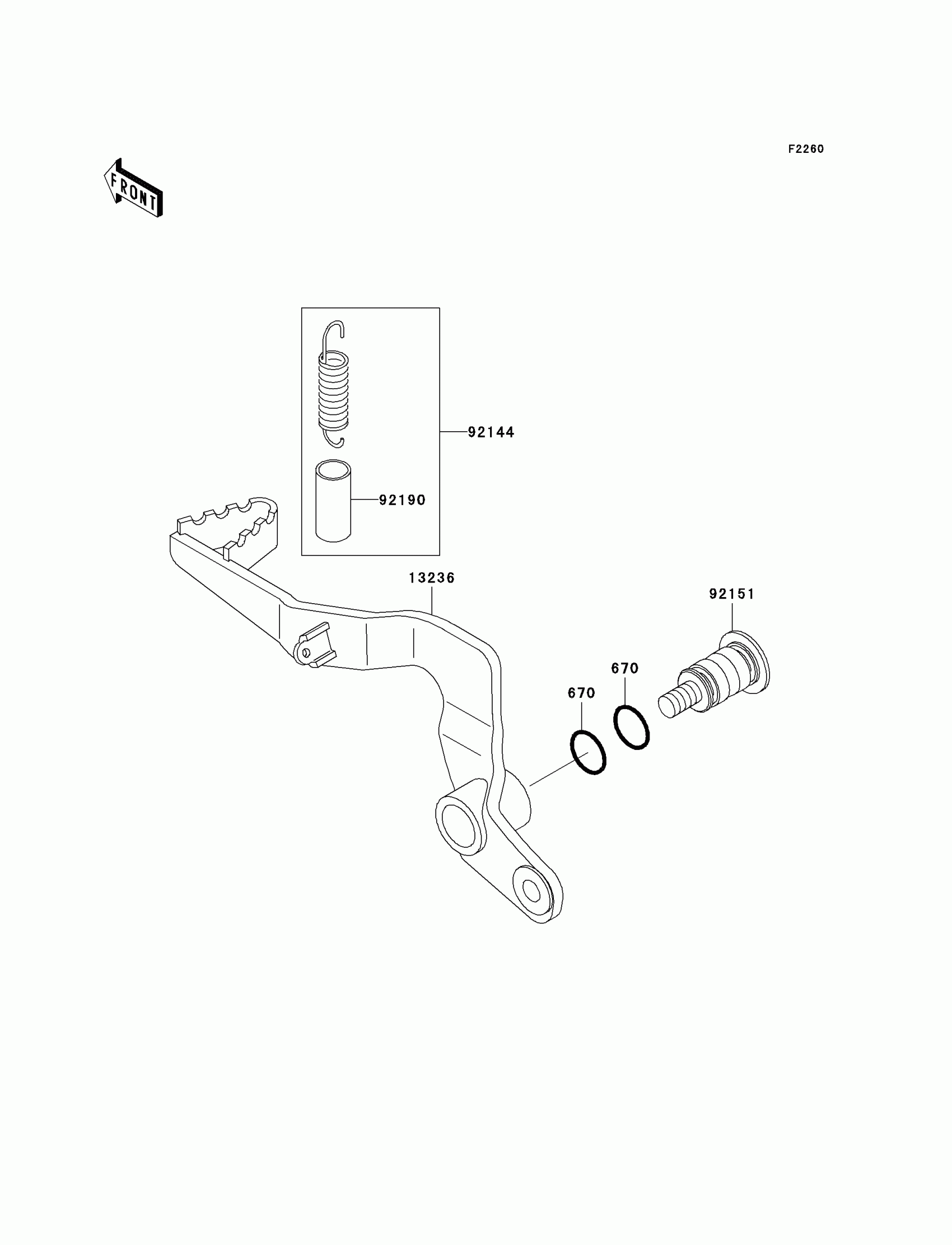

Kawasaki KX65 Brake Pedal Diagram

#

Description

Price

670

O RING,12MM

670B2012

$2.58

13236B

LEVER-COMP,BRAKE PEDAL,STEEL

13236-1369

$47.76

92144

SPRING,BRAKE PEDAL RETURN

92144-1752

$5.78

92151

BOLT,BRAKE PEDAL,8MM

92151-1572

$18.49

92190

TUBE,13X16X25

92190-1488

$3.11
