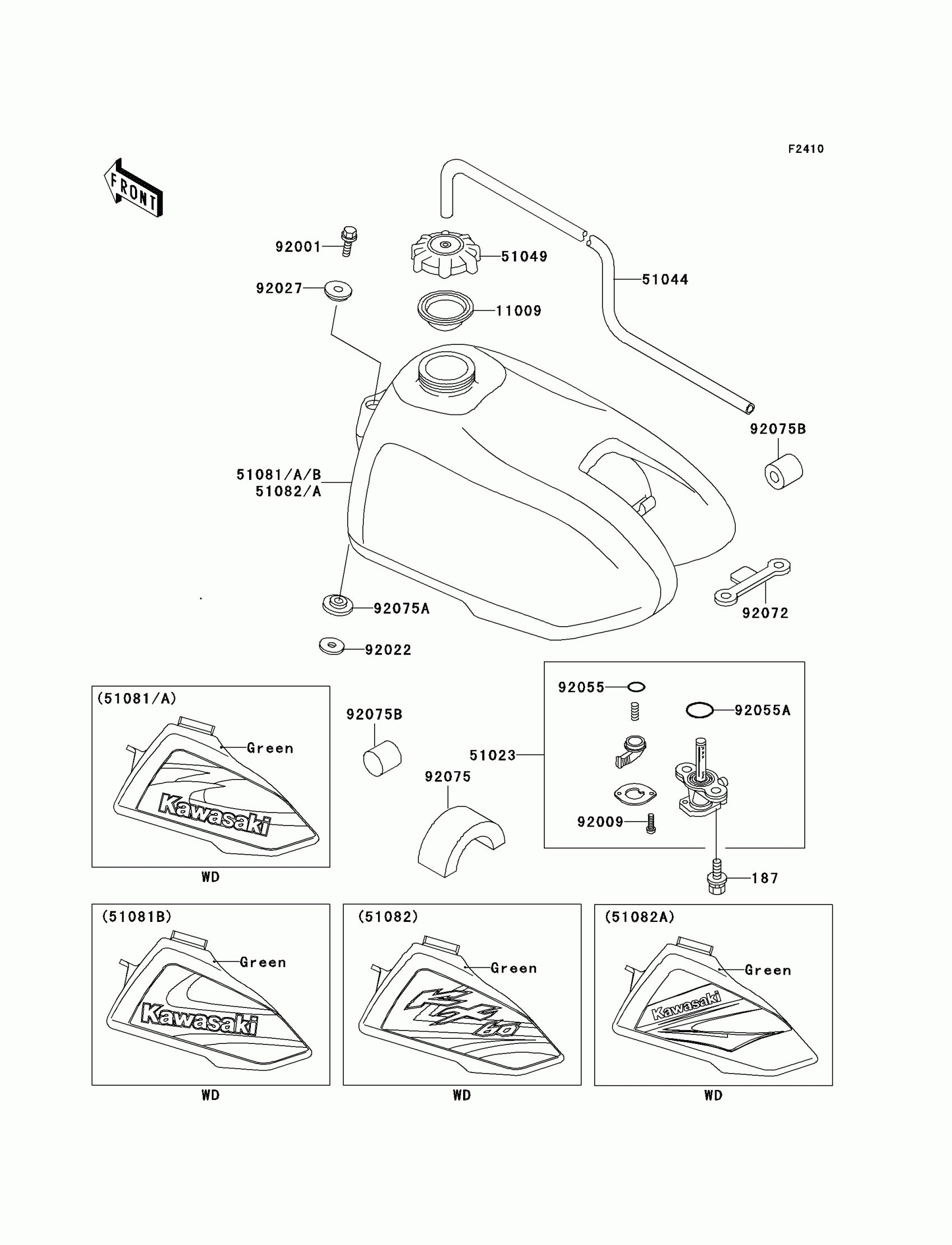

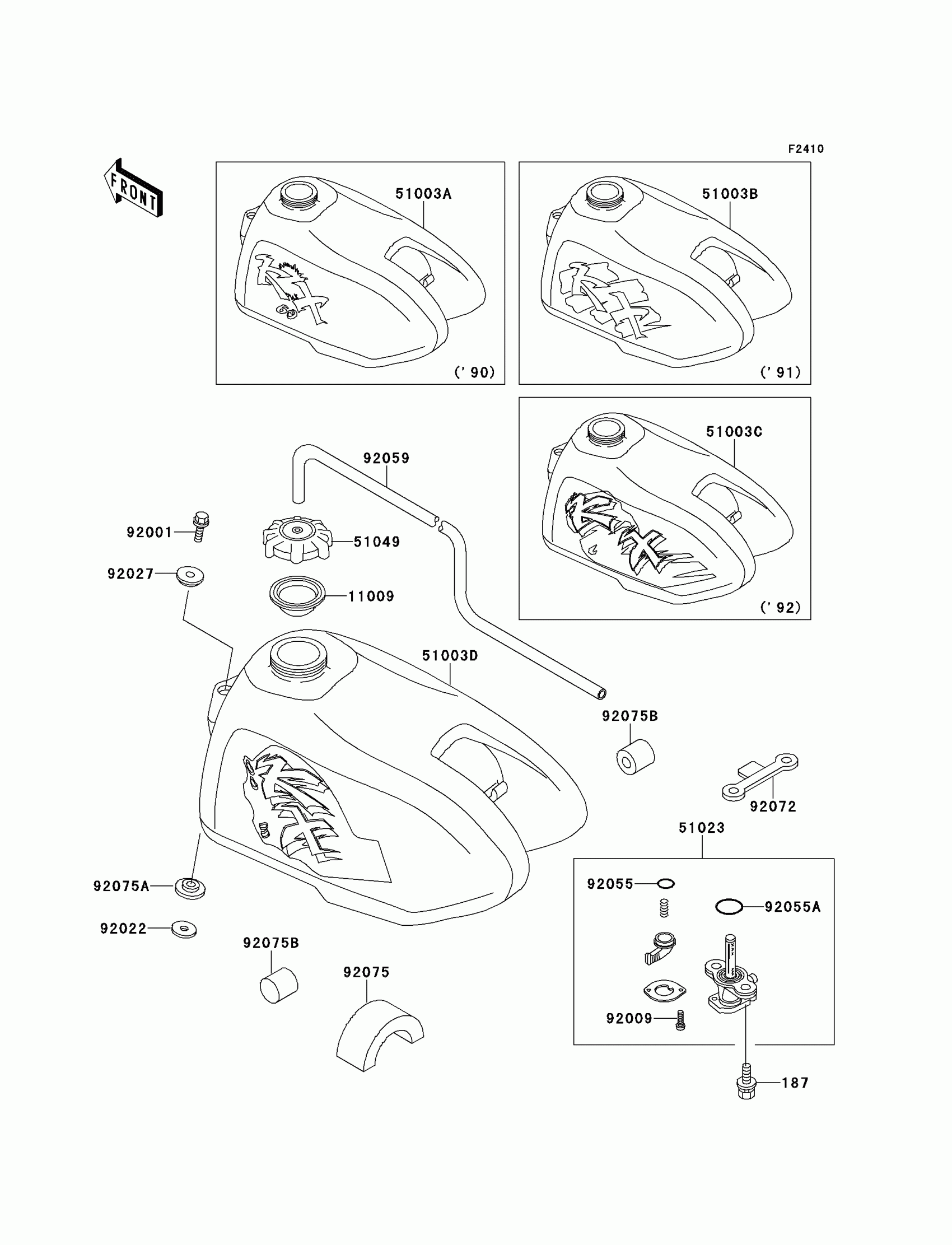

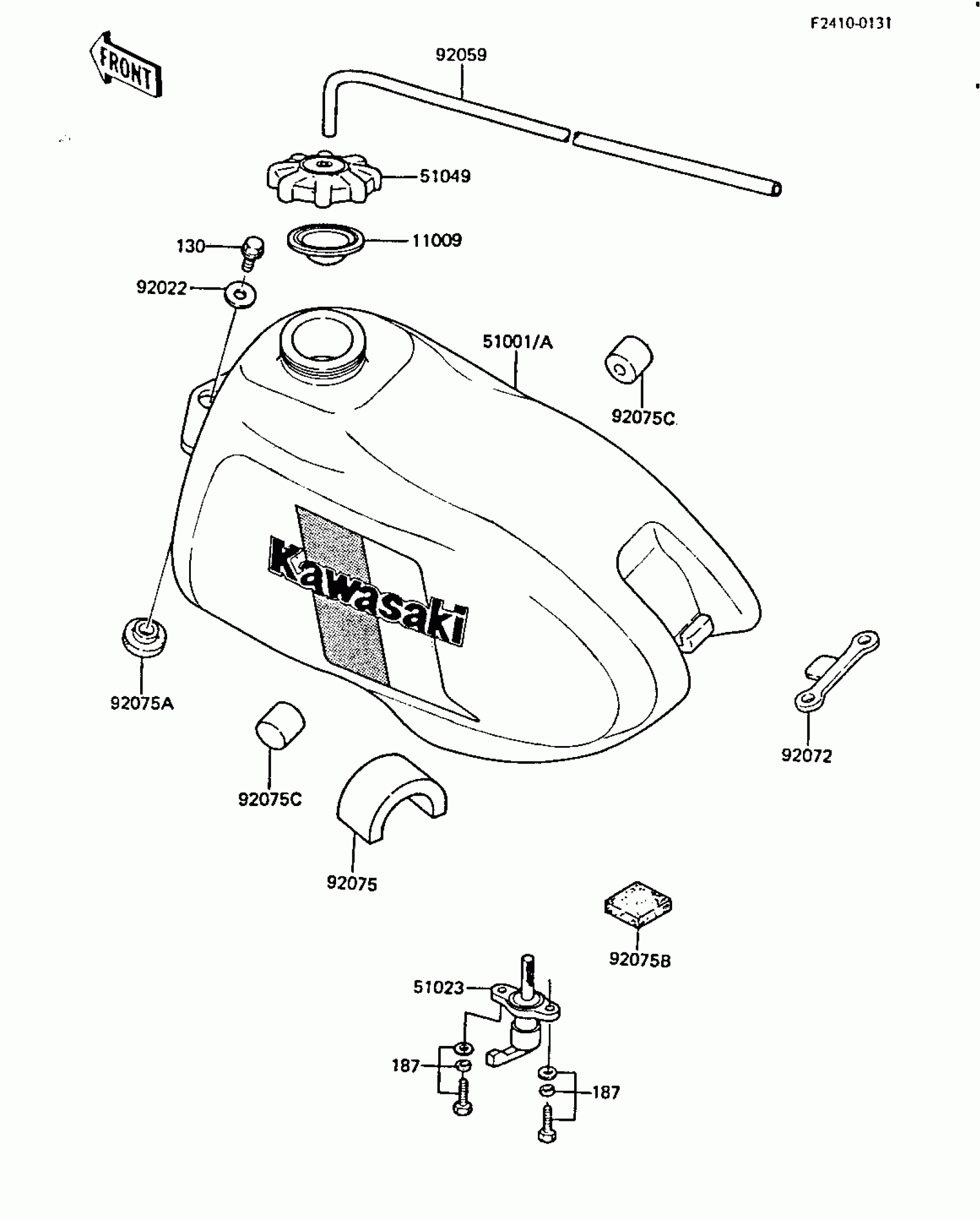

Kawasaki KX60 FUEL TANK Diagram

Description

Price

11009

GASKET,FUEL TANK CAP

11009-1452

$18.25

51001A

TANK-COMP-FUEL,L.GREE

51001-5345-6W

Unavailable

51023

TAP-ASSY,FUEL

51023-1115

Unavailable

51049

CAP-TANK,FUEL

51049-1006

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92059

TUBE,5X9X350

92059-1265

Unavailable

92072

BAND,FUEL TANK

92072-1056

$7.65

92075

DAMPER,FUEL TANK

92075-1382

$25.64

92075A

DAMPER,FUEL TANK,FR

92075-1404

$5.14

92075B

DAMPER,FUEL TANK,RR

92075-1483

$10.73

92075C

DAMPER

92075-243

Unavailable

130

BOLT-FLANGED,6X10

130G0610

Unavailable

187

BOLT-UPSET-WSP

187B0616

Unavailable
