1984 Kawasaki KX60 Frame/frame Fittings Diagram

← All diagrams

Find the part on the Frame/frame Fittings diagram for your 1984 Kawasaki KX60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

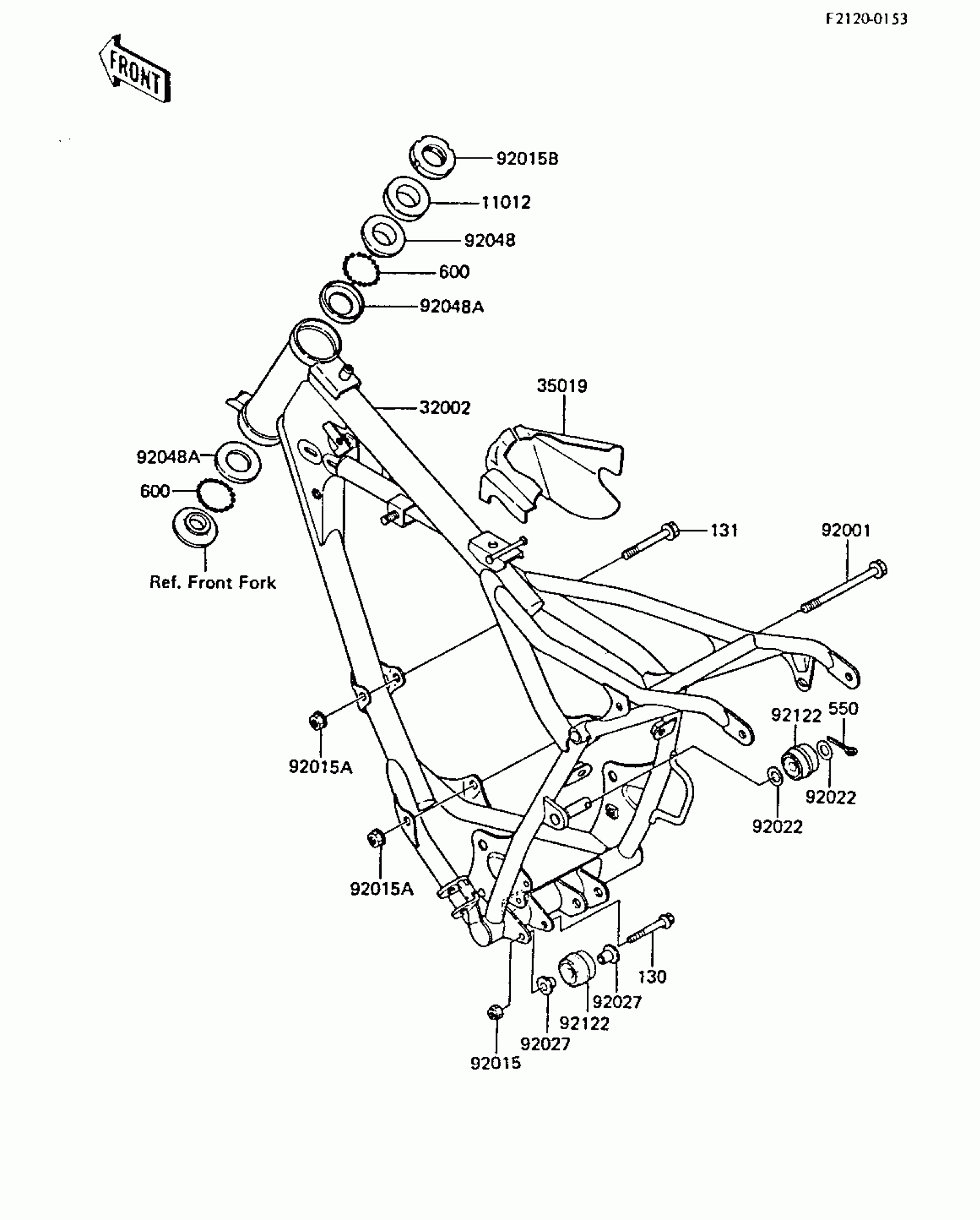

1984 Kawasaki KX60 Frame/frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

46098-018

1
Out of stock

32002

FRAME-COMP

32002-1496

1
Out of stock

35019

FLAP,AIR FILTER CASE

35019-1045

1
Out of stock

92001

BOLT,8X105

92001-1367

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,8MM

92015-1143

1
Out of stock

92015B

NUT,STEERING LOCK,25MM

92015-1222

1
Out of stock

92022

WASHER,10.5X20X1

92022-239

1
Out of stock

92027

COLLAR,6.5X10X14.1

92027-1183

1
Out of stock

92048

RACE,STEERING STEM BEARING

92047-014

1
Out of stock

92048A

RACE,STEERING STEM BEARING

92048-009

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-1030

1
Out of stock

130

BOLT-FLANGED,6X40

130G0640

1
Out of stock

131

BOLT-FLANGED,8X60

131G0860

1
Out of stock

550

PIN-COTTER,2.5X15

550D2515

1
Out of stock

600

BALL-STEEL,3/16

600A0600

1
Out of stock
