1988 Kawasaki KX60 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1988 Kawasaki KX60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

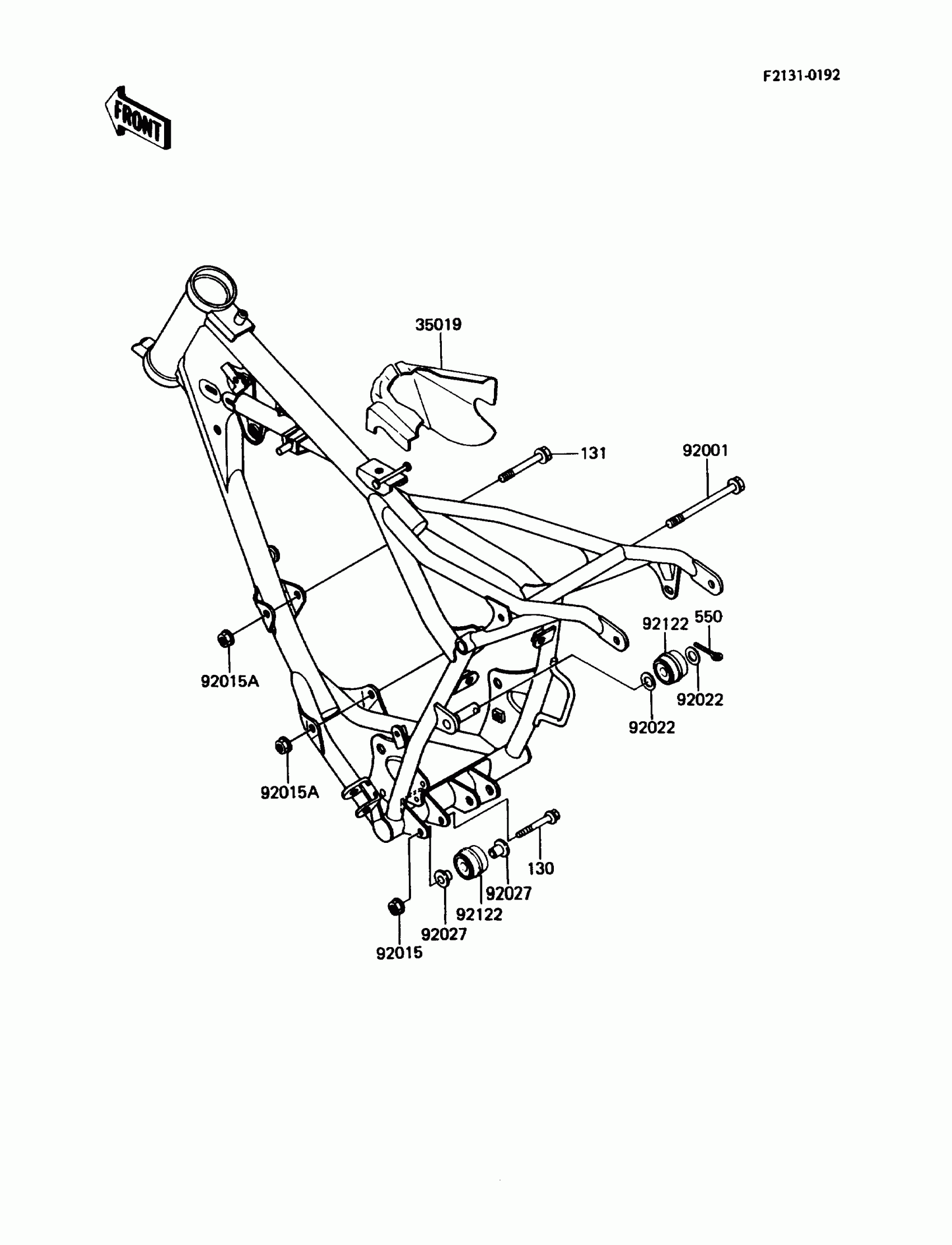

1988 Kawasaki KX60 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92001

BOLT,8X105

92001-1367

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,8MM

92015-1143

1
Out of stock

92022

WASHER,10.5X20X1

92022-239

1
Out of stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92122

ROLLER,CHAIN GUIDE

92122-1030

1

$35.15

In stock

130

BOLT-FLANGED,6X40

130G0640

1
Out of stock

131

BOLT-FLANGED,8X60

130G0860

1
Out of stock

550

1

$0.51

In stock
