Description

Price

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

220

SCREW-PAN-CROS

220B0520

$0.71

220A

SCREW-PAN-CROS,6X75

220B0675

Unavailable

670

O RING,39MM

670B3039

$5.12

11009

GASKET,ELBOW

11009-1952

$4.85

11009A

GASKET,GENERATOR COVER

11009-1974

$17.53

11009B

GASKET,CLUTCH COVER

11009-1976

$23.46

13107

SHAFT,WATER PUMP

13107-1123

$45.84

13227

HOUSING,WATER PUMP

13227-1069

Unavailable

14031

COVER-GENERATOR

14031-1215

Unavailable

14032

COVER-CLUTCH

14032-1246

$302.92

16115

CAP-OIL FILLER

16115-018

$8.38

52005

GAUGE,OIL LEVEL

52005-1055

$11.67

52014

ELBOW

52014-1067

$15.02

59256

IMPELLER,WATER PUMP

59256-1052

Unavailable

92028

BUSHING

92028-1317

Unavailable

92037

CLAMP,TUBE

92037-1236

$10.25

92045

BEARING-BALL

92045-1212

$9.80

92049

SEAL-OIL,SB16244

92049-002

$7.04

92049A

SEAL-OIL,MHSD8X18X10J-1

92049-1366

$14.11

92065

GASKET,10.5X16X1

92065-058

$3.16

92066

PLUG,DRAIN

92066-1241

$5.39

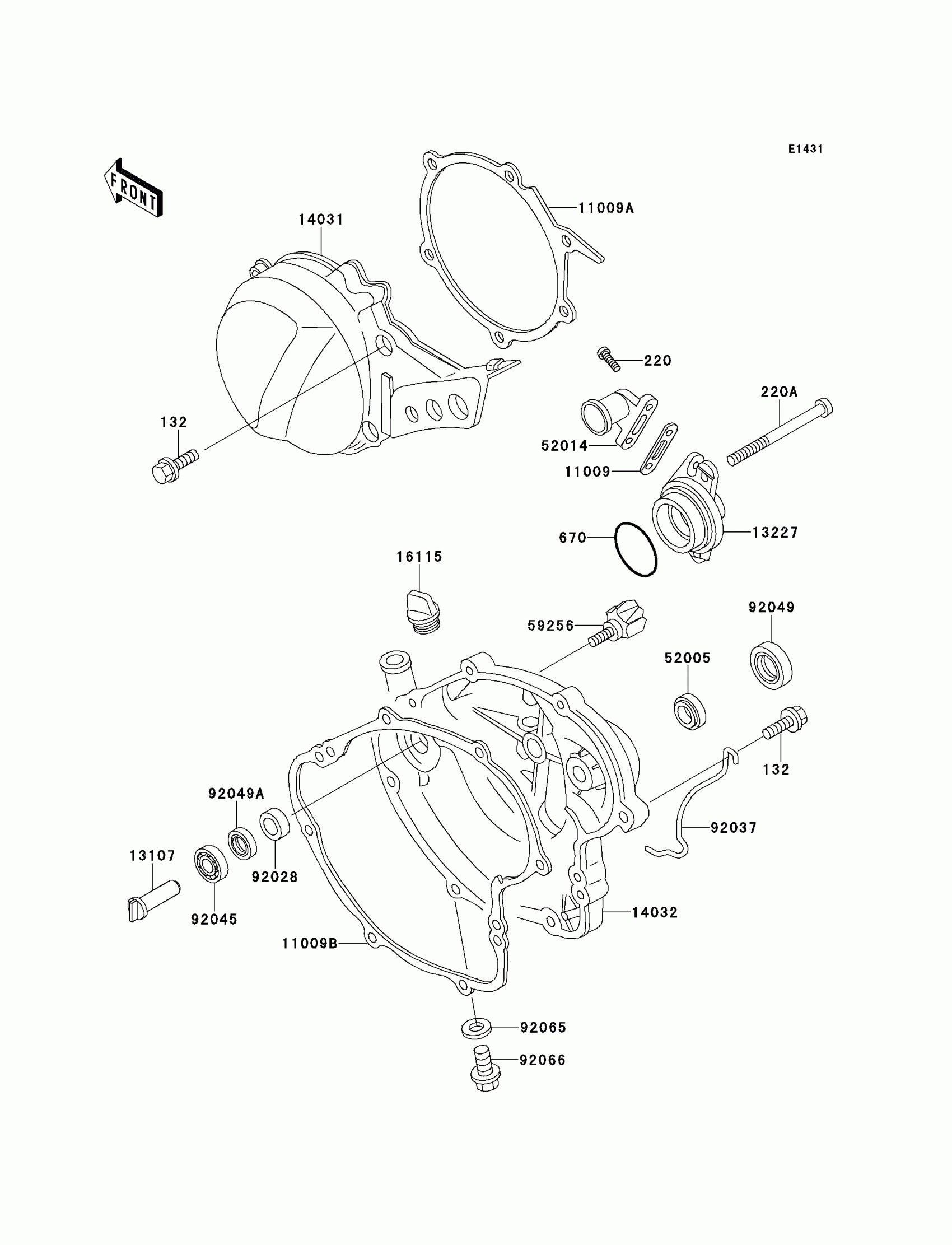

Kawasaki KX60 Engine Cover Diagram

BOLT-FLANGED-SMALL

SCREW-PAN-CROS,6X75

HOUSING,WATER PUMP

COVER-GENERATOR

IMPELLER,WATER PUMP

BUSHING
