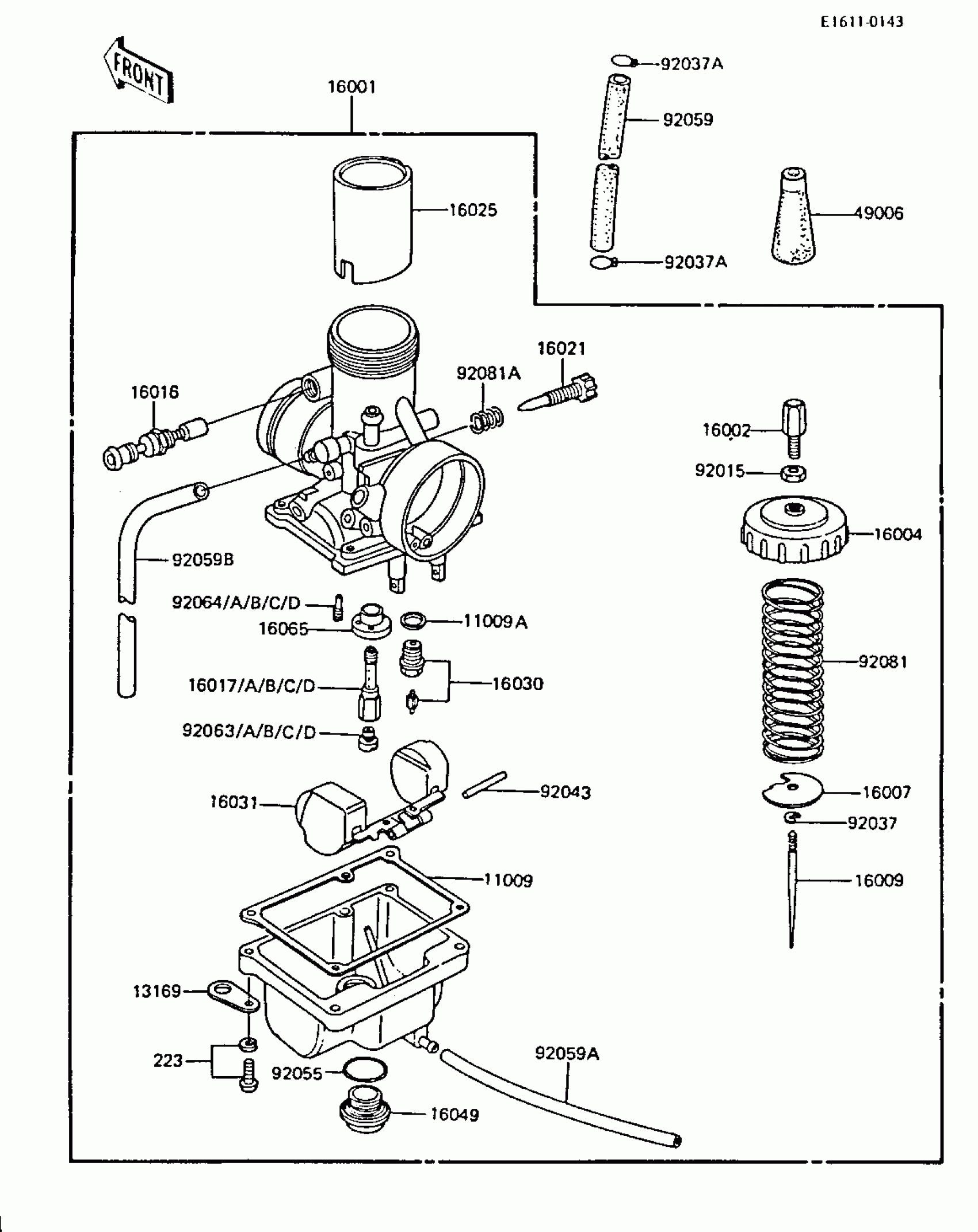

Kawasaki KX60 CARBURETOR (KX60-A2) Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1147

$9.85

11009A

WASHER FLOAT VLV SEAT

16029-004

$3.10

13169

PLATE,TUBE CLAMP

13169-1226

Unavailable

16001

CARBURETOR

16001-1925

$129.05

16002

ADJUSTER-CABLE

16002-017

Unavailable

16004

CAP-CHAMBER

16004-025

$33.92

16007

SEAT-SPRING,THROTTLE VALVE

16007-023

$9.85

16009

NEEDLE-JET,5I14

16009-1220

$40.03

16016

PLUNGER,STARTER

16016-1052

$44.15

16017

JET-NEEDLE,N-8

16017-1215

$52.49

16017A

JET-NEEDLE,O-0

16017-1216

$52.49

16017B

JET-NEEDLE,O-2

16017-1217

$52.49

16017C

JET-NEEDLE,0-4

16017-1218

$31.64

16017D

JET-NEEDLE,0-6

16017-1219

$31.64

16021

SCREW-THROTTLE STOP

16021-1108

Unavailable

16025

VALVE-THROTTLE,CA2.0

16025-1107

$110.74

16030

VALVE-FLOAT,2.5

16030-005

$60.01

16031

FLOAT

16031-1005

$54.64

16049

COVER-MAIN JET

16049-1001

$25.31

16065

HOLDER,JET NEEDLE

16065-1020

$17.34

49006

BOOT,CABLE ADJUSTER

16036-007

$16.68

92015

NUT,ADJUST LOCK

16003-006

$5.84

92037

CLAMP,E-TYPE

16008-010

$8.95

92037A

CLAMP,TUBE

92037-072

$5.74

92043

PIN,FLOAT

16032-003

$5.95

92055

RING-O,MAIN JET COVER

92055-1061

$8.37

92059

TUBE,5.3X10.5X130

92059-1393

Unavailable

92059A

TUBE,3X5X160

92059-1395

$8.97

92059B

TUBE,3X5X270

92059-1396

$8.97

92063

JET-MAIN NO 160A

92063-017

$13.98

92063A

JET-MAIN,#170

92063-019

$13.39

92063B

JET-MAIN,#180

92063-020

$13.39

92063C

JET-MAIN,#190

92063-021

$13.39

92063D

JET-MAIN,#200

92063-022

$13.39

92064

JET-PILOT,#35

92064-1023

$18.64

92064A

JET-PILOT,#30

92064-1030

$18.64

92064B

JET-PILOT,#25

92064-1038

$18.64

92064C

JET-PILOT,#40

92064-1104

$18.64

92064D

JET-PILOT,#45

92064-1105

Unavailable

92081

SPRING,THROTTLE VALVE

16006-023

$14.22

92081A

SPRING,THROTTLE STOP SCREW

16022-005

Unavailable

223

SCREW-PAN-WS-CROS

223B0416

Unavailable
