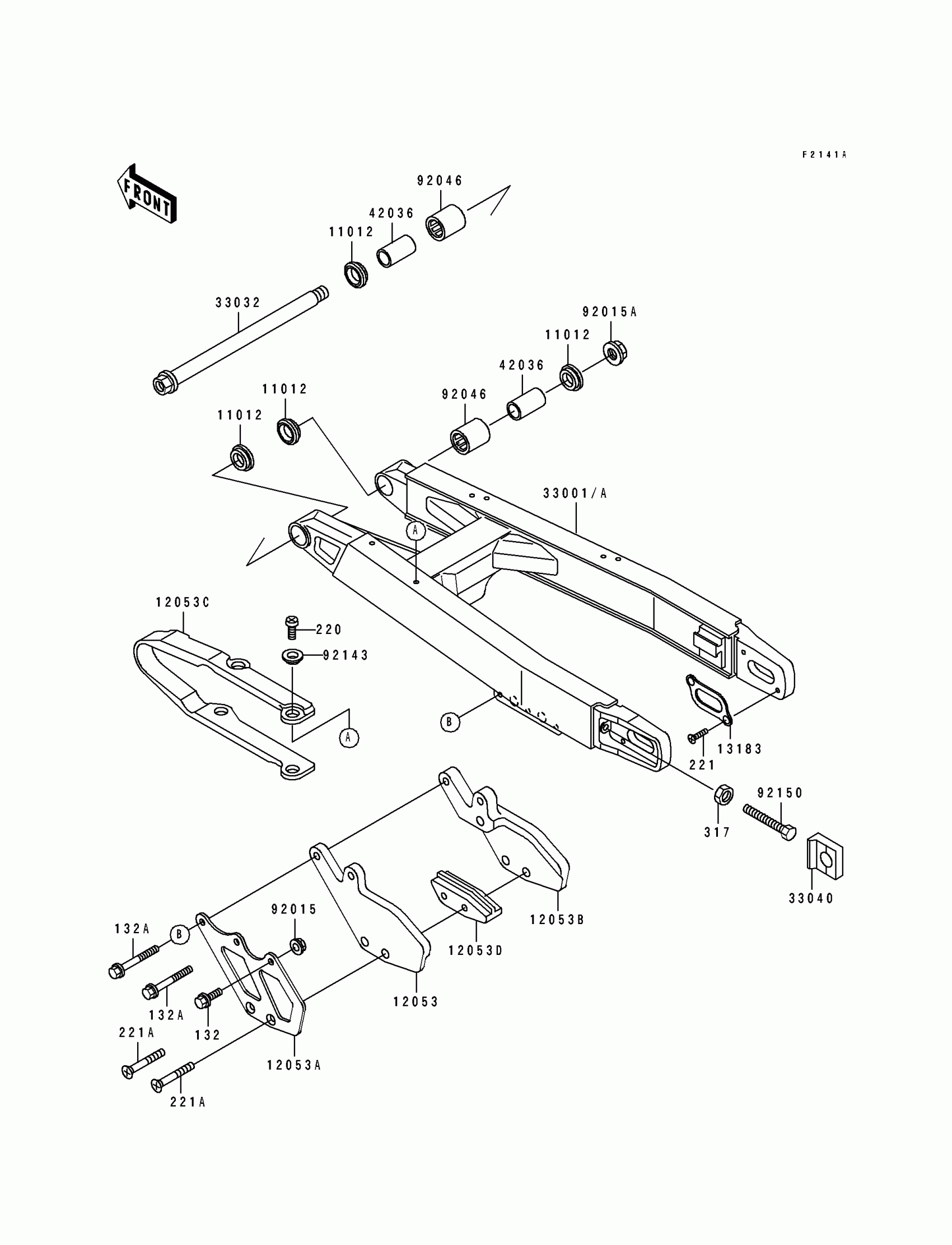

Kawasaki KX500 Swing Arm(KX500-E2/E3) Diagram

#

Description
Price

11012

CAP,SWING ARM

11012-1259

$20.21

12053

GUIDE-CHAIN,RR,INSIDE

12053-1234

$30.26

12053A

GUIDE-CHAIN,RR,OUTSIDE

12053-1235

$36.58

12053B

GUIDE-CHAIN,RR,OUTSIDE

12053-1236

$38.35

12053C

GUIDE-CHAIN,FR

12053-1240

$64.64

12053D

GUIDE-CHAIN,DRIVE,RR,INSIDE

12053-1270

$40.84

13183

PLATE

13183-1546

Unavailable

33001A

ARM-COMP-SWING,SILVER NO.25

33001-1371-CE

$726.83

33032

SHAFT-SWING ARM

33032-1137

$64.64

33040

ADJUSTER-CHAIN

33040-1106

Unavailable

42036

SLEEVE,SWING ARM

42036-1064

$19.97

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,14MM

92015-1407

$7.86

92046

BEARING-NEEDLE

92046-1128

$23.58

92143

COLLAR

92143-1156

$4.93

92150

BOLT,8X55

92150-1385

$5.11

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

132A

BOLT-FLANGED-SMALL,6X35

132G0635

Unavailable

220

SCREW-PAN-CROS,6X8

220B0608

$0.63

221

SCREW-CSK-CROS,5X10

221B0510

Unavailable

221A

SCREW-CSK-CROS,6X45

221B0645

$3.28

317

NUT-HEX-SMALL,8MM

317G0800

Unavailable
