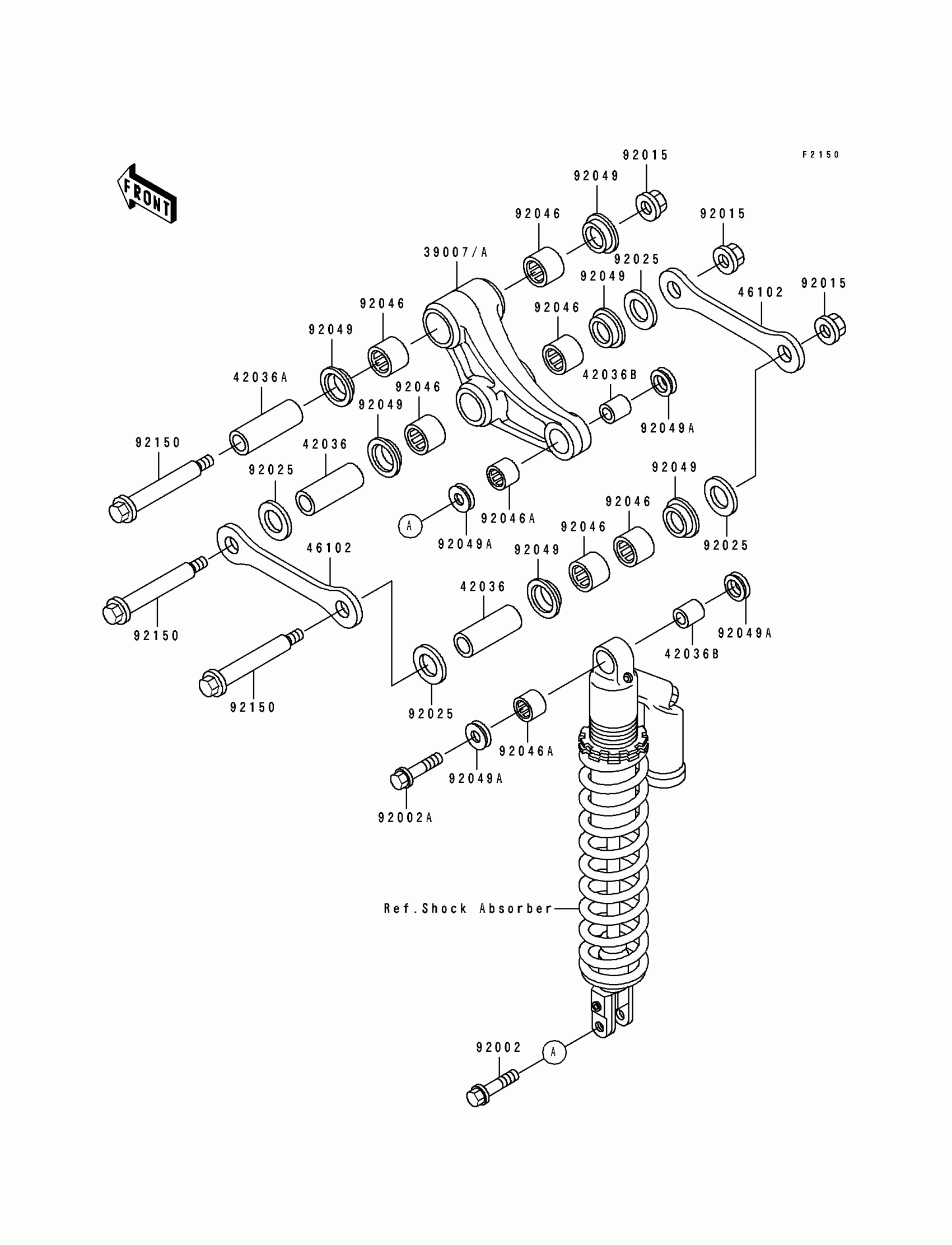

Kawasaki KX500 Suspension Diagram

Description

Price

39007A

ARM-SUSP,UNI TRAK

39007-1186

Unavailable

42036

SLEEVE,15X22X57

42036-1245

$19.97

42036A

SLEEVE,15X22X63

42036-1246

$24.44

42036B

SLEEVE,10X16X19

42036-1248

$7.86

46102

ROD,SUSPENSION

46102-1253

Unavailable

92002

BOLT,10X40

92002-1675

$9.78

92002A

BOLT,FLANGED,10X53

92002-1936

$6.82

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$7.04

92025

SHIM,15.3X27.5X0.6

92025-1135

$3.48

92046

BEARING-NEEDLE,F-2220

92046-1162

$19.68

92046A

BEARING-NEEDLE,16BM2212

92046-1192

$14.31

92049

SEAL-OIL,MHA22 28 5.7F

92049-1254

$7.38

92049A

SEAL-OIL

92049-1330

$9.74

92150

BOLT,ARM,12MM

92150-1195

$23.97
