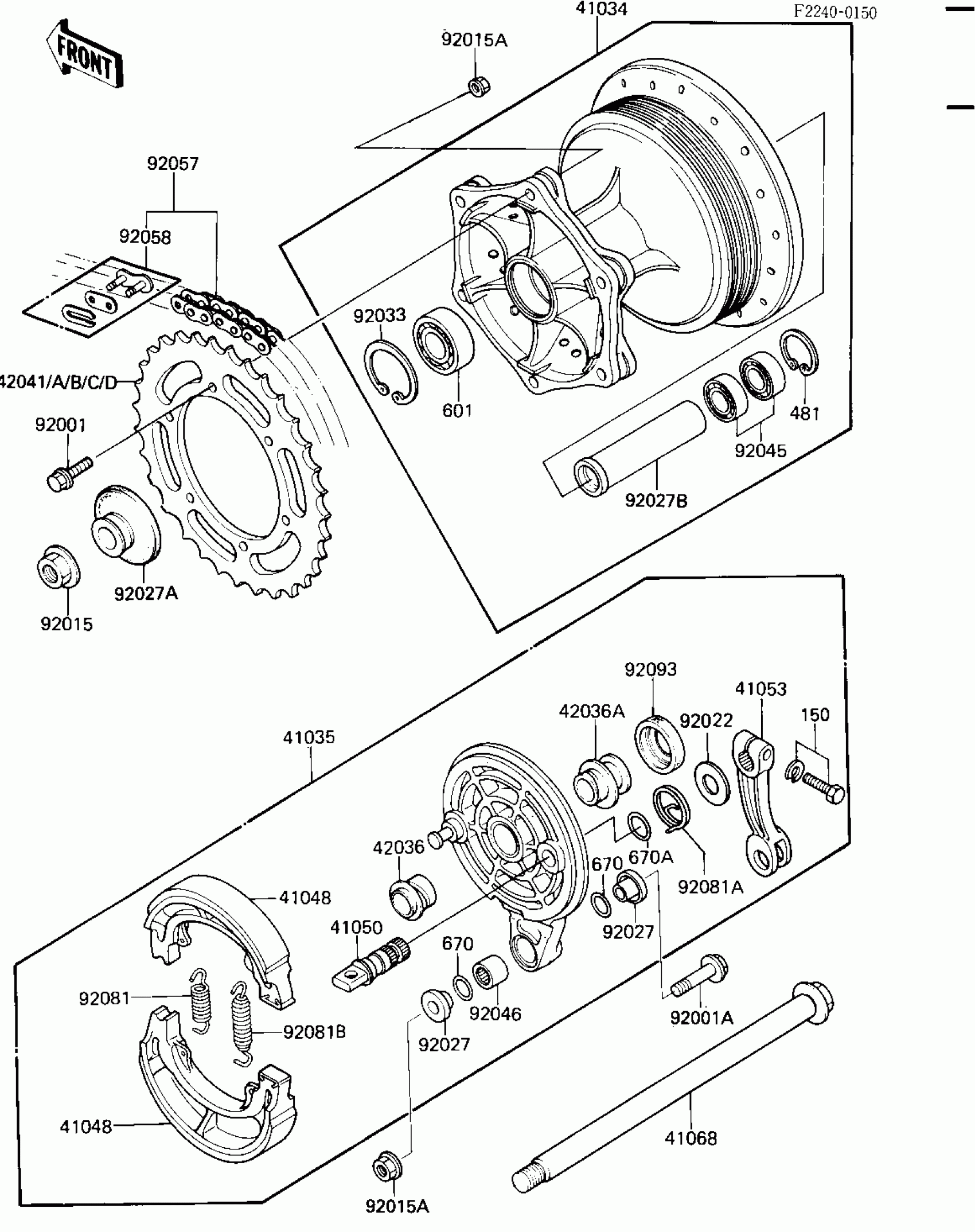

Kawasaki KX500 REAR HUB/BRAKE/CHAIN ('84 A2) Diagram

#

Description
Price

41034

DRUM-ASSY,RR

41034-1102

$427.80

41035

PANEL-ASSY-BRAKE,RR

41035-1152

$446.05

41048

SHOE,BRAKE

42019-010

$34.77

41050

CAM-BRAKE,RR

41050-1027

Unavailable

41053

LEVER-BRAKE CAM.RR

41053-1034

Unavailable

41068

AXLE,RR,L=283

41068-1166

$151.82

42036

SLEEVE

42036-1052

Unavailable

42036A

SLEEVE,RH.L=27.5

42036-1106

$96.50

42041

REAR SPROCKET 46T

42041-1036

$143.99

42041A

REAR SPROCKET,44T

42041-1037

$121.82

42041B

SPROCKET-HUB,48T

42041-1125

$136.80

42041C

SPROCKET-HUB,45T

42041-1179

$88.90

42041D

SPROCKET-HUB,47T

42041-1180

$117.45

92001

BOLT-HEX HEAD,8X28

92001-104

Unavailable

92001A

BOLT

92001-1578

$6.81

92015

NUT,16MM

92015-1015

Unavailable

92015A

NUT,8MM

92015-1143

$0.66

92022

WASHER,14X30X0.8

92022-1402

$4.41

92027

COLLAR,L=11.5

92027-1040

Unavailable

92027A

COLLAR,L=23.5

92027-1543

$47.22

92027B

COLLAR,L=99

92027-1748

$84.10

92033

RING-SNAP,40MM

92033-1040

$4.67

92045

BEARING-BALL,#6003UC3

601B6003U

$20.98

92046

BEARING-NEEDLE,HK1216LL

92046-1009

$17.71

92057

CHAIN,DRIVE,DID520DSX112L

92057-1073

Unavailable

92058

JOINT-CHAIN,DRIVE

92058-1013

Unavailable

92081

SPRING,BRAKE SHOE

92081-1766

$6.39

92081A

SPRING,BRAKE LEVER

92081-1520

$5.49

92081B

SPRING,BRAKE SHOE

92081-1550

$9.20

92093

OIL SEAL

92093-1004

Unavailable

150

BOLT-WS

150G0622

$2.08

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.64

601

BEARING-BALL,#6203LUC3/2A

601B6203U

$34.89

670

O RING,11MM

670B2011

Unavailable

670A

O RING,15MM

670B2015

$1.25
