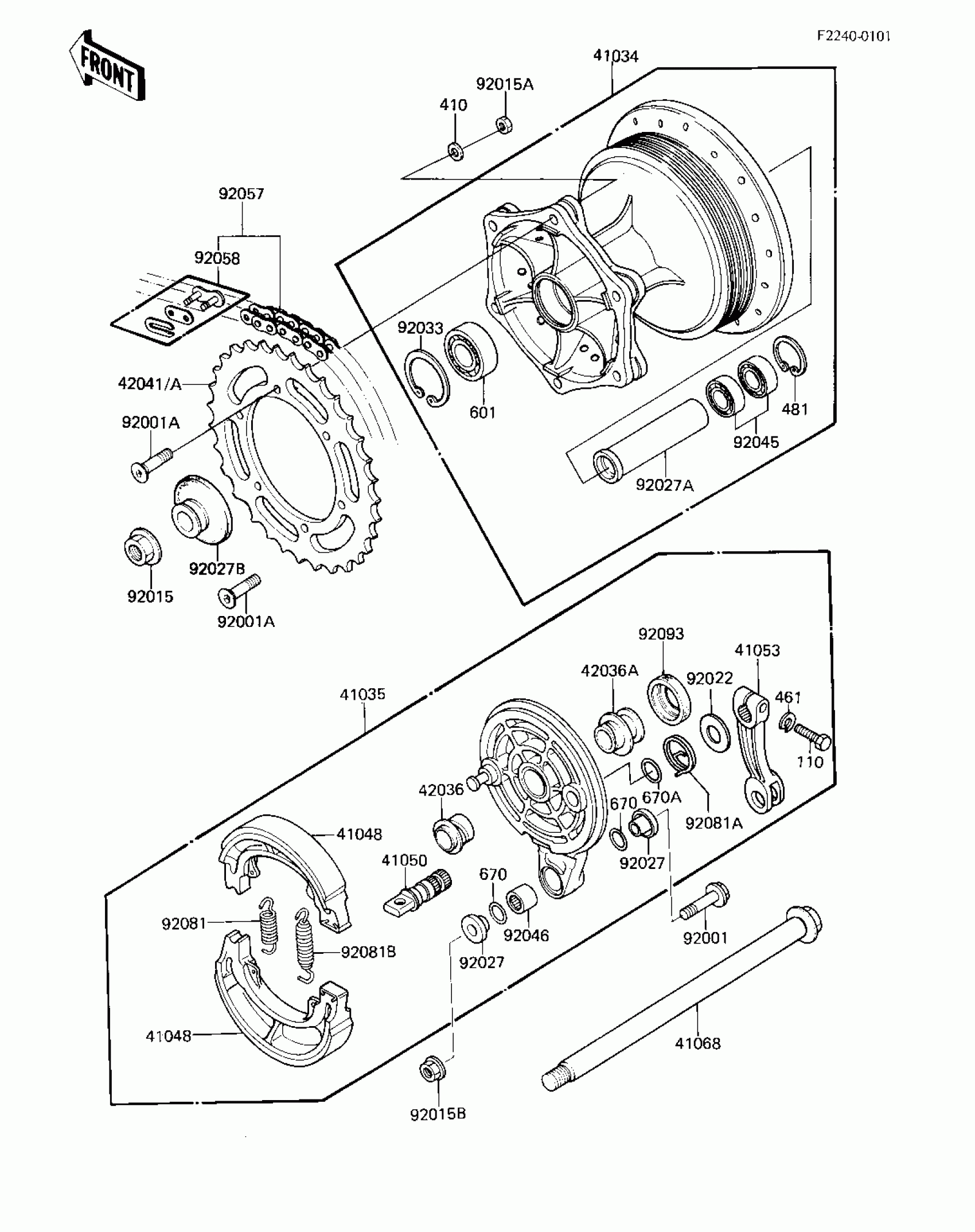

Kawasaki KX500 REAR HUB/BRAKE/CHAIN ('83 A1) Diagram

#

Description
Price

41034

DRUM-ASSY,REAR BRAKE

41034-5005

Unavailable

41035

PANEL-ASSY-BRAKE,RR

41035-1107

Unavailable

41048

SHOE,BRAKE

42019-010

$34.77

41050

CAM-BRAKE,RR

41050-1027

Unavailable

41053

LEVER-BRAKE CAM.RR

41053-1034

Unavailable

41068

AXLE,RR,L=264

41068-1076

$70.97

42036

SLEEVE

42036-1052

Unavailable

42036A

SLEEVE

42036-1053

$46.61

42041

SPROCKET-HUB,43T

42041-1127

$88.90

42041A

SPROCKET-HUB,45T,AL

42041-1154

Unavailable

92001

BOLT,FLANGED,8X38

92001-1178

$10.64

92001A

BOLT

92001-1521

$11.19

92015

NUT,16MM

92015-1015

Unavailable

92015A

NUT,8MM

92015-1134

$7.98

92015B

NUT,8MM

92015-1143

$0.66

92022

WASHER,14X30X0.8

92022-1402

$4.41

92027

COLLAR,L=11.5

92027-1040

Unavailable

92027A

COLLAR

92027-1384

$54.75

92027B

COLLAR

92027-1385

Unavailable

92033

RING-SNAP,40MM

92033-1040

$4.67

92045

BEARING-BALL,#6003UC3

601B6003U

$20.98

92046

BEARING-NEEDLE,HK1216LL

92046-1009

$17.71

92057

CHAIN,DRIVE,DID520DSX112L

92057-1073

Unavailable

92058

JOINT-CHAIN,DRIVE

92058-1013

Unavailable

92081

SPRING,BRAKE SHOE

92081-1766

$6.39

92081A

SPRING,BRAKE LEVER

92081-1520

$5.49

92081B

SPRING,BRAKE SHOE

92081-1550

$9.20

92093

OIL SEAL

92093-1004

Unavailable

110

BOLT-UPSET

112G0622

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.64

601

BEARING-BALL,#6203LUC3/2A

601B6203U

$34.89

670

O RING,11MM

670B2011

Unavailable

670A

O RING,15MM

670B2015

$1.25
