Description

Price

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

11009

GASKET,DRAIN BOLT

11009-1152

$7.44

14037

SCREEN,J.S.VIOLET

14037-1099-RE

Unavailable

39061

RADIATOR-ASSY

39061-1112

$444.47

39061A

RADIATOR-ASSY

39061-1113

$444.47

39062

HOSE-COOLING,RADIATOR,LH

39062-1138

Unavailable

39062A

HOSE-COOLING,RADIATOR,RH-PUMP

39062-1209

Unavailable

39062B

HOSE-COOLING,RADIATOR LH-RH

39062-1274

$24.03

49085

CAP-ASSY-PRESSURE,P=1.6

49085-1059

$47.87

49085A

CAP-ASSY-PRESSURE

49085-1066

$33.98

49089

SHROUD-ENGINE,LH,J.S.VIOLET

49089-1087-RE

Unavailable

49089A

SHROUD-ENGINE,RH,J.S.VIOLET

49089-1088-RE

Unavailable

92002

BOLT,RADIATOR DRAIN

92002-1682

$19.01

92015

NUT

92015-1487

$3.80

92027

COLLAR

92027-194

$4.37

92037

CLAMP,COOLING HOSE

92037-1589

$14.60

92059

TUBE,5X9X800

92059-1383

$7.65

92075

DAMPER RUBBER,RR FENR

92075-209

$3.72

92150

BOLT,6X14

92150-1340

$4.02

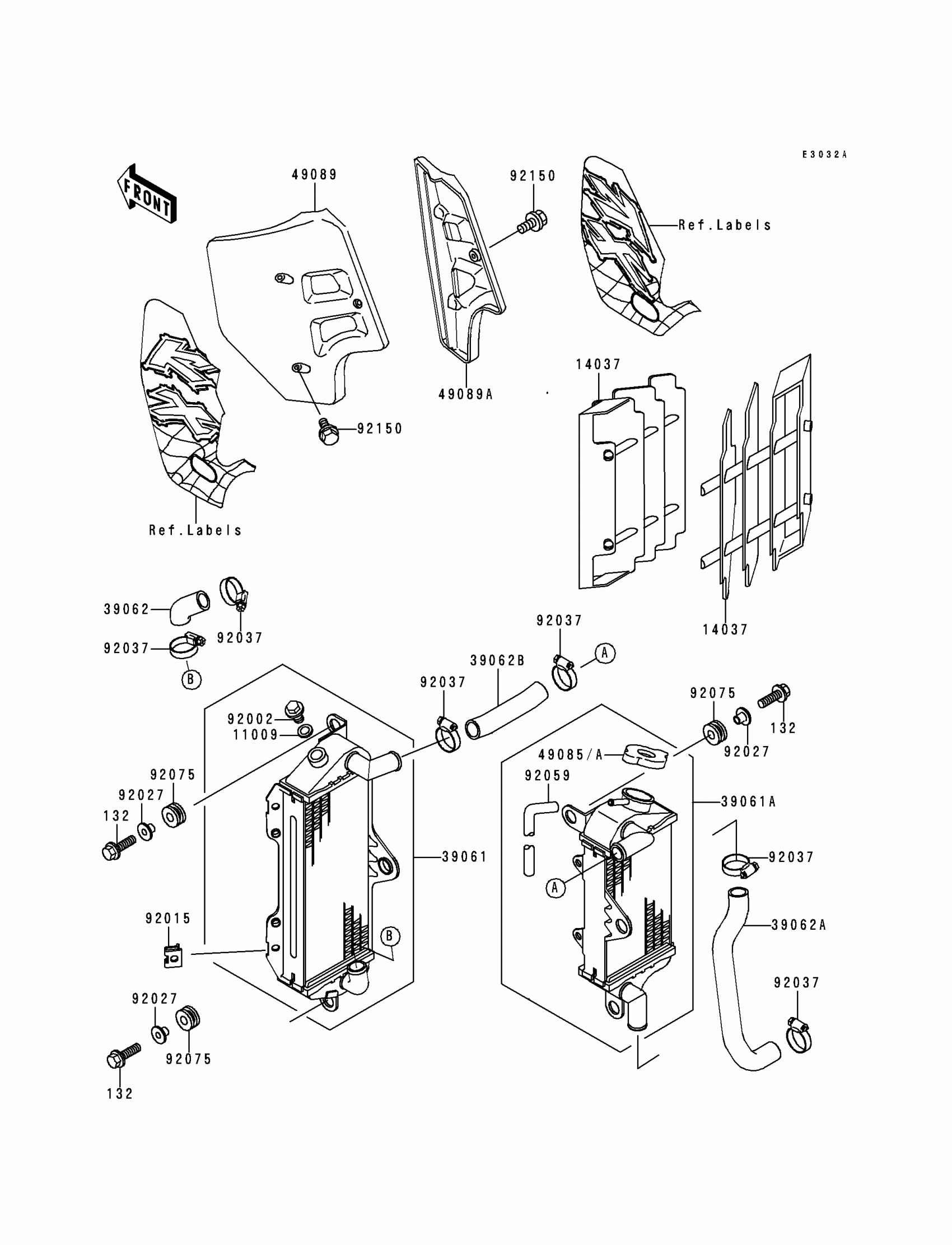

Kawasaki KX500 Radiator(KX500-E8) Diagram
