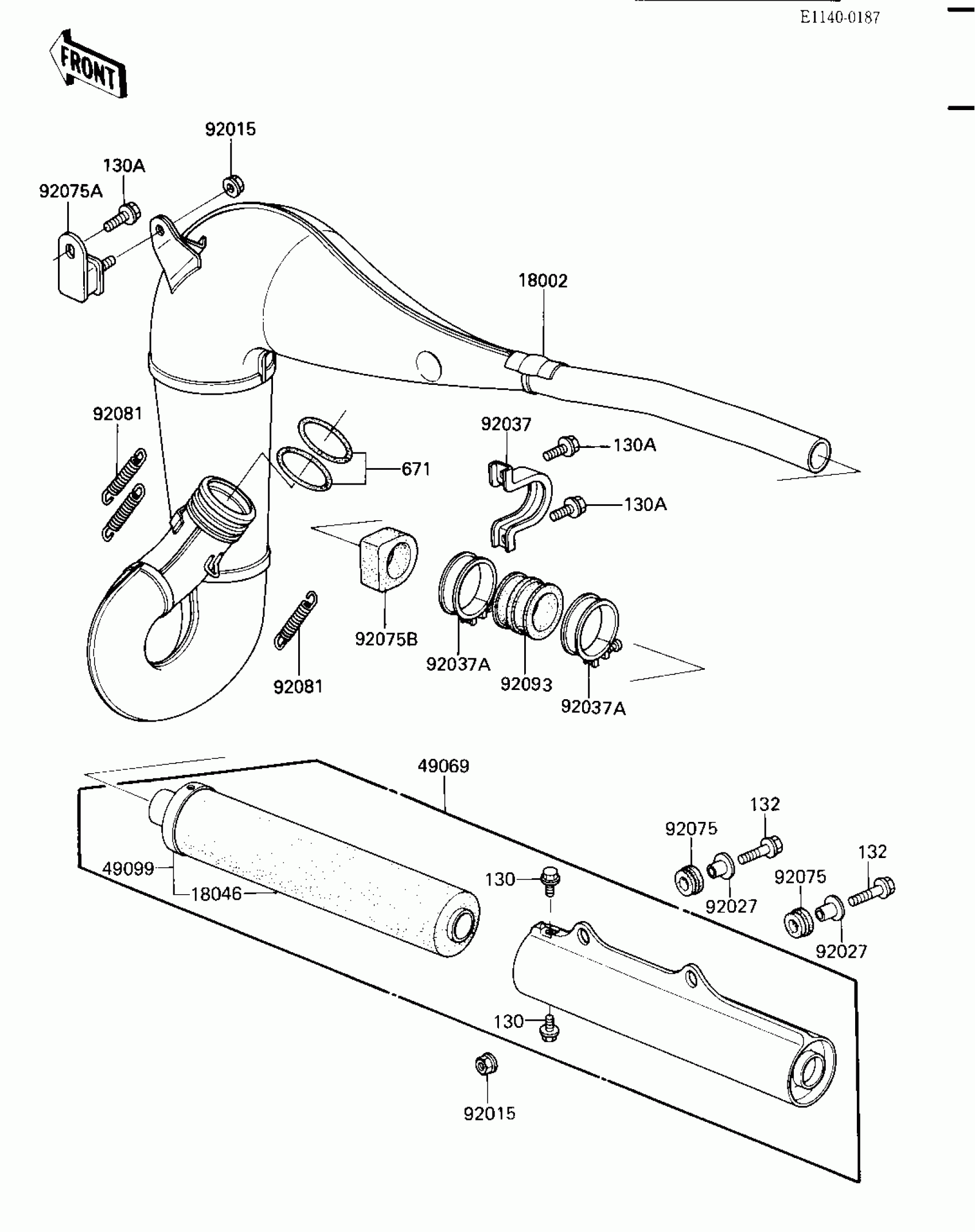

Kawasaki KX500 MUFFLER ('84 A2) Diagram

Description

Price

18002

BODY-COMP-MUFFLER

18002-1427

Unavailable

18046

WOOL,MUFFLER BAFFLE P

18046-1017

Unavailable

49069

MUFFLER-ASSY

49069-1069

Unavailable

49009

BAFFLE-PIPE MUFFLER

49099-1201

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92027

COLLAR

92027-194

$4.37

92037

CLAMP,MUFFLER

92037-1494

$7.93

92037A

CLAMP

92037-177

Unavailable

92075

DAMPER,RUBBER

92075-1123

$3.97

92075A

DAMPER,MUFFLER

92075-1891

$29.76

92075B

DAMPER,MUFFLER

92075-1588

Unavailable

92081

SPRING-CONNECTOR

18071-003

$9.11

92093

SEAL,MUFFLER

92093-1014

Unavailable

130

BOLT-FLANGED,5X8

130G0508

Unavailable

130A

BOLT-FLANGED,6X12

130G0612

Unavailable

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

671

O RING,50MM

671E2550

$12.13
