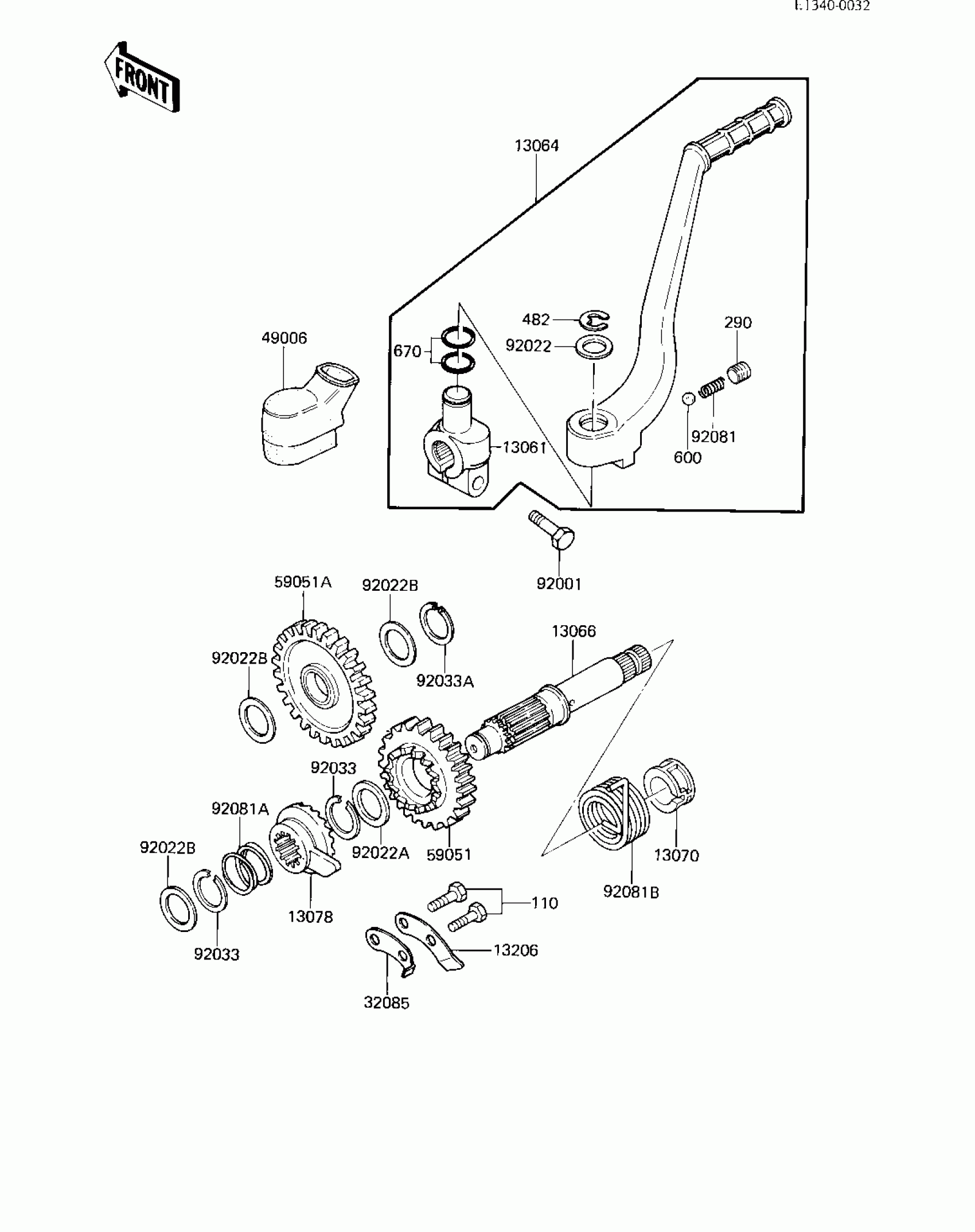

Kawasaki KX500 KICKSTARTER MECHANISM ('83 A1) Diagram

Description

Price

13061

BOSS,KICKSTARTER

13061-1007

Unavailable

13064

PEDAL ASSY,KICK

13064-5003

Unavailable

13066

SHAFT-KICK

13066-1023

Unavailable

13070

GUIDE,KICK SPRING

13070-011

$9.49

13078

RATCHET

13078-007

$77.13

13206

GUIDE-KICK

13206-1003

Unavailable

32085

STOPPER,KICKSTARTER

13072-014

Unavailable

49006

BOOT,KICKSTARTER

49006-1006

Unavailable

59051

GEAR-SPUR,KICKSTARTER

59051-1042

$113.47

59051A

GEAR-SPUR,IDLE,27T

59051-1107

$169.82

92001

BOLT,8X28

92001-1042

Unavailable

92022

WASHER,15.2X20X1

92022-1019

$4.61

92022A

WASHER,25.3X30X0.5

92022-159

$8.37

92022B

WASHER,20.5X25.5X0.5

92022-252

$4.93

92033

RING-SNAP,24MM

92033-026

$6.98

92033A

RING-SNAP,18MM

92033-029

$7.79

92081

SPRING,KICK PEDAL

92081-020

$3.39

92081A

SPRING

92081-097

$11.29

92081B

SPRING,KICKSTARTER

92082-003

$29.01

110

BOLT-UPSET

112G0618

Unavailable

290

SCREW-SET-SOCKET,8X8

290Q0808

$4.25

482

CIR CLIP

482K0100

$0.69

600

BALL-STEEL,1/4

600A0800

$0.67

670

O RING,15MM

670B2015

$1.25
