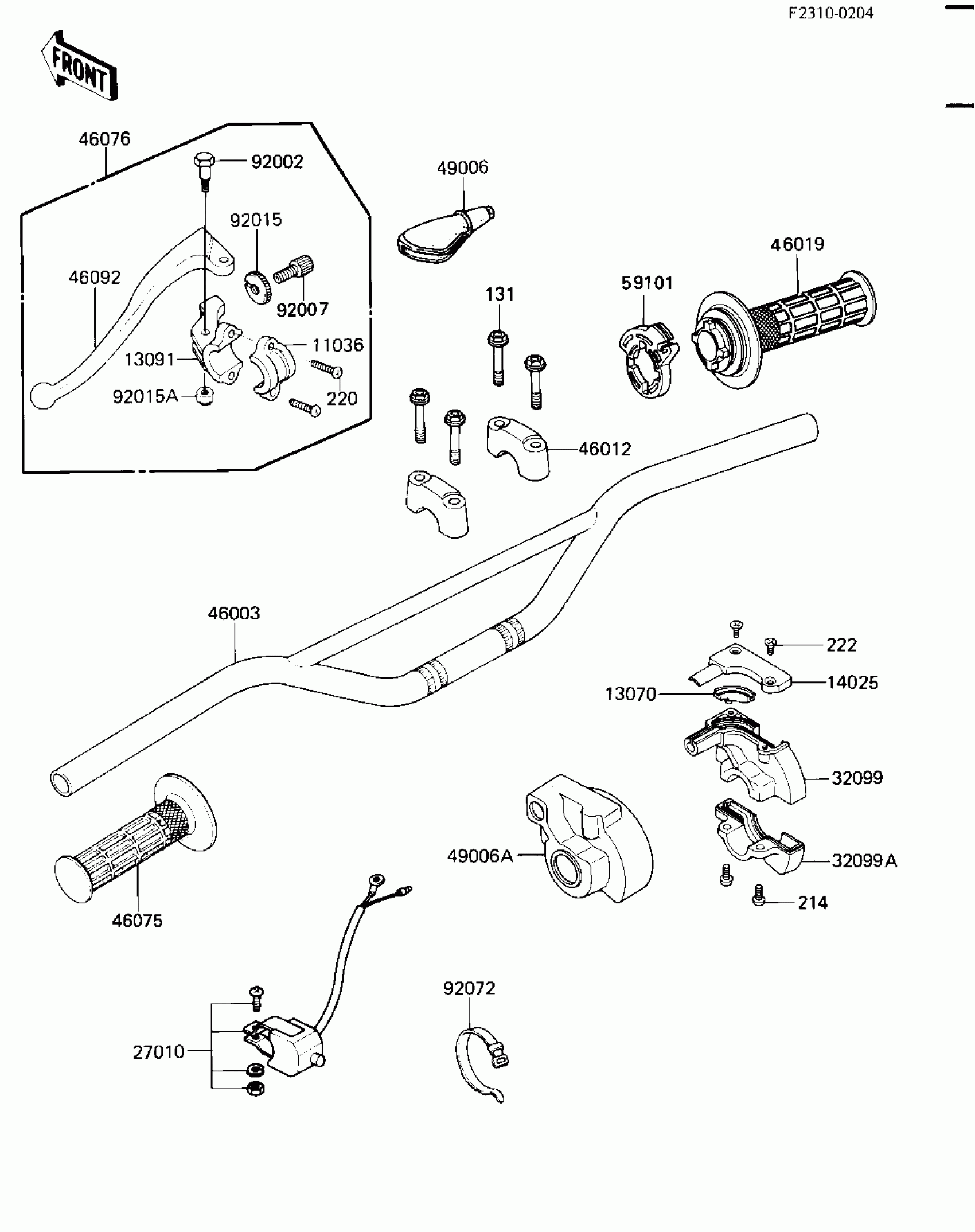

Kawasaki KX500 HANDLEBAR ('84 A2) Diagram

#

Description
Price

11036

BRACKET-A,LEVER HOLDER

11036-1297

Unavailable

13070

GUIDE,THROTTLE

13070-1074

Unavailable

13091

HOLDER,CLUTCH LEVER

13091-1131

$47.82

14025

COVER,THROTTLE CASE UPP

14025-1646

$7.43

27010

SWITCH,ENGINE STOP

27010-1161

$50.69

32099

CASE,THROTTLE UPP

32099-1036

$32.37

32099A

CASE,THROTTLE LWR

32099-1044

Unavailable

46003

HANDLE

46003-1119

Unavailable

46012

HOLDER-HANDLE,UPP

46012-008

$34.49

46019

GRIP-ASSY,THROTTLE

46019-1054

$32.66

46075

GRIP,LH

46075-1024

$23.37

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1118

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-1110

$23.72

49006

BOOT,LEVER HOLDER

49006-1017

$14.71

49006A

BOOT,THROTTLE CASE

49006-1097

$14.13

59101

REEL,THROTTLE

59101-1110

$10.83

92002

BOLT,LEVER SET

92002-1150

$7.49

92007

SCREW,CABLE ADJUST

46055-010

$29.42

92015

NUT,CABLE ADJUST

46056-006

$8.71

92015A

NUT,LOCK,6MM

92019-008

$3.36

92072

BAND,L=123

92072-030

$3.97

131

BOLT-FLANGED

131P0835

Unavailable

214

SCREW-PAN-CROS,5X18

220C0518

Unavailable

220

SCREW-PAN-CROS

220C0514

$1.54

222

SCREW-CSK-RD-CROS,4X12

222E0412

$2.15
