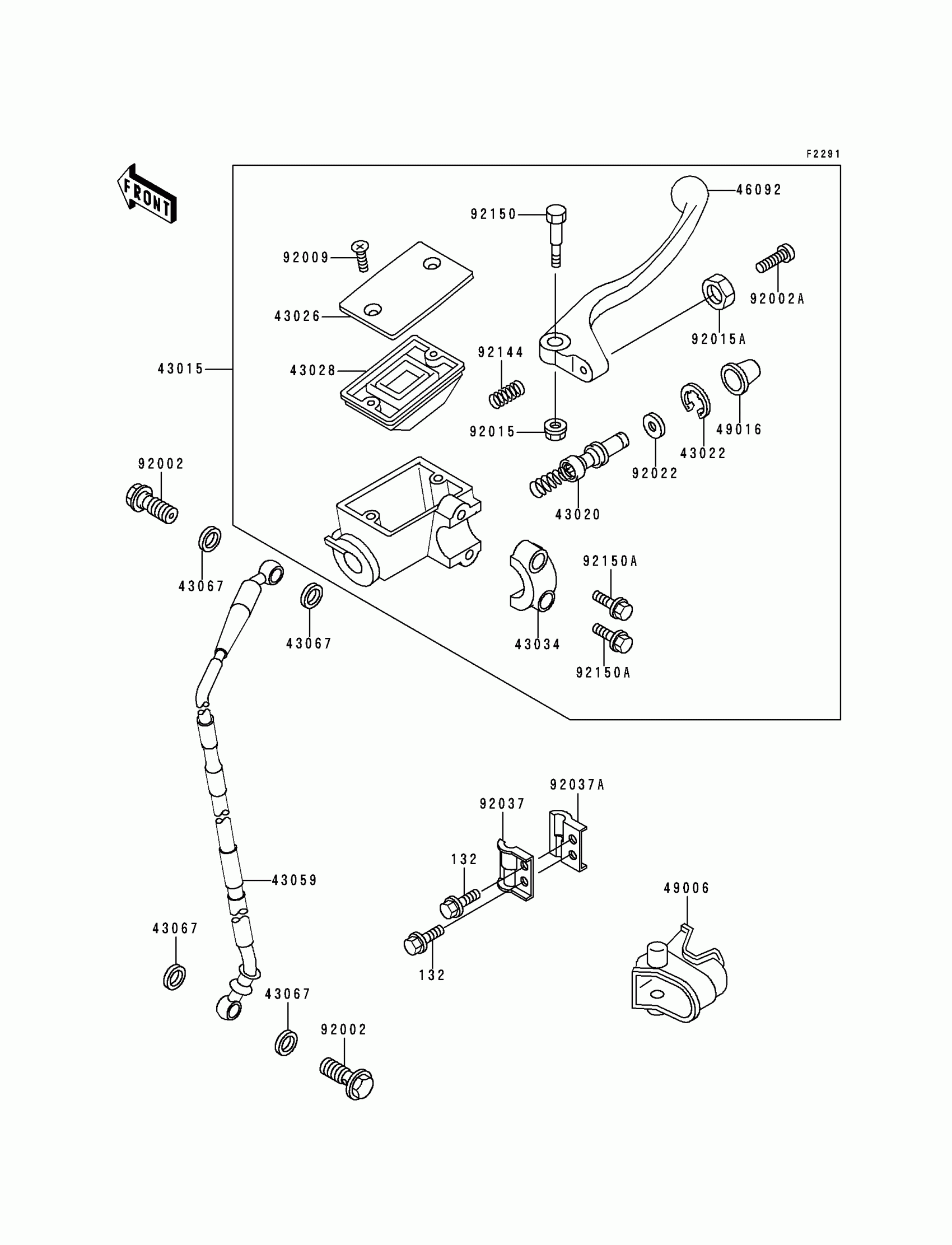

Kawasaki KX500 Front Master Cylinder(KX500-E4/E5) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

43015

CYLINDER-ASSY-MASTER,FR

43015-1516

$373.63

43020

PISTON-COMP-BRAKE

43020-1071

Unavailable

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.69

43026

CAP-BRAKE

43026-1075

$12.97

43028

DIAPHRAGM

43028-1067

$14.71

43034

HOLDER-BRAKE

43034-1110

$15.29

43059

HOSE-BRAKE,FR

43059-1577

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$1.81

46092

LEVER-GRIP,FRONT BRAKE

46092-1148

$32.32

49006

BOOT,FRONT BRAKE LEVER

49006-1231

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.90

92002

BOLT,OIL,L=23

92002-1888

$4.35

92002A

BOLT,ADJUST

92002-1893

$7.36

92009

SCREW,4MM

92009-1458

$2.59

92015

NUT,FLANGED,6MM

92015-1528

$4.37

92015A

NUT,ADJUST

92015-1642

$3.12

92022

WASHER

92022-1814

$4.17

92037

CLAMP,BRAKE HOSE,OUTSIDE

92037-1362

$5.84

92037A

CLAMP,BRAKE HOSE,INSIDE

92037-1363

$5.84

92144

SPRING,RETURN

92144-1103

$7.48

92150

BOLT,LEVER SET

92150-1451

$11.26

92150A

BOLT

92150-1452

$4.37
