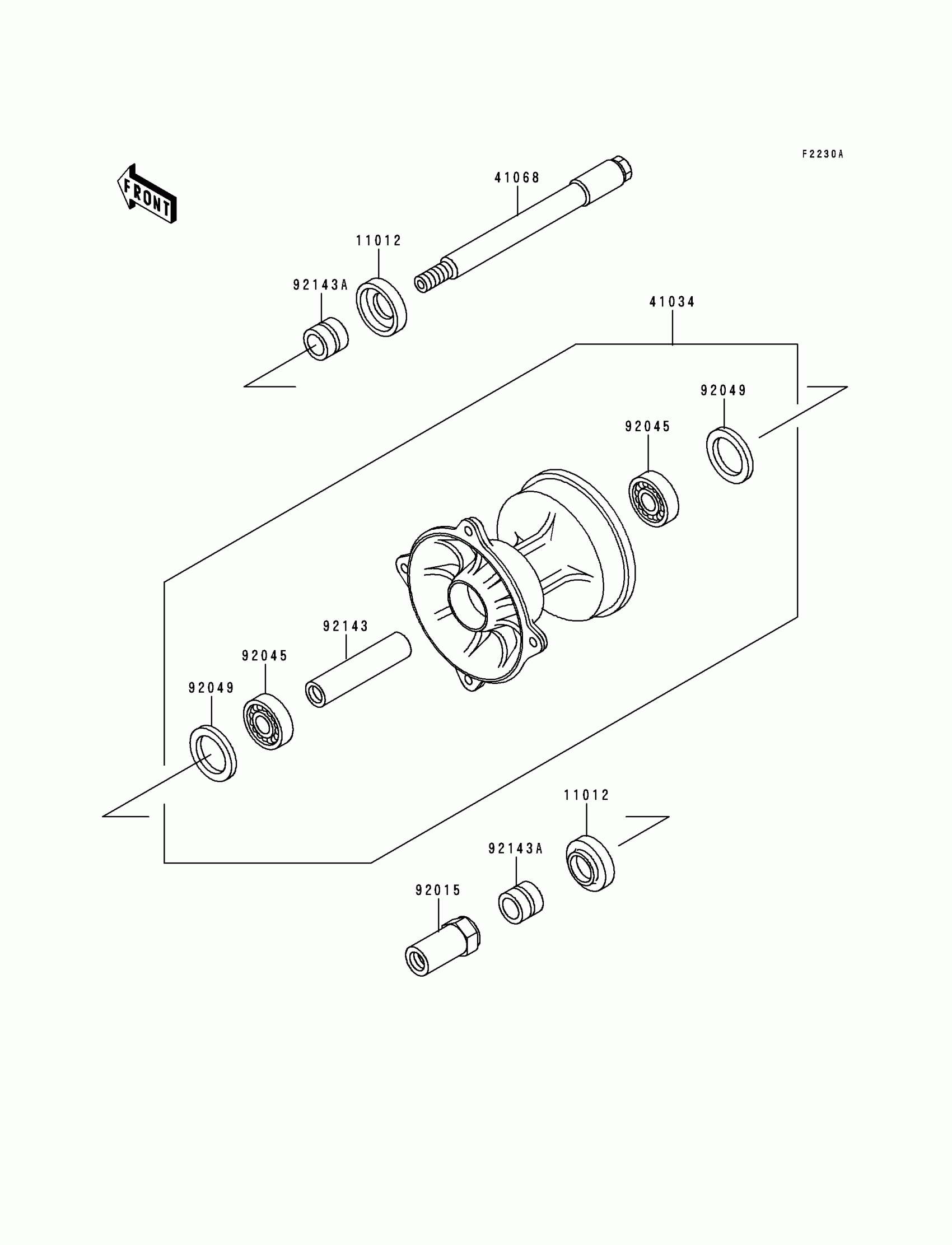

Kawasaki KX500 Front Hub(KX500-E6/E7/E8) Diagram

#

Description

Price

11012

CAP,AXLE

11012-1581

$5.15

41034

DRUM-ASSY,FRONT BRAKE

41034-1226

Unavailable

41068

AXLE,FR

41068-1342

Unavailable

92015

NUT,AXLE,18MM

92015-1884

Unavailable

92045

BEARING-BALL,69042RS

92045-1284

$30.00

92049

SEAL-OIL,BJNC-2 25X37X5

92049-1403

$15.97

92143

COLLAR,FR BRAKE DRUM,L=72

92143-1580

$33.60

92143A

COLLAR,FR AXLE,L=20

92143-1581

Unavailable
