Partiron

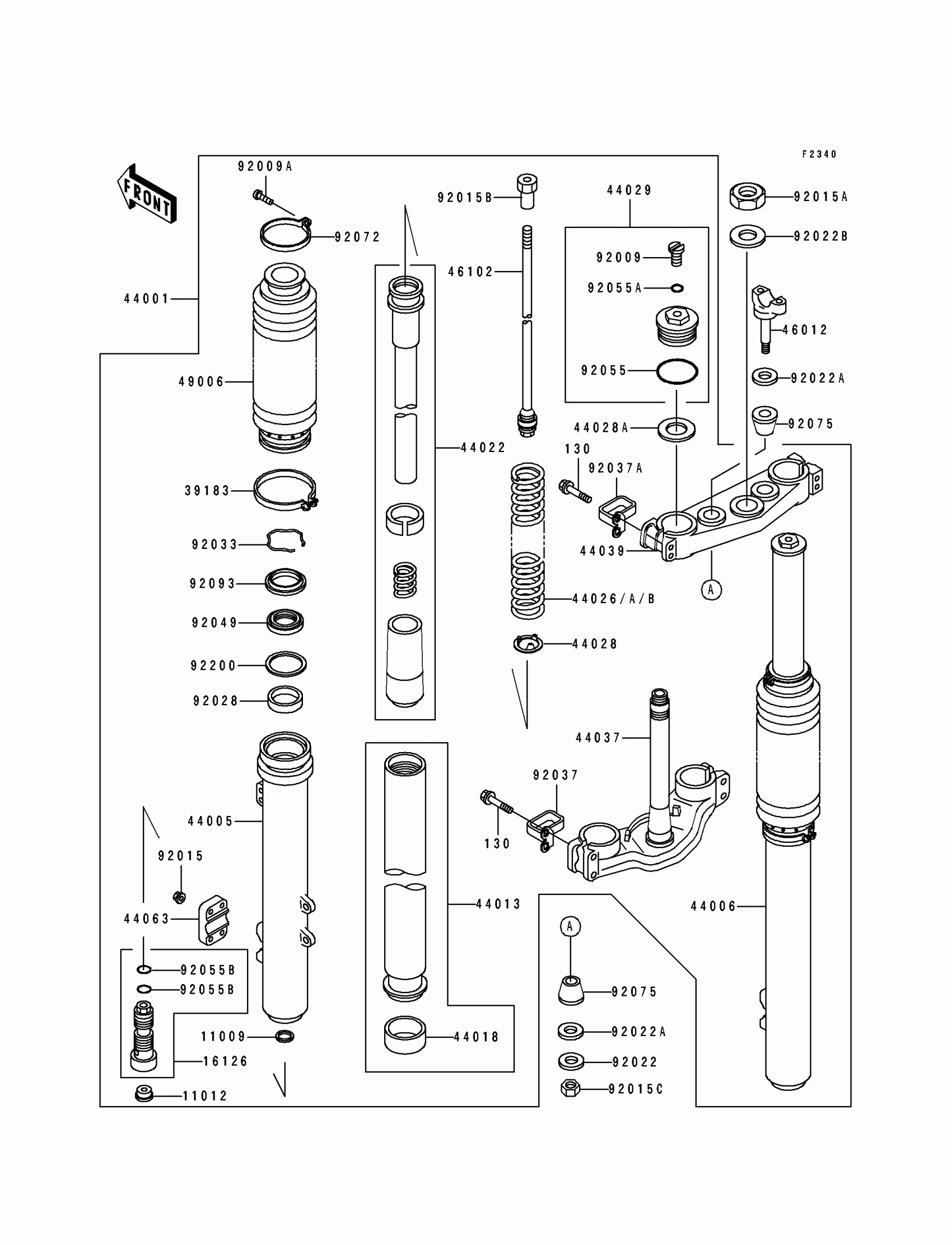

Kawasaki KX500 Front Fork(KX500-E1) Diagram

#

Description
Price

11009

GASKET

11009-1791

Unavailable

11012

CAP,FORK CYLINDER

11012-1381

$5.32

16126

VALVE

16126-1221

$104.69

39183

BAND-ASSY,BOOT

39183-1056

Unavailable

44001

FORK-FRONT

44001-1730

$1,871.26

44005

PIPE-LEFT FORK OUTER

44005-1289

$401.85

44006

PIPE-RIGHT FORK OUTER

44006-1286

$307.76

44013

PIPE-FORK INNER

44013-1290

$382.91

44018

PISTON-FORK,INNER PIPE

44018-1055

Unavailable

44022

CYLINDER-FORK

44022-1237

$181.03

44026

SPRING-FRONT FORK,K=0.38

44026-1424

$57.12

44026A

SPRING-FRONT FORK,K=0.39

44026-1425

$57.00

44026B

SPRING-FRONT FORK,K=0.40

44026-1427

$100.04

44028

GUIDE-FORK SPRING

44028-1066

$7.47

44028A

GUIDE-FORK SPRING

44028-1067

$6.36

44029

SEAT-FORK SPRING

44029-1138

$90.48

44037

HOLDER-FORK UNDER

44037-1257

$548.59

44039

HOLDER-FORK UPPER

44039-1192

$184.30

44063

HOLDER-FRONT AXLE

44063-1056

$51.22

46012

HOLDER-HANDLE,LWR

46012-1192

Unavailable

46102

ROD,FORK

46102-1271

$153.80

49006

BOOT,FORK

49006-1256

$79.12

92009

SCREW

92009-1568

$5.74

92009A

SCREW,3.5X10

92009-1573

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,STEERING STEM,22MM

92015-1653

$13.20

92015B

NUT

92015-1776

$17.54

92015C

NUT,LOCK,10MM

92019-021

$4.83

92022

WASHER,10.2X28X2

92022-1088

$3.72

92022A

WASHER

92022-1737

$4.37

92022B

WASHER,STEERING STEM

92022-1873

$5.93

92028

BUSHING

92028-1570

$14.27

92033

RING-SNAP

92033-1264

$4.96

92037

CLAMP

92037-1627

$24.52

92037A

CLAMP

92037-1628

Unavailable

92049

SEAL-OIL

92049-1341

Unavailable

92055

RING-O

92055-1140

$0.97

92055A

RING-O,2.8X6.6X1.9

92055-1441

$3.45

92055B

RING-O

92055-1462

Unavailable

92072

BAND

92072-1247

Unavailable

92075

DAMPER

92075-1776

$8.54

92093

SEAL

92093-1281

$25.59

92200

WASHER

92200-1006

$11.86

130

BOLT-FLANGED,8X40

130G0840

Unavailable
