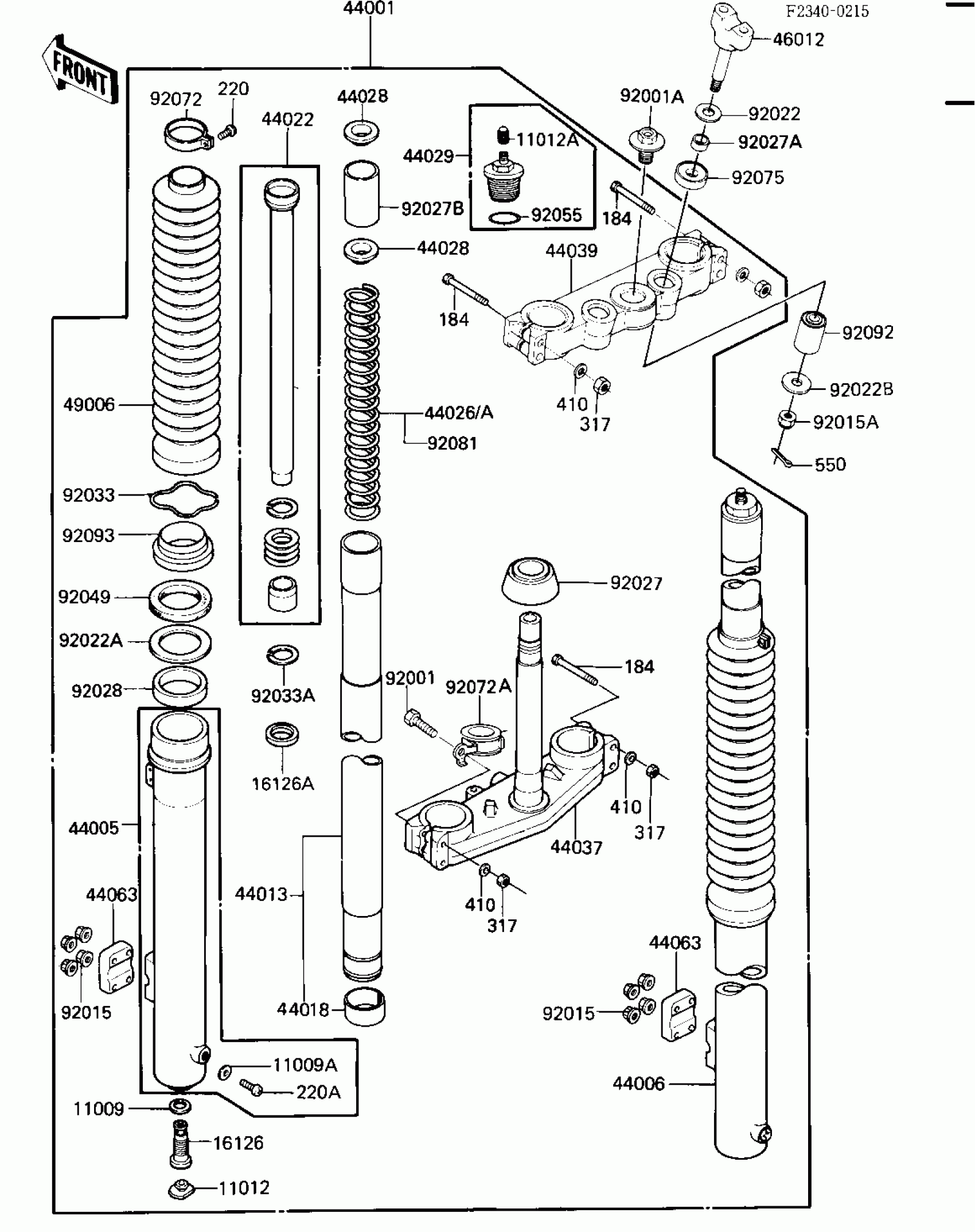

Kawasaki KX500 FRONT FORK ('84 A2) Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1324

$4.85

11009A

GASKET,FORK DRAIN PLUG

44045-002

$4.12

11012

CAP,FORK CYLINDER

11012-1381

$5.32

11012A

CAP,VALVE AIR

11012-1391

$5.02

16126

VALVE,FORK CYLINDER

16126-1107

$80.20

16126A

VALVE,FORK CYLINDER

16126-1120

$19.36

44001

FORK-FRONT

44001-1505

$1,384.51

44005

PIPE-LEFT FORK OUTER

44005-1212

$381.91

44006

PIPE-RIGHT FORK OUTER

44006-1207

$446.45

44013

PIPE-FORK INNER

44013-1213

$342.28

44018

BUSHING-FRONT FORK,INNER PIPE

44018-1005

$42.35

44022

CYLINDER-FORK

44022-1162

$118.08

44026

SPRING-FRONT FORK

44026-1191

$49.37

44026A

SPRING-FRONT FORK,K=0

44026-1268

$95.24

44028

GUIDE-FORK SPRING

44028-1011

Unavailable

44029

SEAT-FORK SPRING

44029-1107

$69.36

44037

HOLDER-FORK UNDER

44037-1163

$445.62

44039

HOLDER-FORK UPPER

44039-1075

$199.37

44063

HOLDER-FRONT AXLE

44063-1008

$54.65

46012

HOLDER-HANDLE

46012-1015

$19.32

49006

BOOT

49006-1081

Unavailable

92001

BOLT FLANGED 8X55

92001-1398

Unavailable

92001A

BOLT,STEERING HEAD,14X20

92001-1520

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LOCK,10MM

92019-021

$4.83

92022

WASHER,12.4X28X2.3

92022-1239

$3.34

92022A

WASHER

92022-1299

$6.82

92022B

WASHER-HANDLEBAR FIT

92022-196

Unavailable

92027

COLLAR,FRONT FORK

92027-1427

$79.69

92027A

COLLAR,12.5X16X8

92027-1474

Unavailable

92027B

COLLAR,FORK SPRING

92027-1765

$10.44

92028

BUSHING

92028-1145

$20.21

92033

RING-SNAP

92033-1077

$3.94

92033A

RING-SNAP

92033-1167

Unavailable

92049

SEAL-OIL,FORK OUTER TUBE

92049-1295

$20.52

92055

RING-O

92055-1123

$4.93

92072

BAND,BOOT

92072-1078

$10.73

92072A

BAND,CABLE

92072-1166

$25.61

92075

DAMPER,HANDLE HOLDER

92075-1398

Unavailable

92081

SPRING,FRONT FORK,K=0

92081-1548

$50.46

92092

BUSHING-RUBBER

92092-005

$11.16

92093

SEAL,FORK DUST

92093-1086

Unavailable

184

BOLT-UPSET-WP-SMALL

184G0855

Unavailable

220

SCREW-PAN-CROS

220B0316

Unavailable

220A

SCREW PAN HEAD 4X8

220B0408

Unavailable

317

NUT-HEX-SMALL,8MM

317G0800

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

550

PIN-COTTER,2.0X20

550D2020

Unavailable
