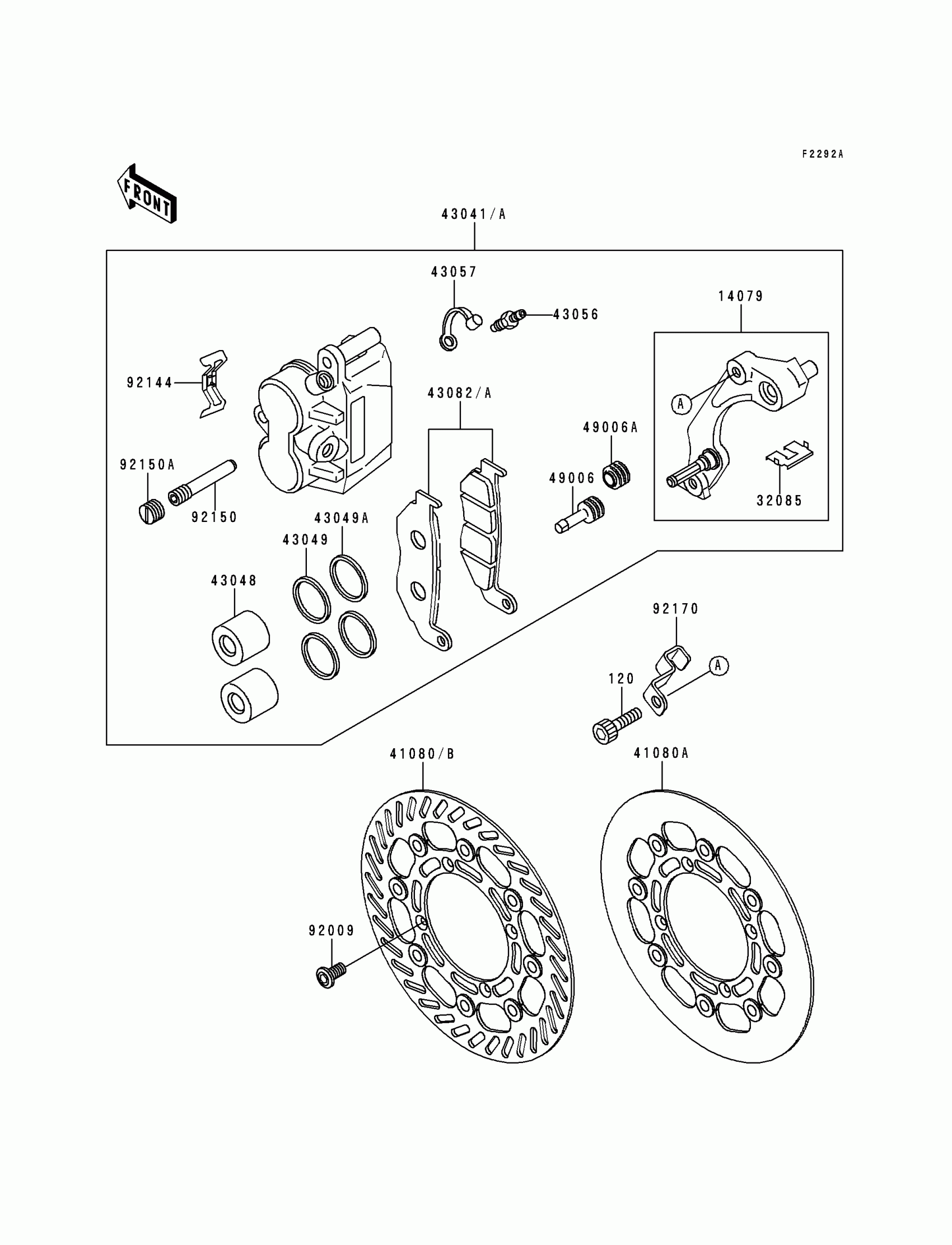

Kawasaki KX500 Front Brake(KX500-E6/E7/E8) Diagram

Description

Price

120

BOLT-SOCKET,8X40

120P0840

Unavailable

14079

HOLDER-ASSY,FRONT CALIPER

14079-1097

$170.00

32085

STOPPER,PAD

32085-1361

$6.34

41080A

DISC,FR

41080-1365

Unavailable

41080B

DISC,FR

41080-1387

$343.11

43041A

CALIPER-ASSY,FR,LH

43041-1576

$395.46

43048

PISTON-CALIPER

43048-1064

$61.70

43049

PACKING,PISTON SEAL

43049-1060

$15.29

43049A

PACKING,PISTON SEAL

43049-1061

$8.38

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.89

43082A

PAD-ASSY-BRAKE

43082-1172

$47.82

49006

BOOT,CALIPER

49006-1088

$9.20

49006A

BOOT,CALIPER

49006-1242

$4.34

92009

SCREW,6X14

92009-1546

$3.81

92144

SPRING,PAD

92144-1721

$7.79

92150

BOLT,HANGER

92150-1691

$9.50

92150A

BOLT,PLUG

92150-1692

$6.24

92170

CLAMP,HOSE

92170-1404

Unavailable
