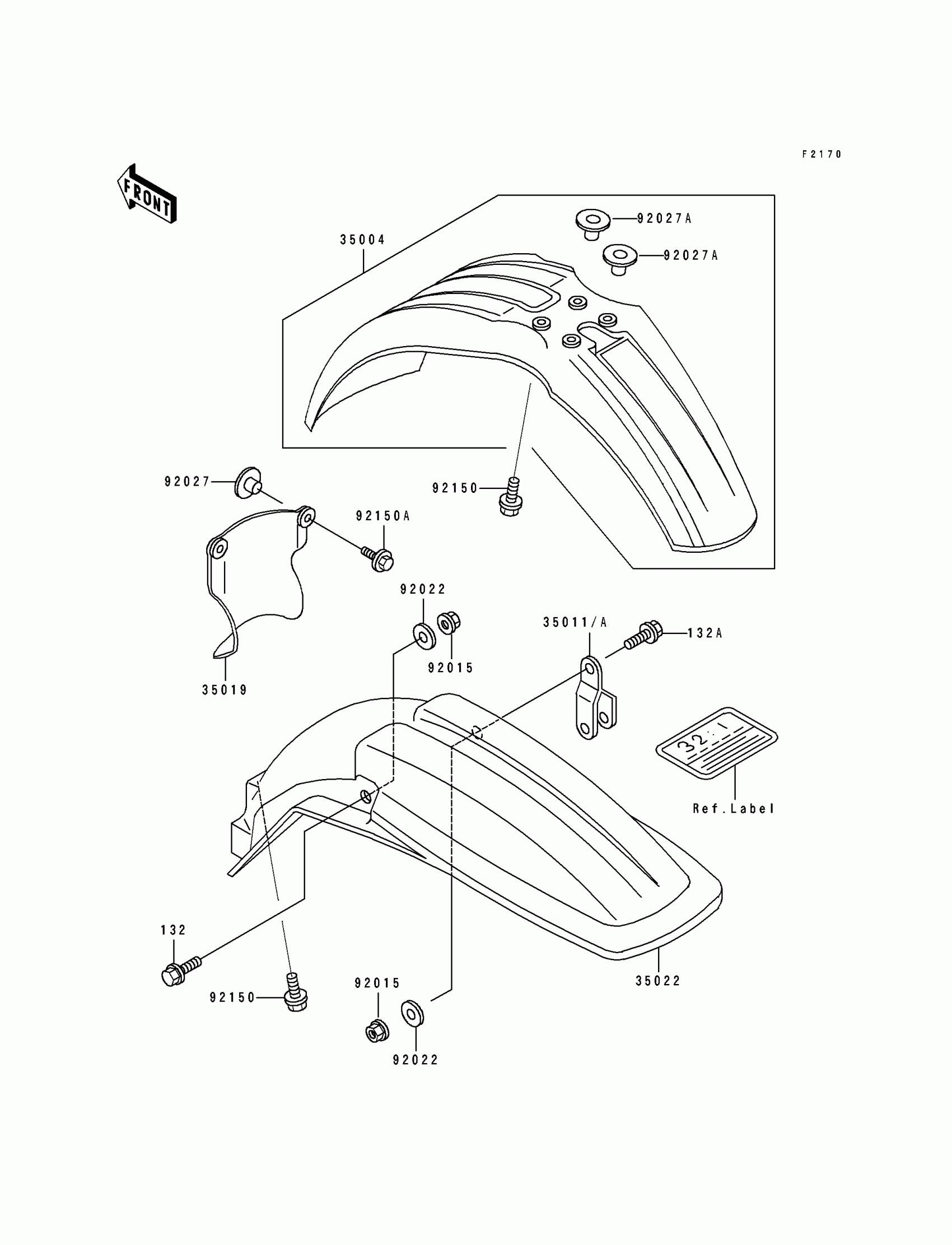

Kawasaki KX500 Fender Diagram

Description

Price

35004

FENDER-FRONT,L.GREEN

35004-1233-6W

Unavailable

35011A

STAY,MUFFLER

35011-1534

Unavailable

35019

FLAP,AIR FILTER

35019-1159

$38.07

35022

FENDER-COMP-REAR,L.GREEN

35022-1241-6W

$76.97

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.25

92027

COLLAR

92027-1794

$3.43

92027A

COLLAR

92027-1936

$5.15

92150

BOLT,6X25

92002-1339

$3.53

92150A

BOLT,FLANGED,6X16

92150-1506

$3.97

132

BOLT-FLANGED-SMALL,6X40

132G0640

Unavailable

132A

BOLT-FLANGED-SMALL,6X45

132G0645

Unavailable
