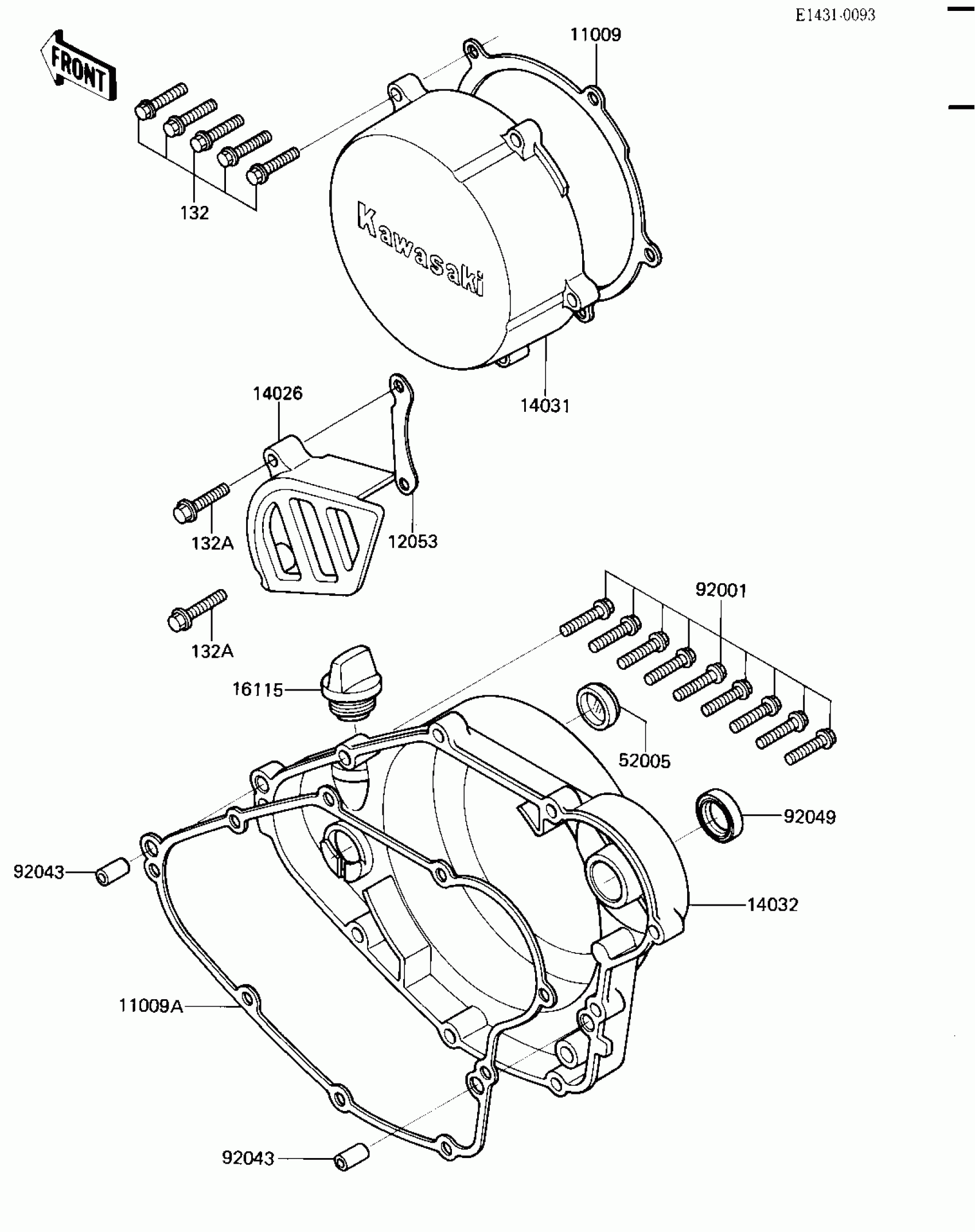

Kawasaki KX500 ENGINE COVERS ('84 A2) Diagram

#

Description

Price

11009

GASKET,GENERATOR COVER

11009-1964

Unavailable

11009A

GASKET,CLUTCH COVER

11009-1290

Unavailable

12053

GUIDE-CHAIN

12053-1123

Unavailable

14026

COVER-CHAIN

14026-1119

Unavailable

14031

COVER-GENERATOR

14031-1091

Unavailable

14032

COVER-CLUTCH

14032-1079

Unavailable

16115

CAP-OIL FILLER

16115-018

$8.38

52005

GAUGE,OIL LEVEL

52005-1009

$14.45

92001

BOLT-FLANGED-SMALL

132G0625

Unavailable

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.51

92049

SEAL-OIL,SB20285

92049-012

$8.64

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132G0630

Unavailable
