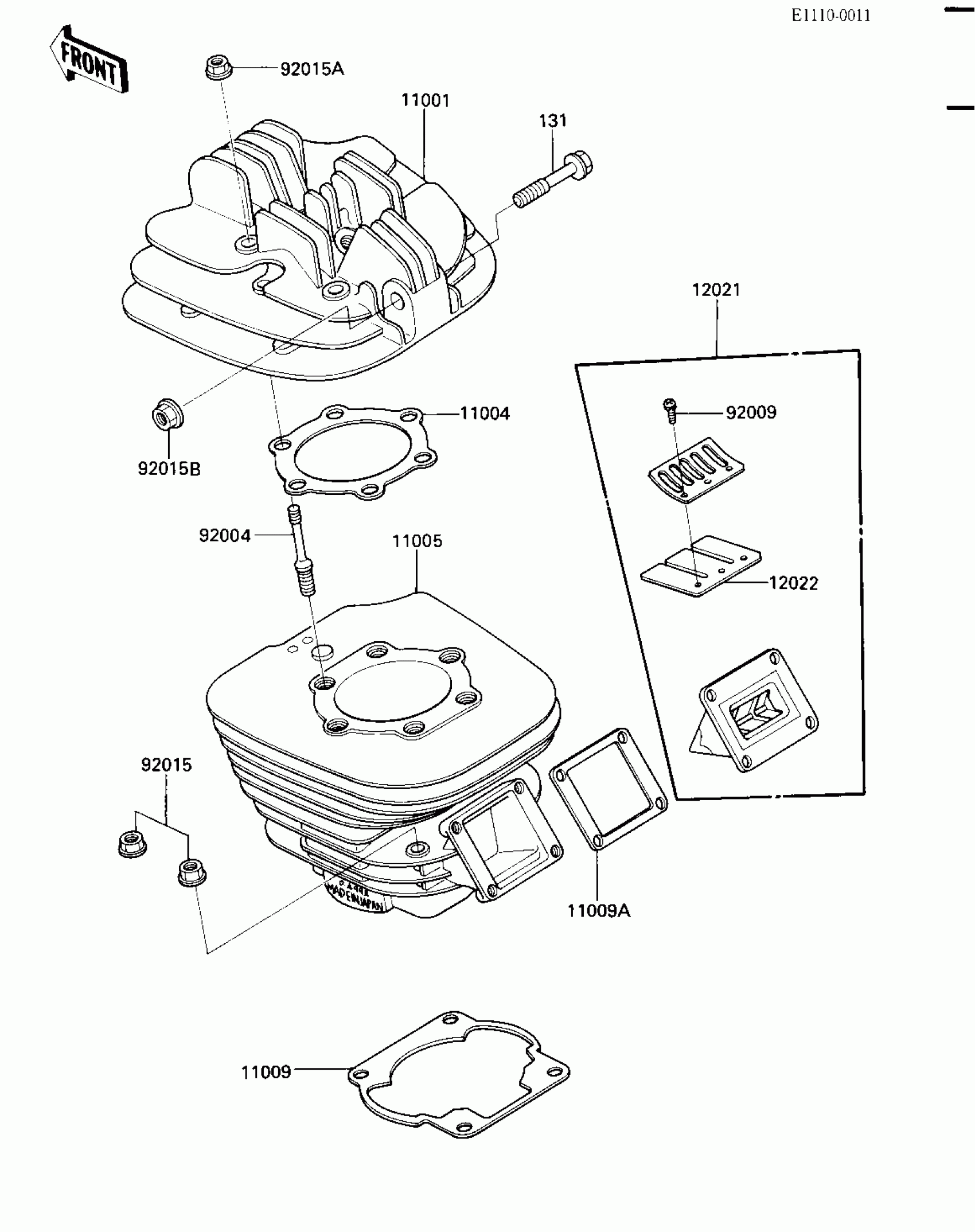

Kawasaki KX500 CYLINDER HEAD/CYLINDER/REED VALVE ('84 A Diagram

#

Description

Price

11001

HEAD-CYLINDER

11001-1152

Unavailable

11004

GASKET-HEAD,CYLINDER

11004-1053

Unavailable

11005

CYLINDER-ENGINE,ELECT

11005-1341

Unavailable

11009

GASKET,CYLINDER BASE

11009-1288

Unavailable

11009A

GASKET,REED VALVE

11009-1360

Unavailable

12021

VALVE-ASSY-REED

12021-1051

Unavailable

12022

VALVE-REED

12022-1051

Unavailable

92004

STUD,CYLINDER

92004-1022

Unavailable

92009

SCREW,REED VALVE

92009-1014

$2.05

92015

NUT,FLANGED,10MM

92015-1415

$3.72

92015A

NUT,FLANGED,8MM

92015-1014

$0.66

92015B

NUT,FLANGED,10MM

92015-1415

$3.72

131

BOLT-FLANGED.10X55

131P1055

Unavailable
