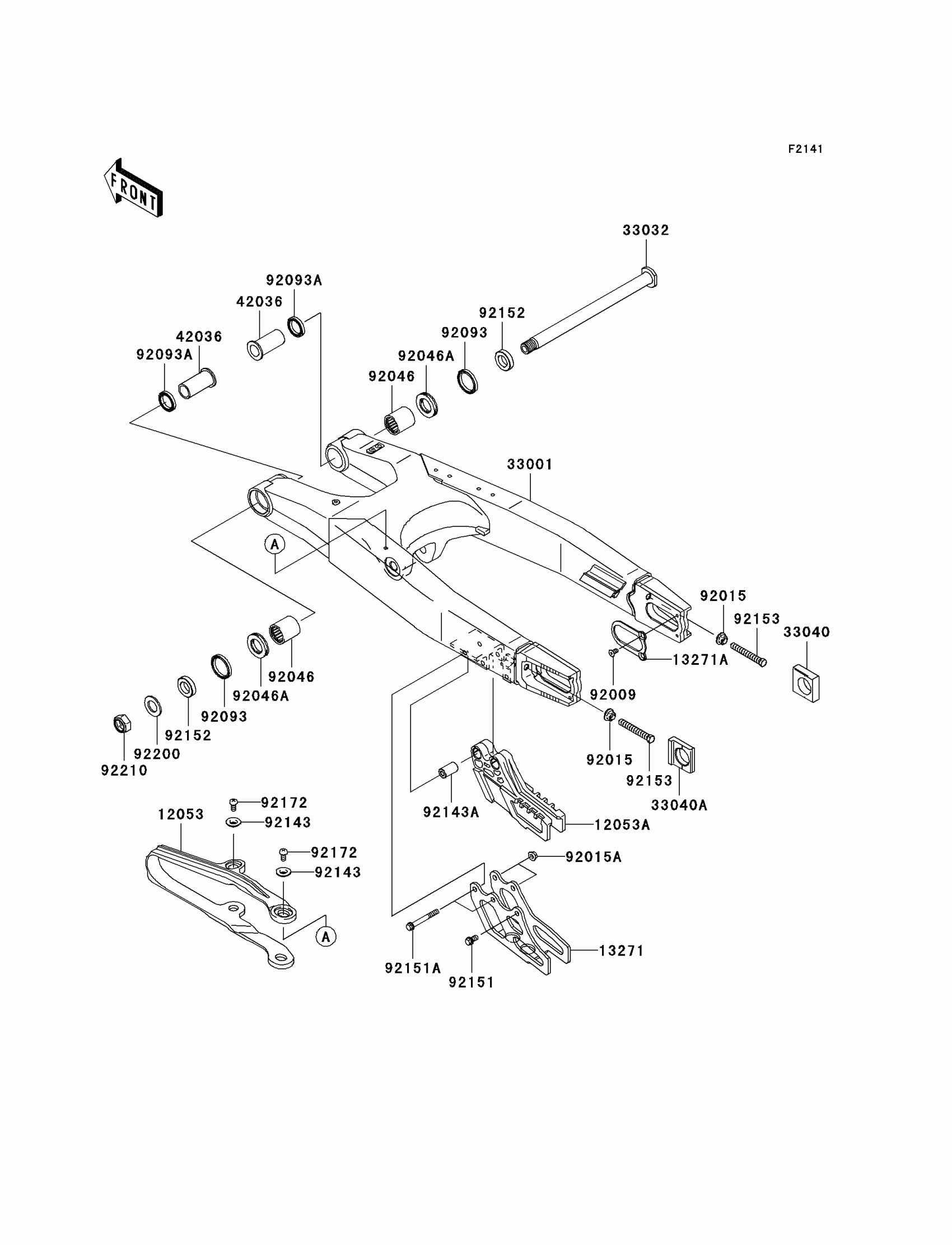

Find the part on the Swingarm diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Kawasaki KX450F Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

1

$71.19

In stock

12053A

GUIDE-CHAIN

12053-0061

1
Out of stock

13271

PLATE,CHAIN GUIDE

13271-0593

1
Out of stock

13271A

PLATE,AXLE

13271-1833

1

$16.19

In stock

33001

ARM-COMP-SWING

33001-0085

1

$1,084.77

In stock

33032

SHAFT-SWING ARM

33032-0012

1

$48.76

In stock

33040

ADJUSTER-CHAIN,RH

33040-0020

1

$13.86

In stock

33040A

ADJUSTER-CHAIN,LH

33040-1189

1
Out of stock

42036

1

$28.97

In stock

92009

SCREW,5X10

92009-1828

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92046

BEARING-NEEDLE,TA2230Z

92046-1174

1
Out of stock

92046A

BEARING-NEEDLE,NTBR22356E01

92046-1240

1
Out of stock

92093

SEAL,SDO29X35X4.5

92093-1434

1

$7.24

In stock

92093A

SEAL,SDO22X29X5

92093-1435

1

$6.98

In stock

92143

COLLAR

92143-1676

1

$4.93

In stock

92143A

COLLAR,6.5X14X24

92143-1867

1
Out of stock

92151

BOLT,6X12

92151-1133

1
Out of stock

92151A

BOLT,6X50

92151-1234

1

$2.03

In stock

92152

COLLAR,17.1X29X6

92152-0292

1

$9.93

In stock

92153

BOLT,8X56

92153-0620

1
Out of stock

92172

SCREW,5X8

92172-0119

1

$1.78

In stock

92200

WASHER,17.2X30X2.3

92200-0285

1
Out of stock

92210

NUT,LOCK,16MM

92210-0285

1
Out of stock
