1974 Kawasaki KX450 Ignition Diagram

← All diagrams

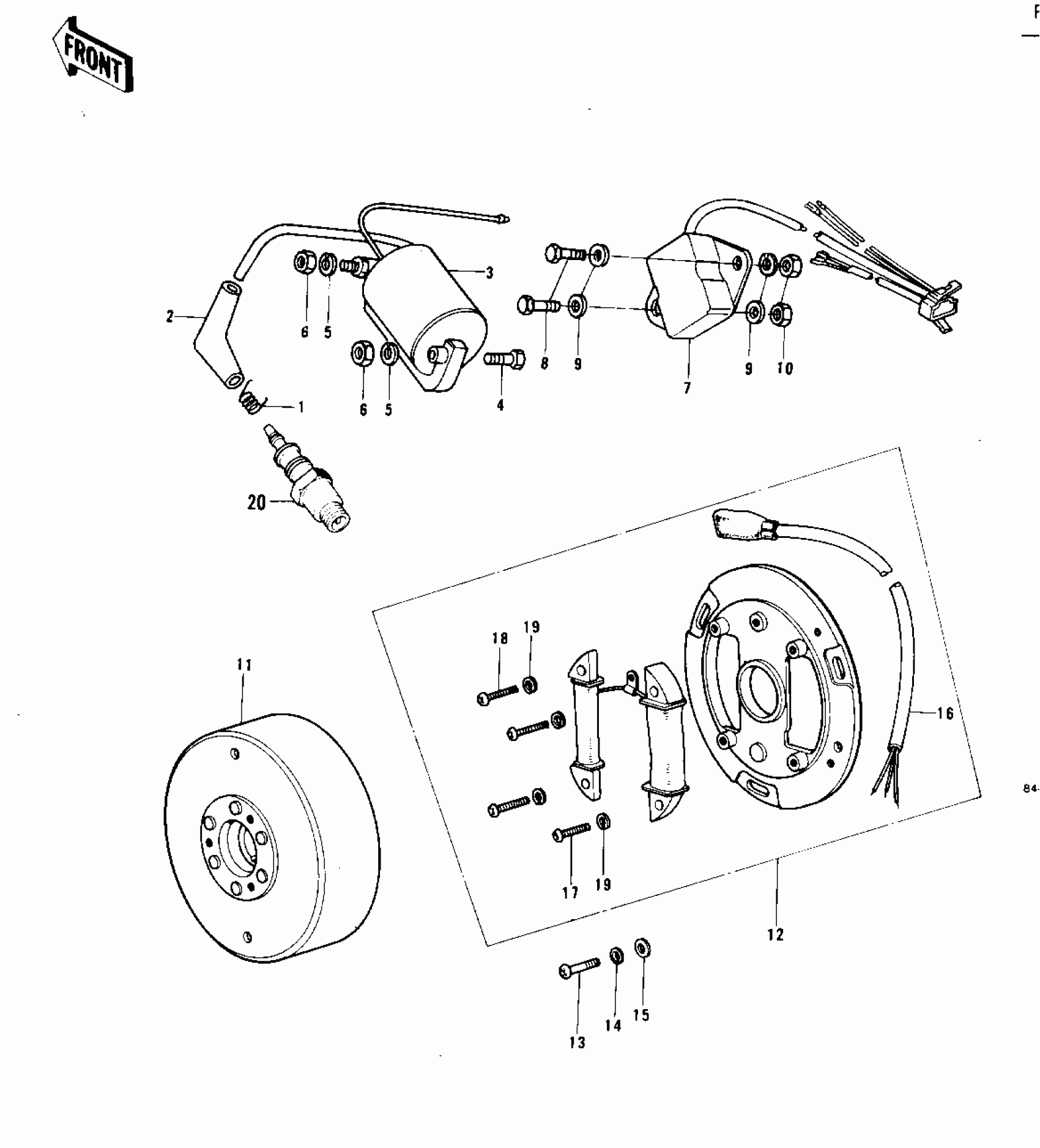

Find the part on the Ignition diagram for your 1974 Kawasaki KX450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Kawasaki KX450 Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TERMINAL,SPARK PLUG CAP

92101-001

1
Out of stock

2

CAP-SPARK PLUG

21130-009

1
Out of stock

3

COIL,IGNITION

21121-067

1
Out of stock

4

BOLT, HEX HEAD 5X22

110B0522A

1
Out of stock

5

WASHER-PLAIN,5MM

411B0500

1
Out of stock

6

NUT-HEX

311B0500

1
Out of stock

7

IGNITION UNIT

21119-013

1
Out of stock

7

IGNITION UNIT

21119-013

1
Out of stock

8

BOLT-UPSET

112G0618

1
Out of stock

9

WASHER SPRING 6MM

461F0600

1
Out of stock

10

NUT 6MM

311B0600

1
Out of stock

11

FLYWHEEL

21050-014

1
Out of stock

12

STATOR ASST

21003-019

1
Out of stock

13

UNAVAILABLE IN PRICE BOOK

214B0516A

1
Out of stock

14

WASHER SPRING 5MM

461F0500

1
Out of stock

15

WASHER-PLAIN,5MM

411B0500

1
Out of stock

16

WIRING HARNESS,MAGNT

21029-026

1
Out of stock

17

SCREW-PAN HEAD,4X20

220E0420A

1
Out of stock

18

SCREW PAN HEAD 4X16

220B0416

1
Out of stock

19

WASHER SPRING 4MM

461F0400

1
Out of stock

20

SPARK PLUG B9HS1

B9HS1

1
Out of stock

20

SPARK PLUG B9HS1

B9HS1

—
Out of stock

20

SPK PLG B8HV

B8HV

—
Out of stock
