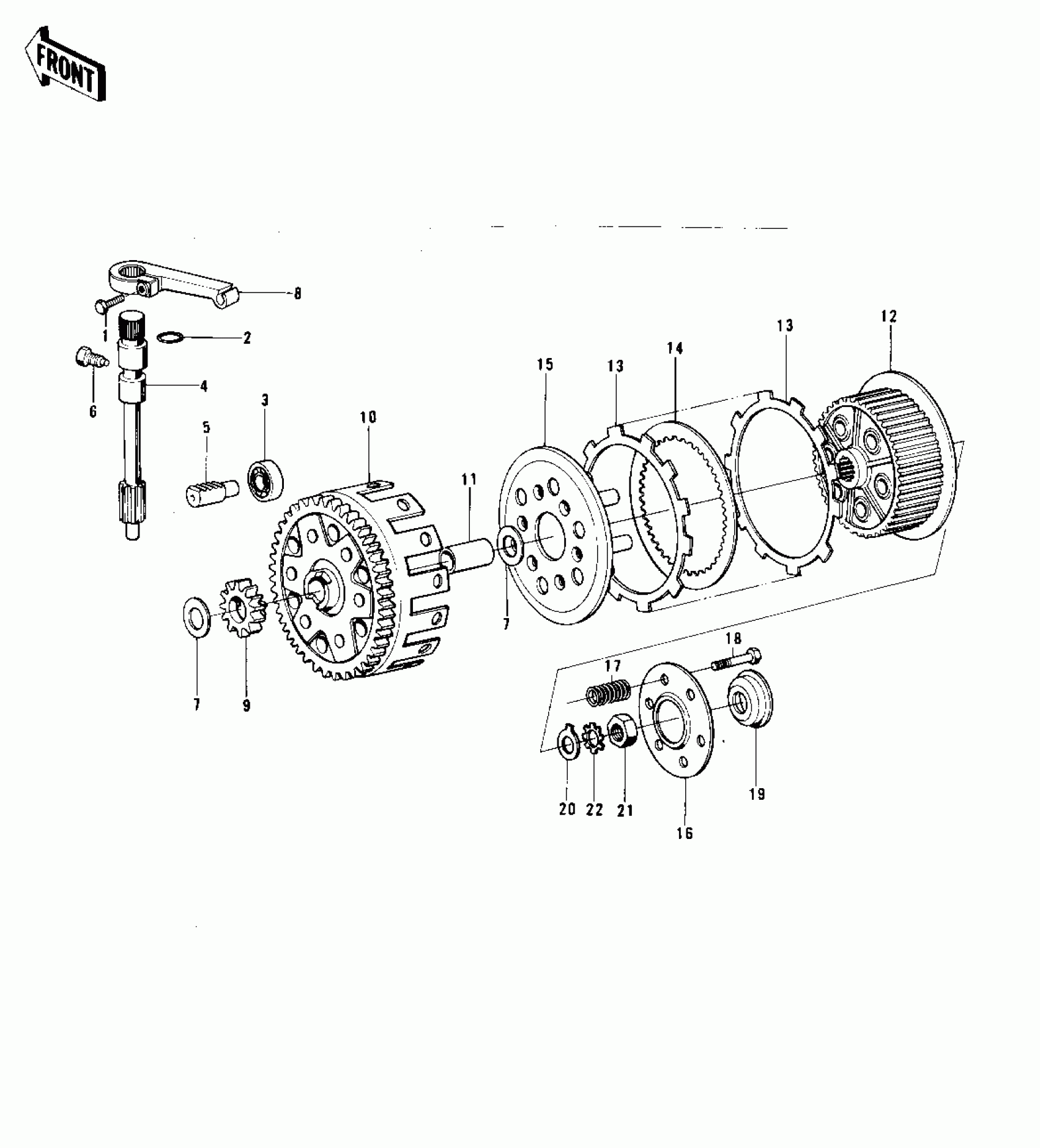

Kawasaki KX450 CLUTCH ('74 KX 450) Diagram

#

Description

Price

1

BOLT-UPSET

112G0618

Unavailable

1

BOLT-UPSET

112G0618

Unavailable

2

O RING,10MM

670B2010

$1.13

3

BEARING-BALL,#627

92045-026

$16.08

4

SHAFT,CLUTCH RELEASE

13106-006

Unavailable

5

ROD,CLUTCH PUSH

13116-025

Unavailable

6

BOLT,CLUTCH RELEASE

92003-130

Unavailable

7

WASHER,20.5X34X1.4

92022-168

$7.25

8

LEVER,CLUTCH RELEASE

13103-022

Unavailable

9

PINION,KICKSTARTER

13075-009

Unavailable

10

HOUSHING,CLUTCH

13095-038

Unavailable

11

BUSHING

92028-105

$19.73

12

HUB,CLUTCH

13087-035

Unavailable

13

PLATE,CLUTCH FRICTION

13088-038

Unavailable

14

PLATE,CLUTCH STEEL

13089-024

Unavailable

15

WHEEL,CLUTCH

13086-014

Unavailable

16

HOLDER,CLUTCH SPRING

13091-012

Unavailable

17

SPRING CLUTCH

92081-042

Unavailable

18

BOLT-UPSET

112G0618

Unavailable

18

BOLT-UPSET

112G0618

Unavailable

19

PUSHER,CLUTCH RELEASE

13114-008

Unavailable

20

WASHER,

92024-052

Unavailable

21

NUT

92015-064

Unavailable

22

WASHER,LOCK,14MM

464H1400

Unavailable
