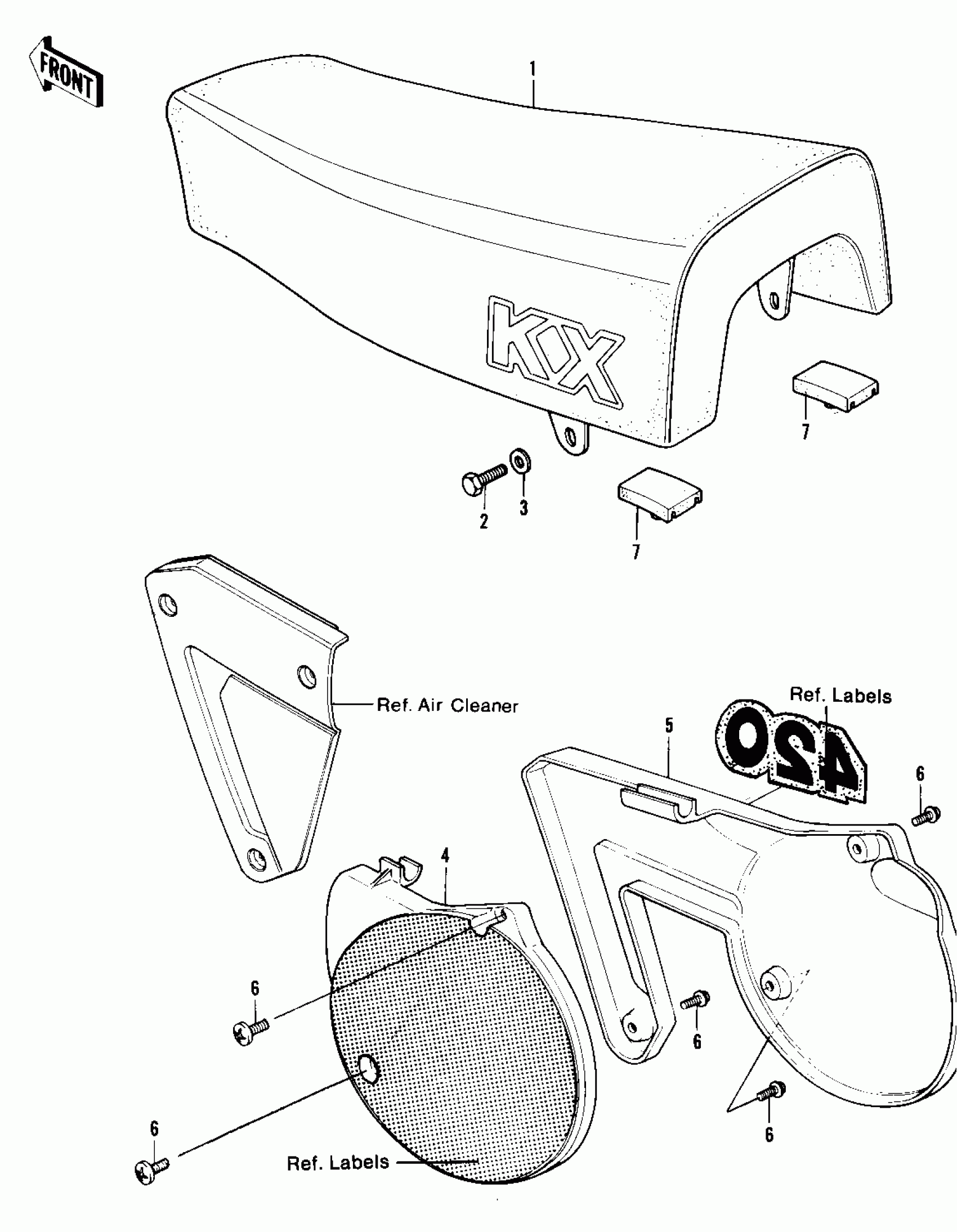

Kawasaki KX420 SEAT/SIDE COVERS Diagram

#

Description

Price

1

SEAT-ASSY

53001-1106

Unavailable

1

SEAT-ASSY

53001-1106

Unavailable

2

BOLT SMALL

114G0812

Unavailable

2

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

3

WASHER PLAIN 8MM

411B0800

Unavailable

4

COVER,SIDE,L.H.

36001-1081-7F

Unavailable

4

COVER-SIDE,LH,F.BLACK

36001-1081-21

$124.02

5

COVER-SIDE,RH,F.BLACK

36001-1082-21

Unavailable

5

COVER-SIDE,RH,F.BLACK

36001-1082-21

Unavailable

6

SCREW,6X14,WHITE

92009-1287

$1.81

7

DAMPER,SEAT

92075-1226

Unavailable
