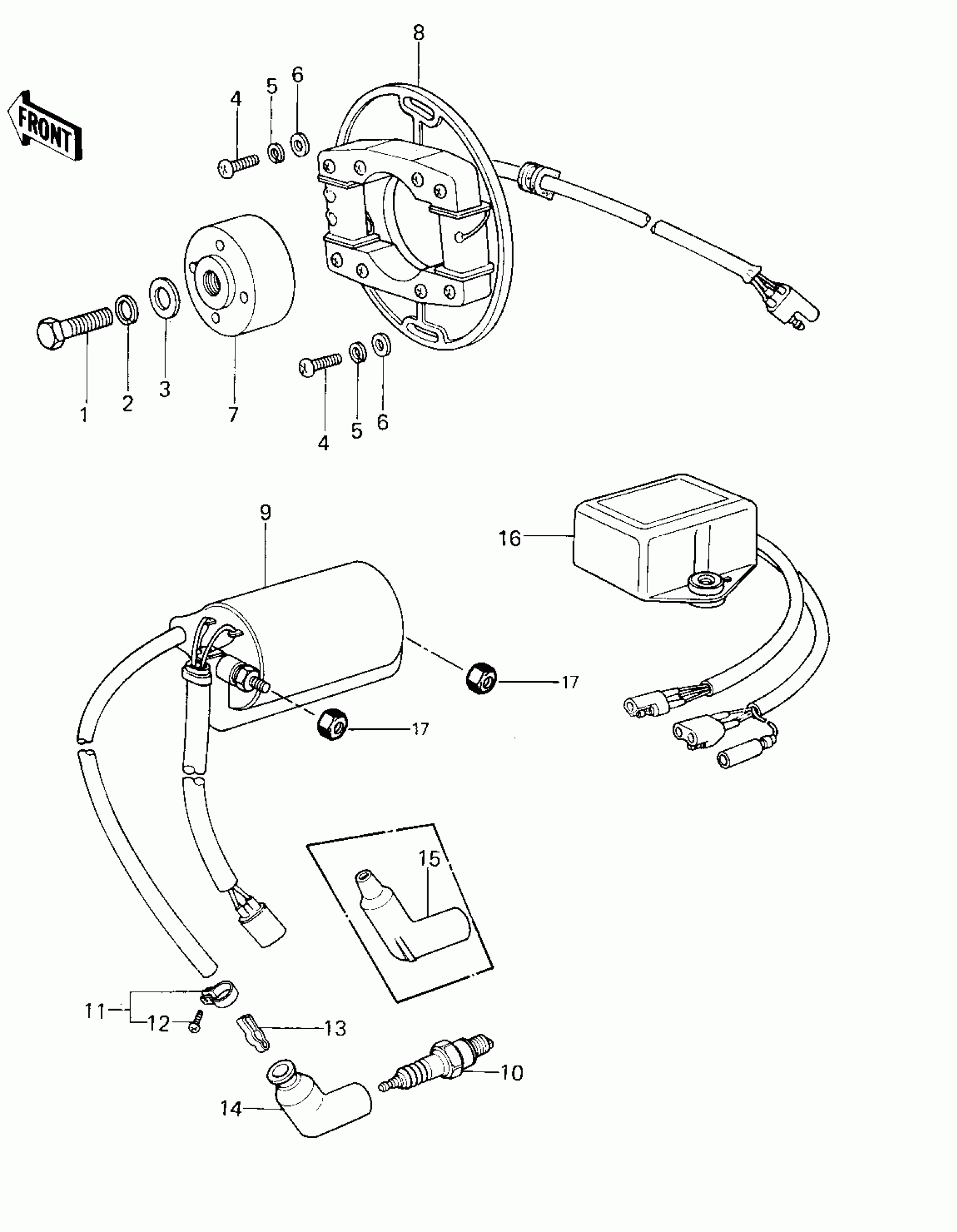

Kawasaki KX420 IGNITION Diagram

#

Description
Price

1

BOLT

92001-1578

$6.54

1

BOLT,8X40

115G0840

Unavailable

2

WASHER SPRING 8MM

461F0800

Unavailable

3

WASHER,8.5X22X3.2

92022-276

$7.59

4

SCREW PAN HEAD 6X25

220B0625

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

7

ROTOR,MAGNETO

21007-026

$352.20

8

STATOR ASSY

21003-1010

$520.55

9

COIL,IGNITION

21121-1007

$268.23

10

Roadster Spyder RT-LTD (SE6), Cognac | North America

B9EV

$10.83

10

SPARK PLUG BR9EV

92070-3002

$10.83

11

CLAMP

92037-1173

$2.58

12

SCREW-PAN-CROS

220B0310

$3.44

13

TERMINAL,PLUG CAP

21169-001

Unavailable

14

CAP-SPARK PLUG

21130-1006

Unavailable

15

CAP-ASSY-PLUG

21160-1009

$46.77

16

IGNITION UNIT

21119-1001

$471.30

17

NUT,LOCK,6MM

92019-008

$3.12
