1976 Kawasaki KX400-A2 Front Hub/brake Diagram

← All diagrams

Find the part on the Front Hub/brake diagram for your 1976 Kawasaki KX400-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

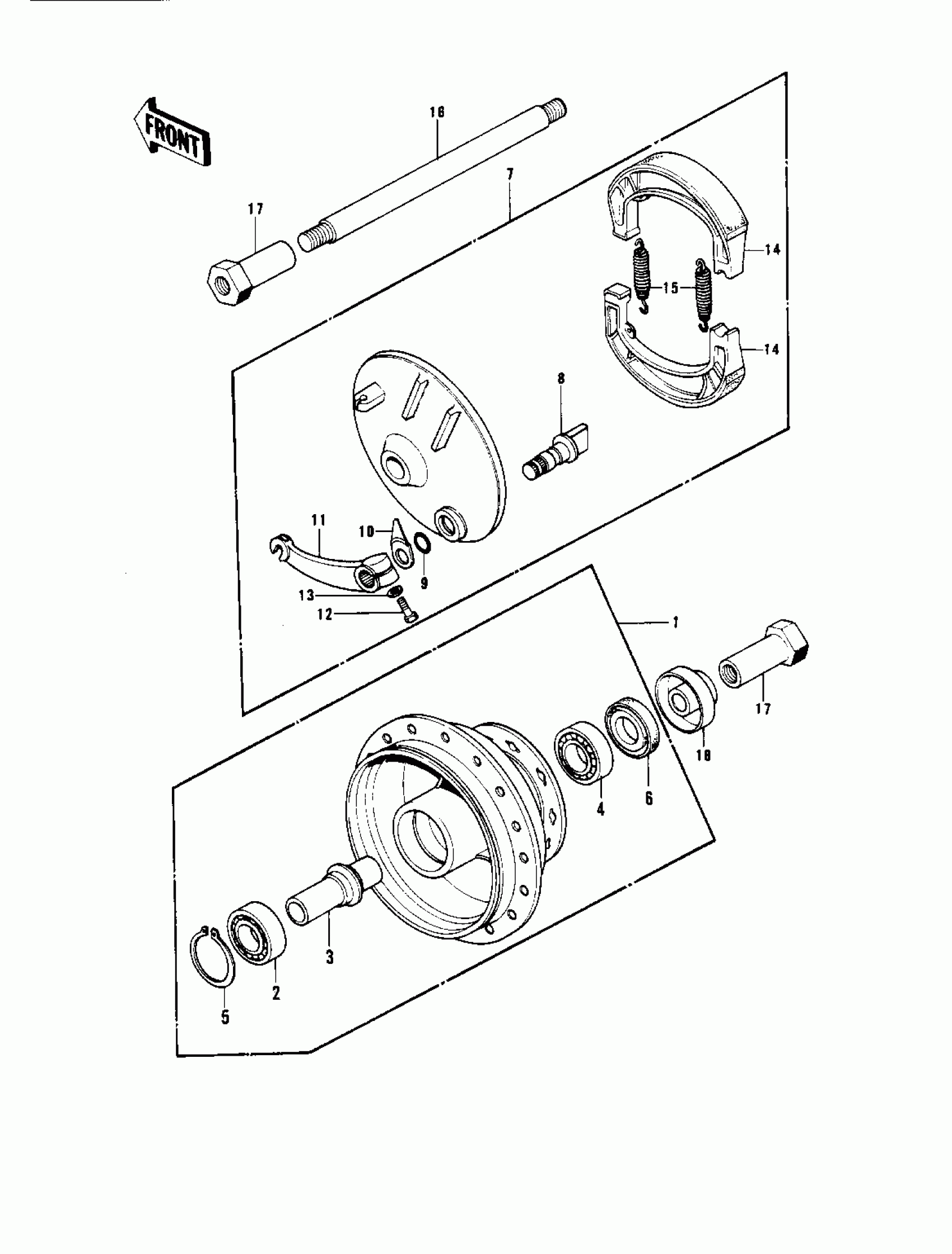

1976 Kawasaki KX400-A2 Front Hub/brake Diagram

#

Description
Price
Status
Order Qty

1

DRUM-ASSY,FR BRK,BLK

41034-034-21

Out of stock

1

DRUM-ASSY,FR BRK,F.BK

41034-039-21

Out of stock

2

BEARING,FRONT DRUM

92045-033

Out of stock

3

COLLAR,FR BRK DRUM

41039-027

Out of stock

4

BEARING-BALL,#6302C3

601B6302

Out of stock

5

RING-SNAP,42MM

92033-1041

Out of stock

6

OIL SEAL,#22427

654A224207

Out of stock

7

PANEL-ASY,FR BRK BLK

41035-065-21

Out of stock

8

CAM SHAFT,REAR BRAKE

42026-021

Out of stock

9

SEAL,BRAKE CAM

41051-001

Out of stock

10

INDICATOR,FR BRK SHOE

41085-017

Out of stock

11

LEVER,FRONT BRAKE CAM

41053-023

Out of stock

11

LEVER,FRONT BRAKE CAM

41053-025

Out of stock

12

BOLT-UPSET

112G0625

Out of stock

13

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

14

SHOE-BRAKE

41048-1068

Out of stock

15

SPRING,BRAKE SHOE

42020-004

Out of stock

16

AXLE,FRONT

41068-048

Out of stock

17

COLLAR,FRONT AXLE

41069-031

Out of stock

18

COLLAR,FRONT AXLE

41069-030

Out of stock
