1976 Kawasaki KX400-A2 Frame/frame Fittings Diagram

← All diagrams

Find the part on the Frame/frame Fittings diagram for your 1976 Kawasaki KX400-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

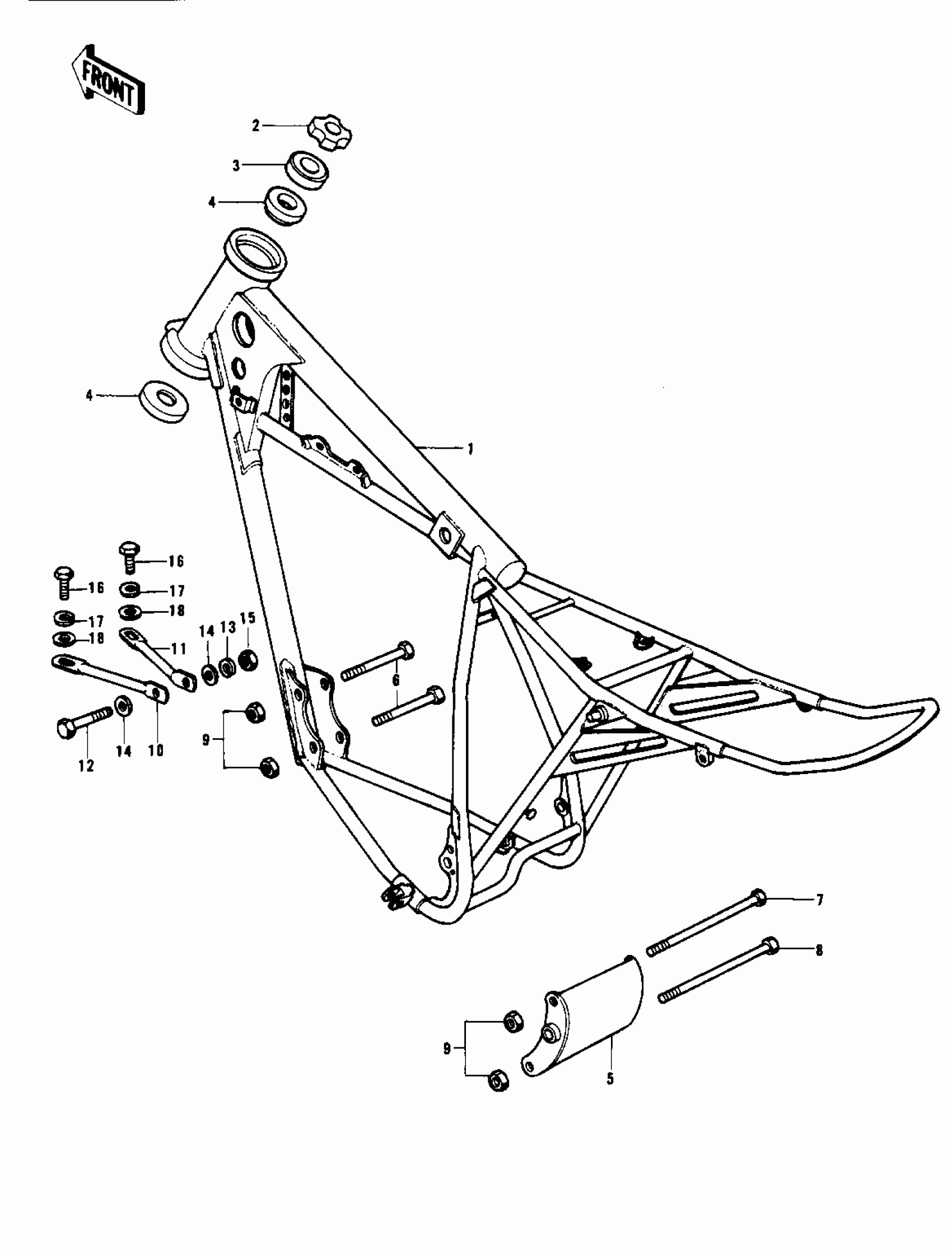

1976 Kawasaki KX400-A2 Frame/frame Fittings Diagram

#

Description
Price
Status
Order Qty

1

FRAME

32002-124

Out of stock

2

NUT,25MM,T=12

92015-1546

Out of stock

3

CAP,STEERING STEM

46098-015

Out of stock

4

RACE,ROLLER,32005JR RS

92047-017

Out of stock

5

BRACKET,ENGINE MOUNT

32117-009

Out of stock

6

BOLT,HEX HEAD,10X65

92001-1255

Out of stock

6

BOLT,HEX HEAD,10X65

92001-1255

Out of stock

7

BOLT,FLANGED,10X110

92001-1602

Out of stock

8

BOLT,FLANGED,10X115

92001-1603

Out of stock

9

NUT,10MM

92019-016

Out of stock

10

PLATE,ENG MOUNT,L.H

32030-051

Out of stock

11

PLATE,ENG MOUNT,R.H

32030-052

Out of stock

12

BOLT,10X28

113G1028

Out of stock

13

WASHER SPRING 10MM

461F1000

Out of stock

14

WASHER-PLAIN,10MM

411B1000

Out of stock

15

NUT-HEX-FINE,10MM

314B1000

Out of stock

16

BOLT,8X20

115G0820

Out of stock

17

WASHER SPRING 8MM

461F0800

Out of stock

18

WASHER PLAIN 8MM

411B0800

Out of stock
