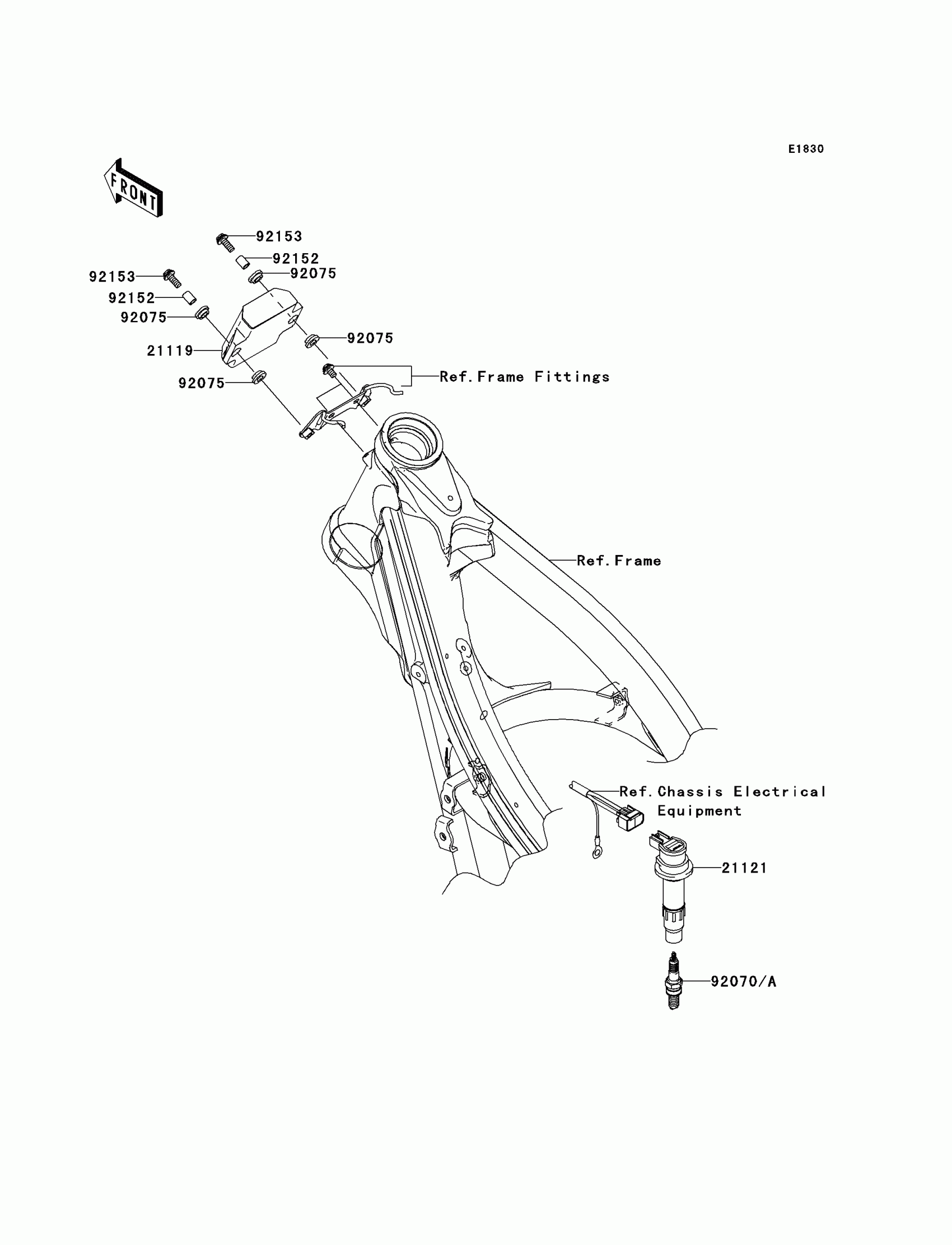

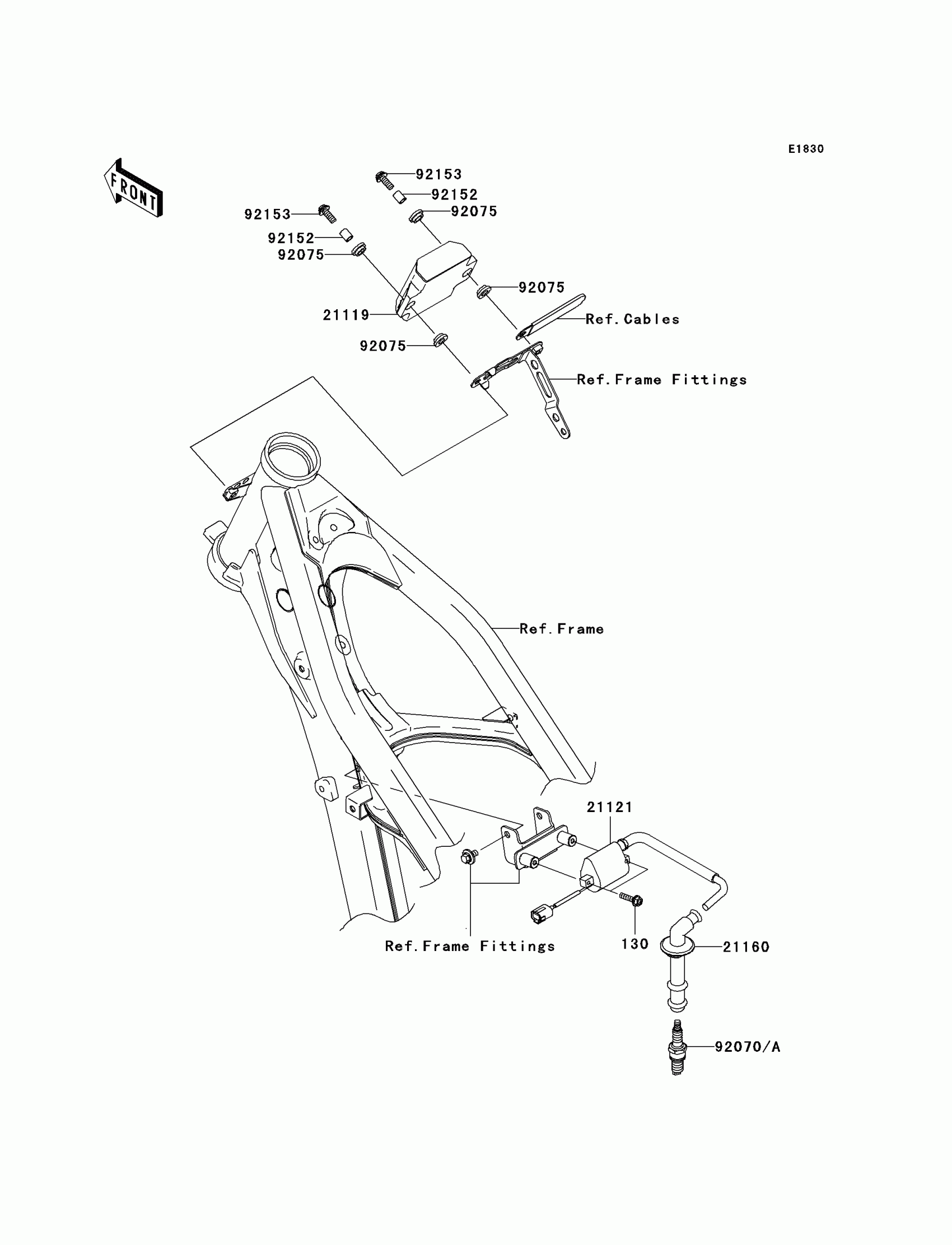

Find the part on the Ignition System diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KX250F Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X20

130L0520

1
Out of stock

21119

IGNITER

21119-0038

1

$581.51

In stock

21121

COIL-IGNITION

21121-0010

1
Out of stock

21160

CAP-ASSY-PLUG

21160-0009

1

$55.67

In stock

92070

1

$8.19

In stock

92070A

PLUG-SPARK,CR9EB(NGK)

92070-0002

1
Out of stock

92075

DAMPER,8MM

92075-1138

1

$2.92

In stock

92152

COLLAR,IGNITER

92152-1421

1

$4.92

In stock

92153

BOLT,6X20

92153-0626

1
Out of stock
