2004 Kawasaki KX250F Frame Fittings Diagram

← All diagrams

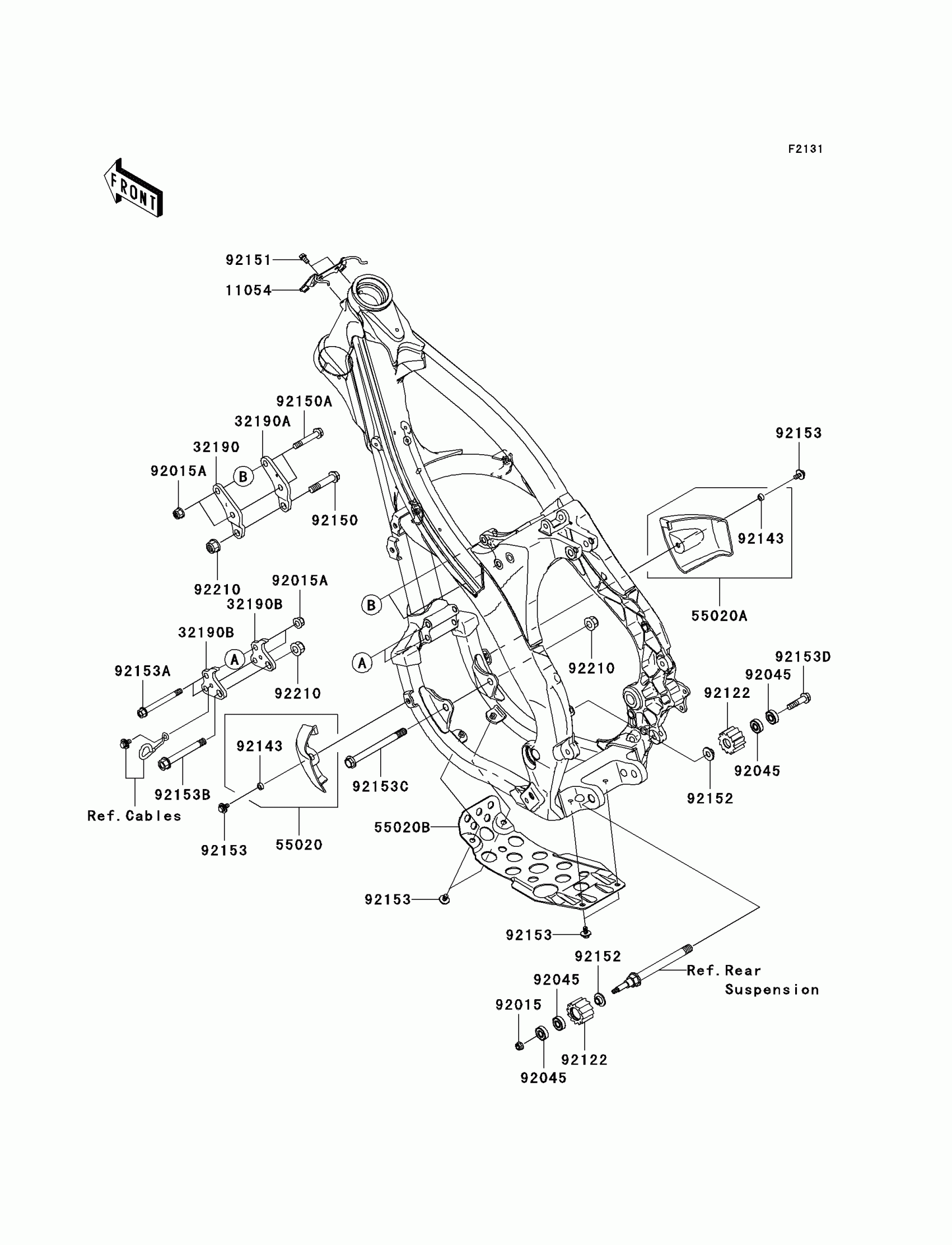

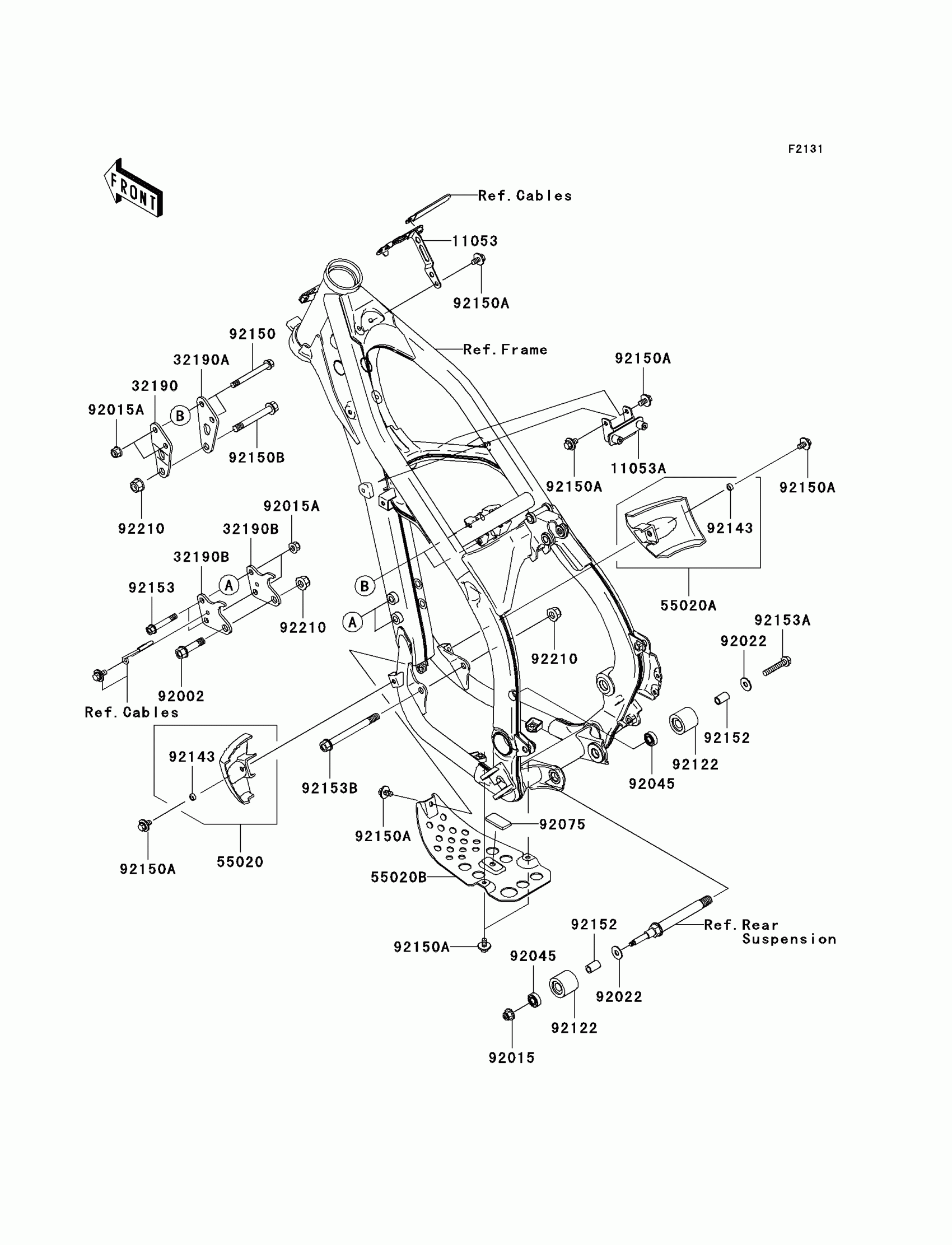

Find the part on the Frame Fittings diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KX250F Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,IGNITER

11053-0123

1

$14.20

In stock

11053A

1

$19.93

In stock

32190

BRACKET-ENGINE,UPP,LH

32190-0014

1
Out of stock

32190A

1

$12.54

In stock

32190B

BRACKET-ENGINE,FR

32190-0070

1
Out of stock

55020

GUARD,ENGINE,FR,LH

55020-0023

1

$30.56

In stock

55020A

GUARD,ENGINE,FR,RH

55020-0024

1

$30.56

In stock

55020B

GUARD,ENGINE

55020-0055

1

$36.87

In stock

92002

BOLT,ARM,10MM

92002-1576

1
Out of stock

92015

1

$1.20

In stock

92015A

NUT,8MM

92015-1432

1

$5.21

In stock

92022

WASHER,8.5X22X1.5

92022-1629

1

$4.87

In stock

92045

1

$32.24

In stock

92075

DAMPER

92075-1054

1

$3.97

In stock

92122

ROLLER,CHAIN GUIDE

92122-1216

1

$11.83

In stock

92143

COLLAR

92143-1307

1

$3.14

In stock

92150

BOLT,FLANGED,8X50

92150-1214

1

$7.14

In stock

92150A

BOLT,6X12

92150-1435

1

$3.43

In stock

92150B

BOLT,FLANGED,10X42

92150-1571

1

$9.12

In stock

92152

1

$7.49

In stock

92153

BOLT,FLANGED,8X78

92153-0364

1
Out of stock

92153A

BOLT,FLANGED,8X45

92153-0585

1
Out of stock

92153B

BOLT,FLANGED,10X110

92153-0615

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock
