2004 Kawasaki KX250F Carburetor Diagram

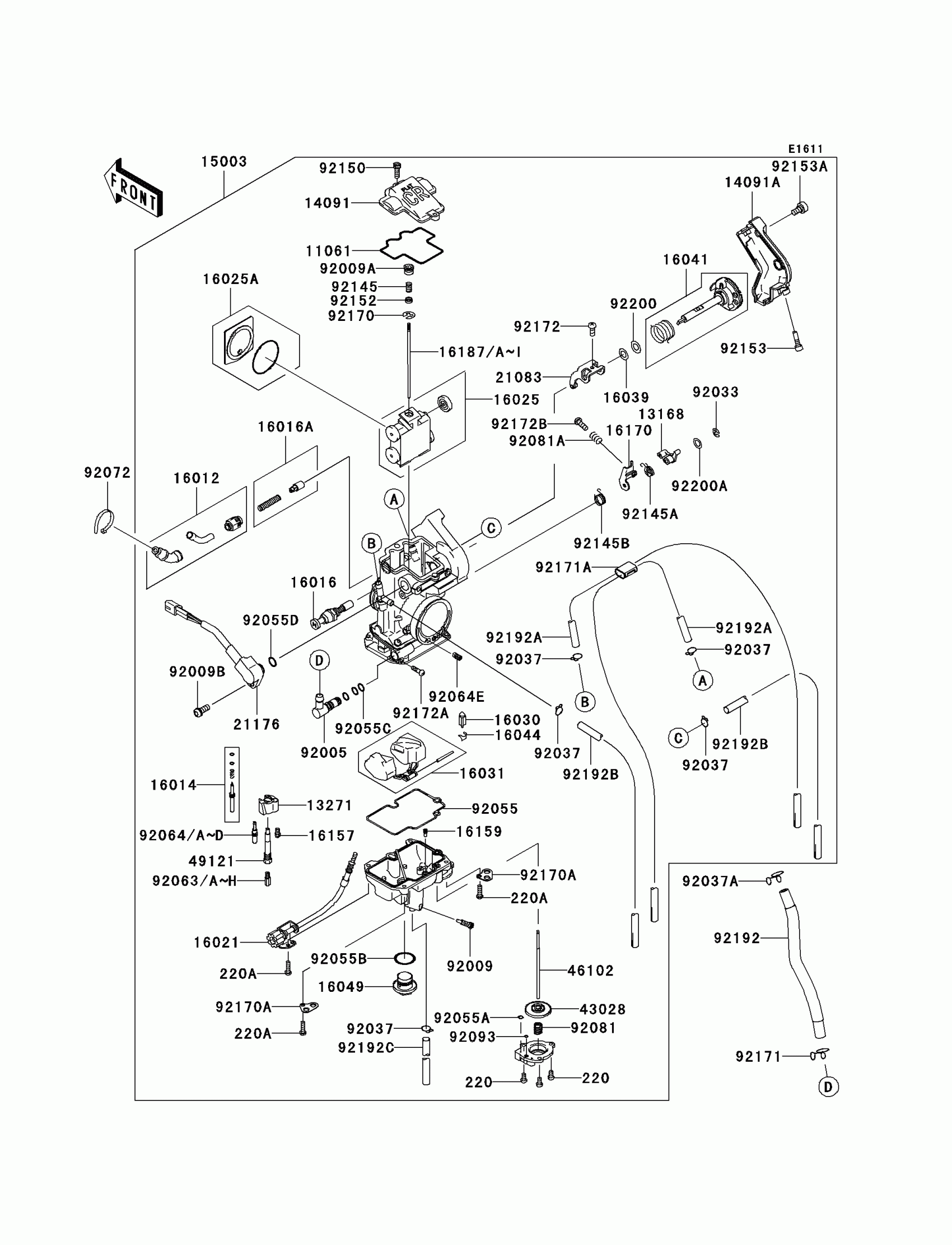

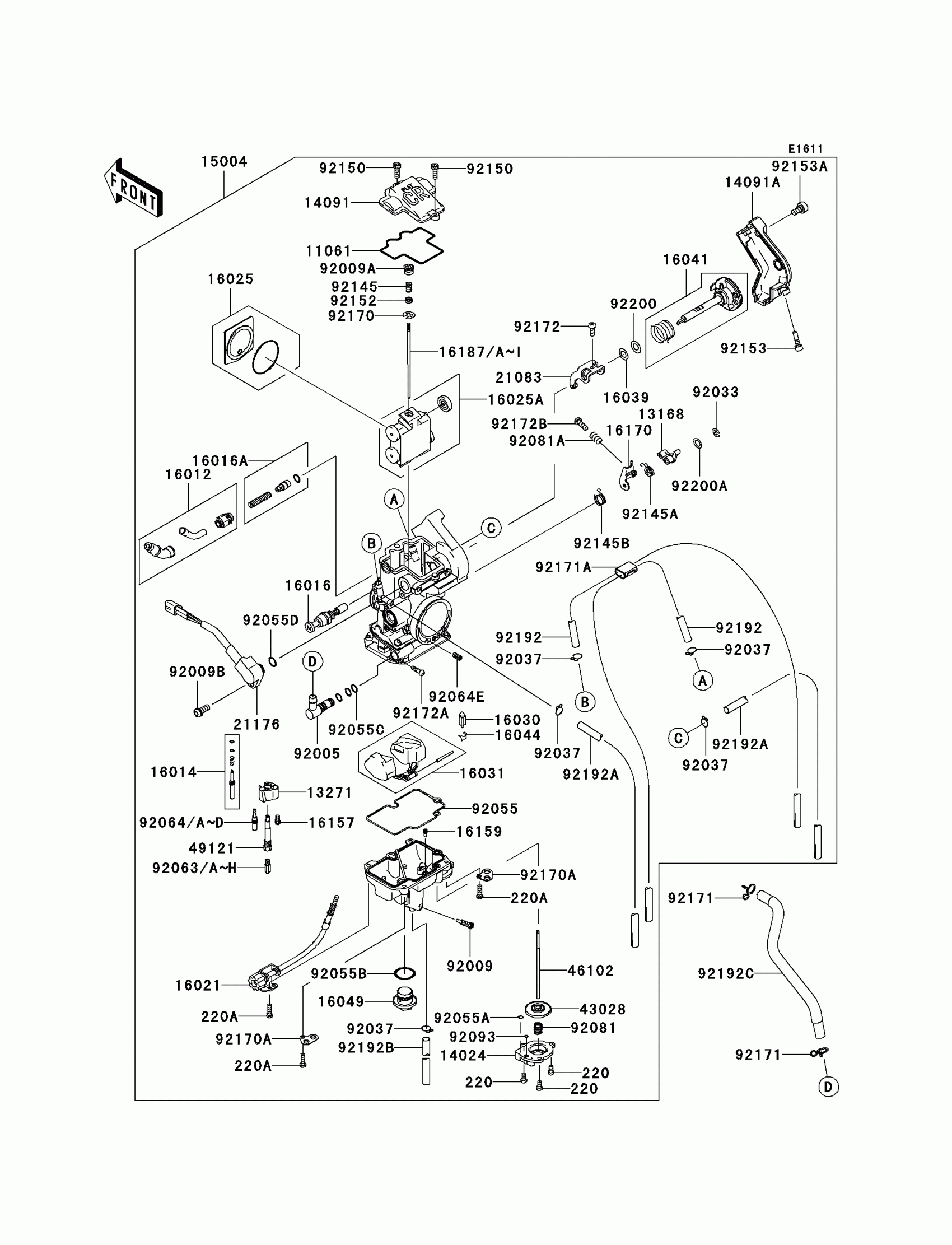

Find the part on the Carburetor diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
13271
PLATE
13271-0241
16157
JET-STARTER,#68
16157-0001
92005
FITTING
92005-0016
92009
SCREW,DRAIN,M6X0.75
92009-1551
92009A
SCREW
92009-1876
92009B
SCREW,THROTTLE SENSOR
92009-1981
92055
RING-O,FLOAT CHAMBER
92055-0066
92063B
JET-MAIN,#172
92063-1373
92063H
JET-MAIN,#188
92063-1379
92153
BOLT
92153-0638
92153A
BOLT
92153-0639
92192
TUBE,FUEL
92192-0031
92192A
TUBE
92192-0083
92192B
TUBE
92192-0084
92192C
TUBE
92192-0085
92200
WASHER
92200-0107
92200A
WASHER,LINK ARM,STAINLESS
92200-1434
