Description

Price

11065

CAP

11065-0087

$17.20

120

BOLT-SOCKET,6X30

120CA0630

$5.05

130

BOLT-FLANGED,5X14

130CD0514

$1.69

13107

SHAFT,WATER PUMP

13107-0196

$30.94

132

BOLT-FLANGED-SMALL,6X8

132BA0608

$1.77

16142

COVER-PUMP,WATER

16142-0738

$129.25

59051

GEAR-SPUR,WATER PUMP

59051-0061

$49.52

59256

IMPELLER

59256-1065

$32.28

92005

FITTING,WATER PUMP

92005-0839

$67.75

92022

WASHER,5.2X13X1

92022-1380

$3.29

92022A

WASHER,6X12.8X1.2

92022-1827

$3.57

92022B

WASHER,6.2X11X1

92022-304

$2.76

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92055

RING-O,WATER PUMP

92055-0010

$5.86

92055A

RING-O,18.8X2.4

92055-1308

$4.18

92055B

RING-O,35.2X1.9

92055-520

$4.04

92154

BOLT,FLANGED,6X14

92154-1925

$0.60

92154A

BOLT,FLANGED,6X18

92154-1927

$0.93

92154B

BOLT,FLANGED,6X65

92154-1929

$1.32

92154C

BOLT,FLANGED,6X55

92154-2093

$2.51

92200

WASHER,6.1X10.0X1.0

92200-0190

$1.85

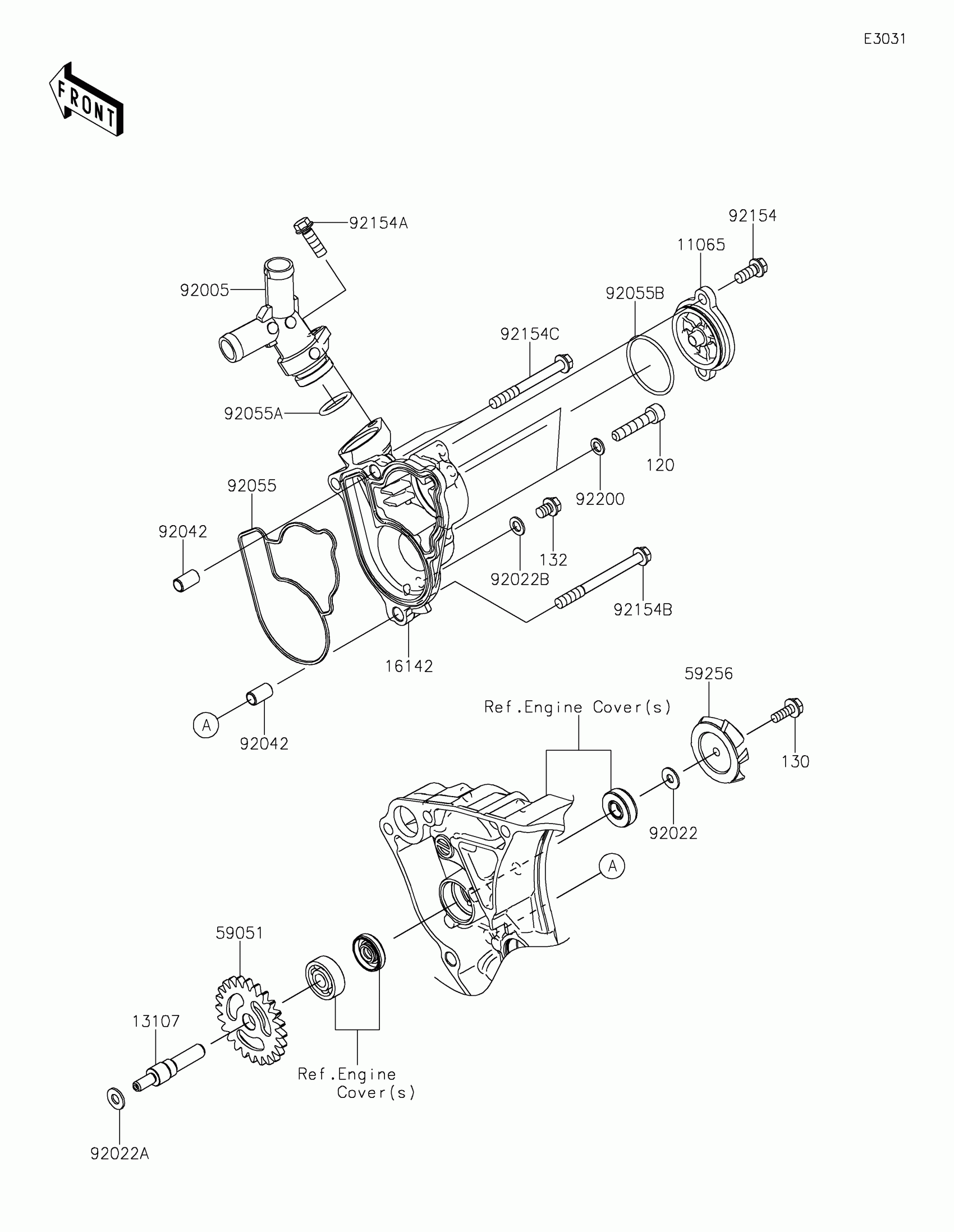

Kawasaki KX250 Water Pump Diagram

CAP
