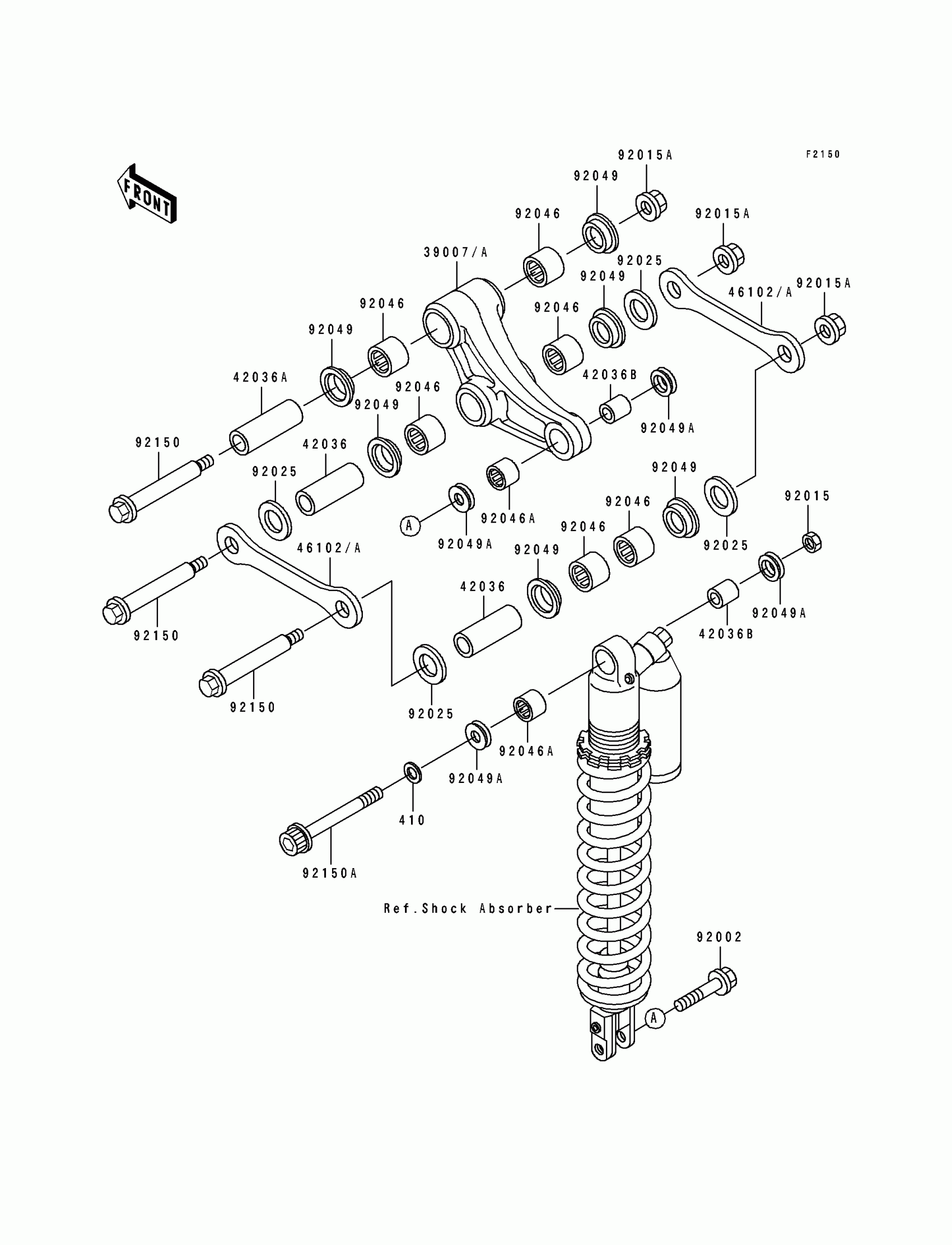

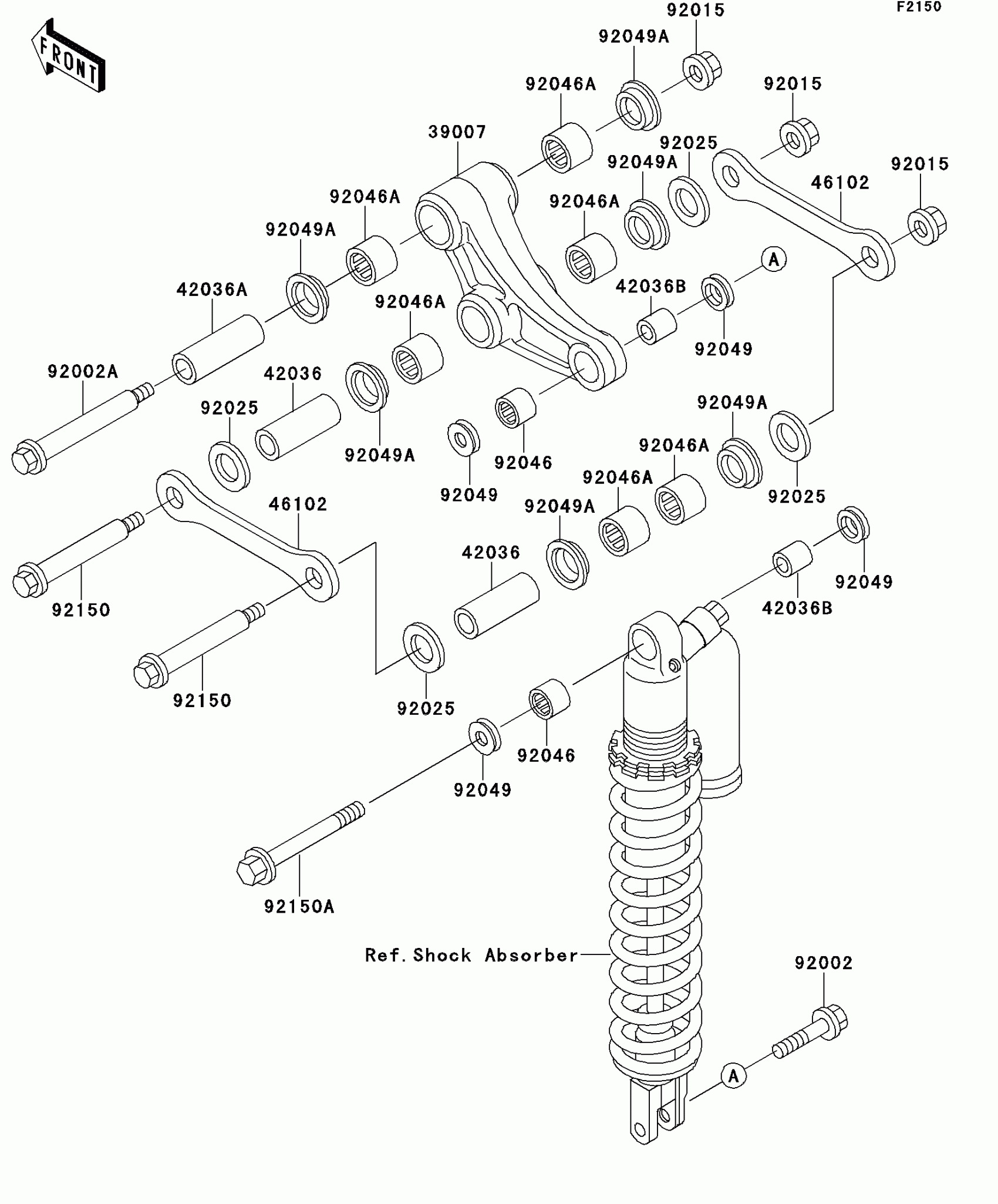

Kawasaki KX250 Suspension Diagram

#

Description
Price

39007A

ARM-SUSP,UNI TRAK

39007-1197

Unavailable

42036

SLEEVE,15X22X57

42036-1245

$19.97

42036A

SLEEVE,15X22X63

42036-1246

$24.44

42036B

SLEEVE,10X16X19

42036-1248

$7.86

46102A

ROD,SUSPENSION

46102-1293

Unavailable

92002

BOLT,10X40

92002-1675

$9.78

92015

NUT,10MM

92015-1429

$5.45

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$7.04

92025

SHIM,15.3X27.5X0.6

92025-1135

$3.48

92046

BEARING-NEEDLE,F-2220

92046-1162

$19.68

92046A

BEARING-NEEDLE,16BM2212

92046-1192

$14.31

92049

SEAL-OIL,MHA22 28 5.7F

92049-1254

$7.38

92049A

SEAL-OIL

92049-1330

$9.74

92150

BOLT,ROD,12X93

92150-1337

$30.29

92150A

BOLT,SOCKET,10X95

92150-1386

Unavailable

410

WASHER PLAIN 10MM

410B1000

Unavailable
