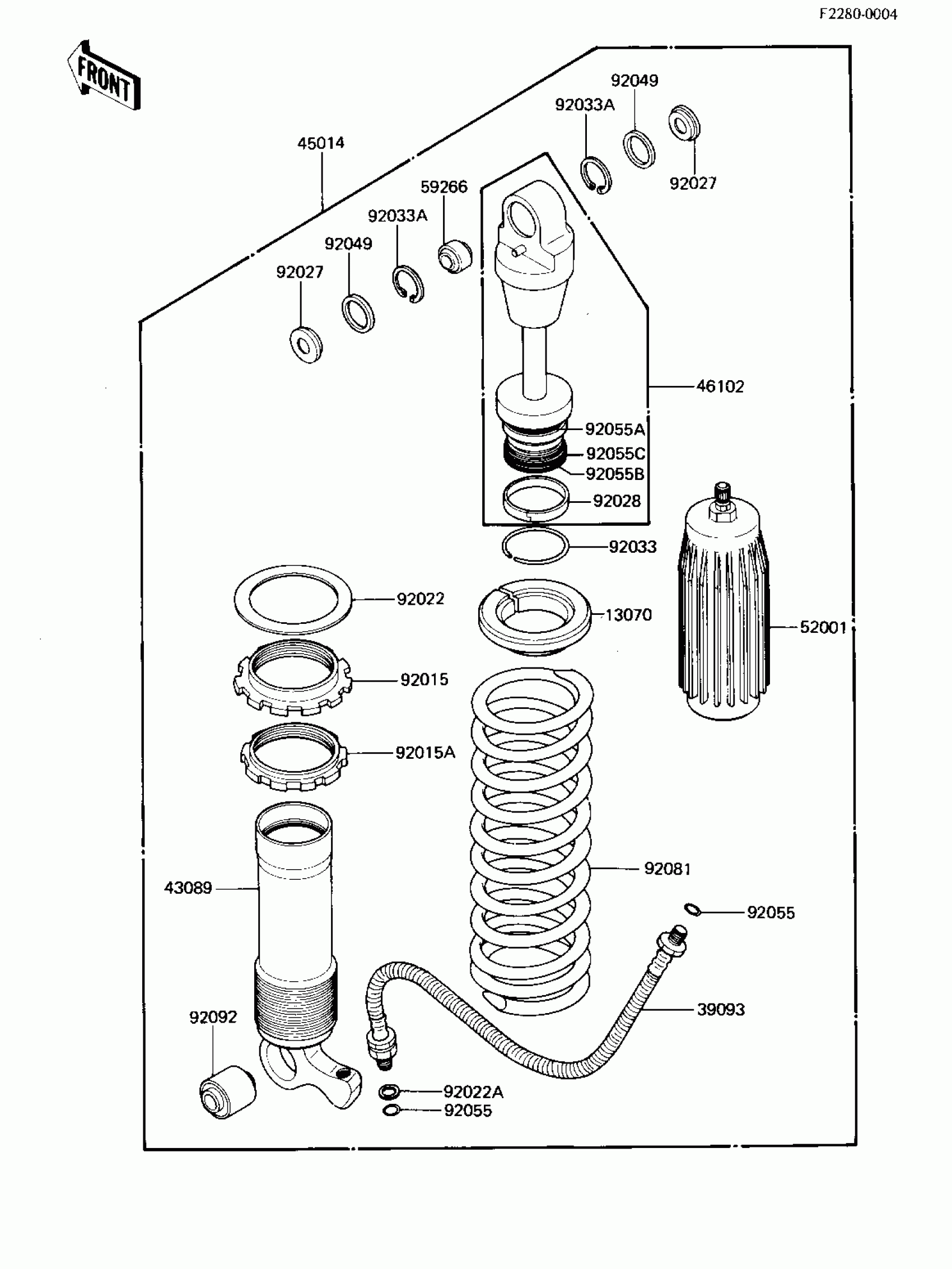

Kawasaki KX250 SHOCK ABSORBER Diagram

#

Description
Price

13070

GUIDE,SPRING

13070-1058

Unavailable

39093

PIPE-COMP-SUSP

39093-1081

$112.92

43089

CYLINDER-SHOCKABSORBE

43089-1033

$395.37

45014

SHOCK ABSBR RR

45014-1159

$720.82

46102

ROD,PISTON

46102-1044

$505.53

52001

TANK-OIL,REARSHOCK

52001-1013

$291.83

59266

JOINT-BALL

59266-1051

Unavailable

92015

NUT,SPRING ADJUST

92015-1186

$60.64

92015A

NUT,SPRING ADJUST LOC

92015-1187

$52.02

92022

WASHER,SPRING

92022-1235

$9.85

92022A

WASHER,REAR SHOCK

92022-1297

Unavailable

92027

COLLAR,REAR SHOCK

92027-1417

$11.54

92028

BUSHING,REAR SHOCK

92028-1127

Unavailable

92033

RING-SNAP,AIR VALVE

92033-1061

$3.31

92033A

RING-SNAP,REAR SHOCK

92033-1076

$2.78

92049

SEAL-OIL,REARSHOCK

92049-1093

Unavailable

92055

"0" RING

92055-1099

Unavailable

92055A

"0" RING,REAR SHOCK

92055-1102

$4.75

92055B

"0" RING,REAR SHOCK

92055-1103

Unavailable

92055C

RING-O,REAR SHOCK

92055-1121

Unavailable

92081

SPRING,RR SHOCK

92081-1468

$226.72

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1008

$35.15
