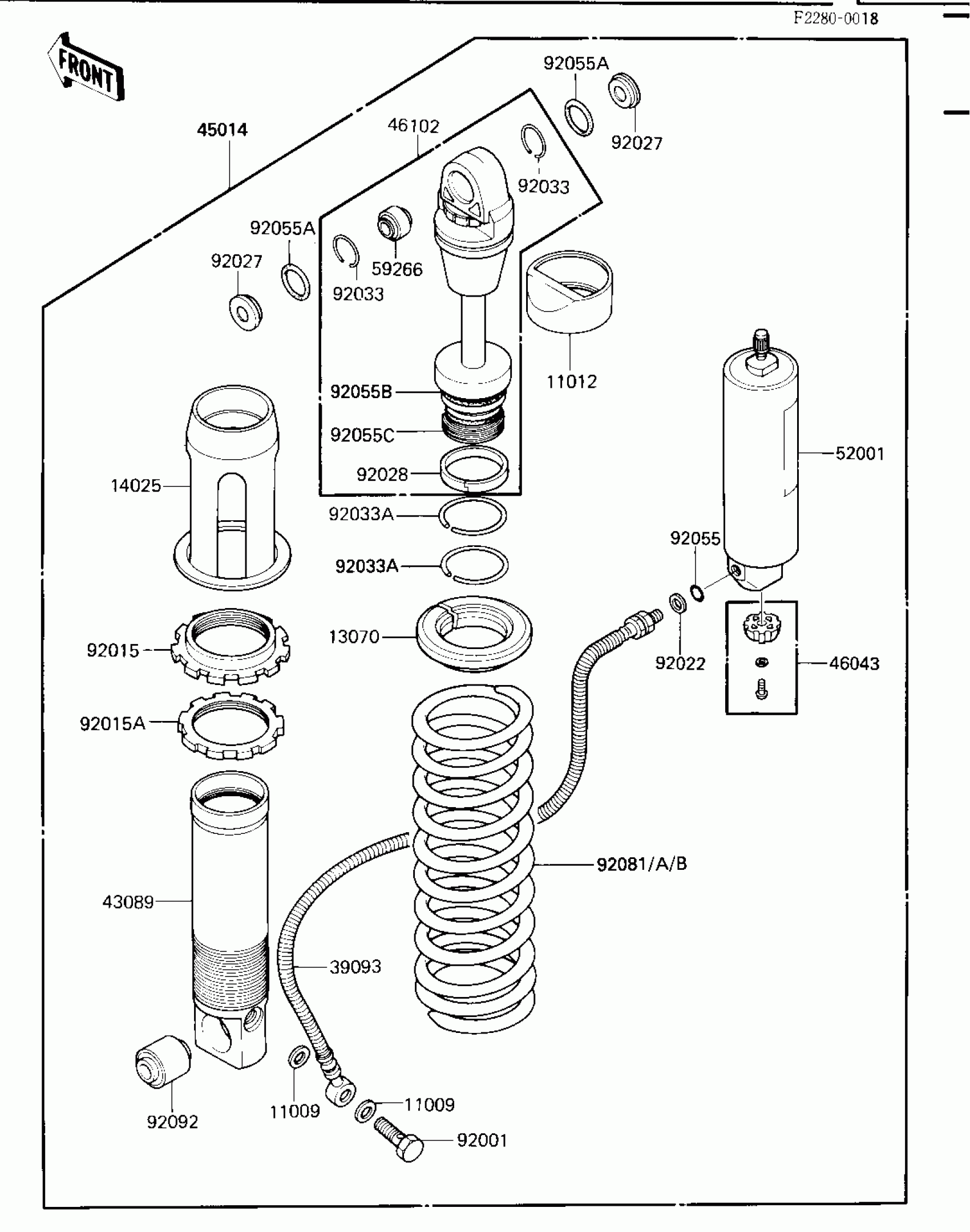

Kawasaki KX250 SHOCK ABSORBER ('84 KX250-C2) Diagram

#

Description
Price

11009

GASKET

44045-057

$3.86

11012

CAP,REARSHOCK

11012-1278

Unavailable

13070

GUIDE,SPRING

13070-1075

Unavailable

14025

COVER,SHOCKABSORBER

14025-1664

Unavailable

39093

PIPE-COMP-SUSP

39093-1102

$138.24

43089

CYLINDER-SHOCKABSORBE

43089-1102

$344.67

45014

SHOCKABSORBER,RR

45014-1258

$1,221.64

46043

KNOB-ASSY,REAR SHOCK

46043-1051

Unavailable

46102

ROD,SHOCKABSORBER

46102-1116

$648.24

52001

TANK-OIL,REARSHOCK

52001-1052

$288.82

59266

JOINT-BALL

59266-1053

$119.17

92001

BOLT,BANJO

92001-1752

Unavailable

92015

NUT,SPRING ADJUST LOC

92015-1238

Unavailable

92015A

NUT,SPRING ADJUST

92015-1239

$52.18

92022

WASHER,REAR SHOCK

92022-1297

Unavailable

92027

COLLAR,REARSHOCK

92027-1534

Unavailable

92028

BUSHING,ROD

92028-1288

Unavailable

92033

RING-SNAP

92033-1090

$4.76

92033A

RING-SNAP,REARSHOCK

92033-1091

$4.39

92055

"0" RING

92055-1099

Unavailable

92055A

RING-O

92055-1156

$1.25

92055B

RING-O,ROD

92055-1181

Unavailable

92055C

RING-O,ROD

92055-1234

Unavailable

92081

SPRING,SHOCKABSORBER,

92081-1573

$316.38

92081A

SPRING,SHOCKABSORBER

92081-1574

$315.81

92081B

SPRING

92081-1575

$248.15

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1008

$35.15
