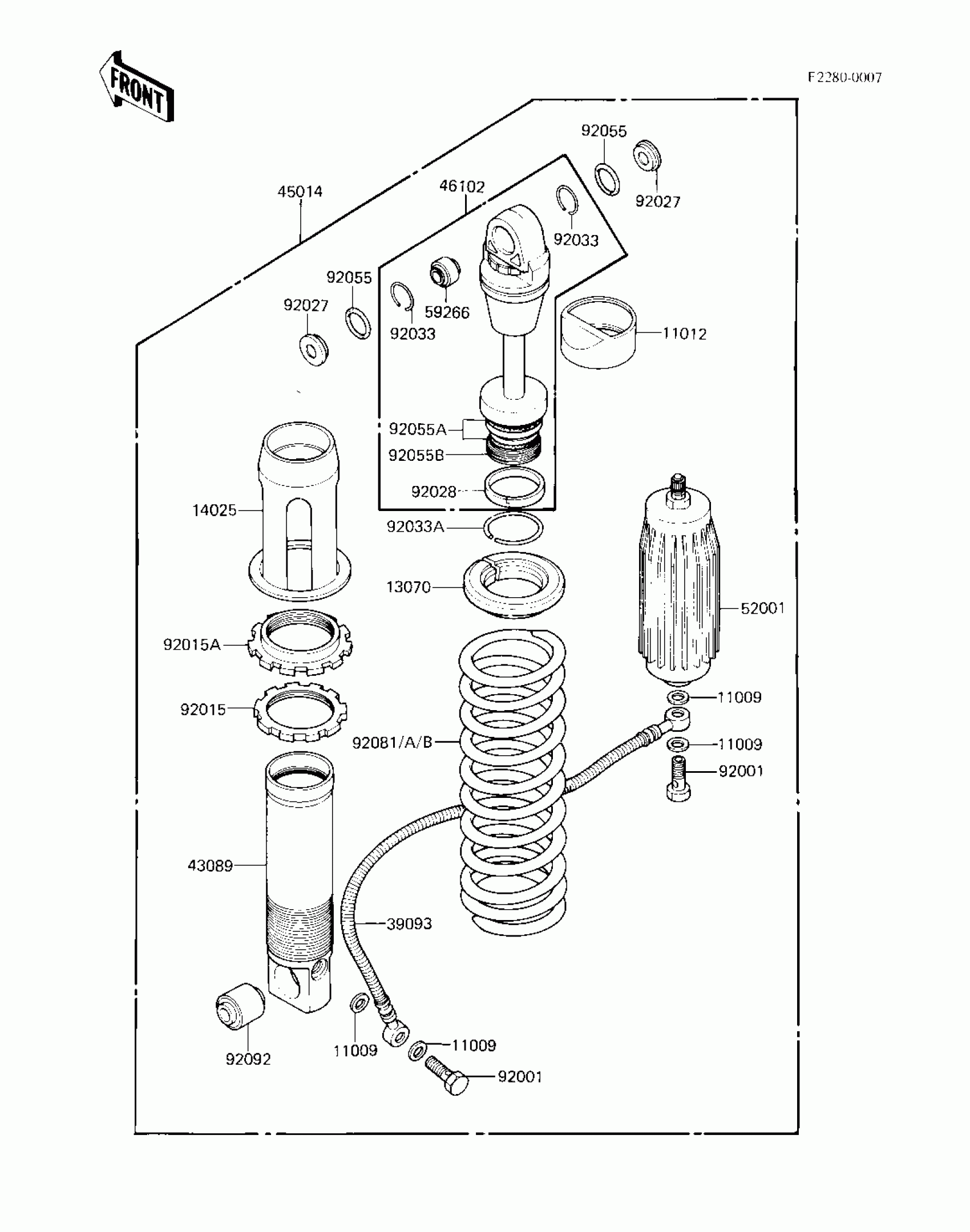

Kawasaki KX250 SHOCK ABSORBER ('83 KX250-C1) Diagram

Description

Price

11009

GASKET

44045-057

$3.86

11012

CAP,REARSHOCK

11012-1278

Unavailable

13070

GUIDE,SPRING

13070-1075

Unavailable

14025

COVER,SHOCKABSORBER

14025-1664

Unavailable

39093

PIPE-COMP-SUSP

39093-1083

$220.88

43089

CYLINDER-SHOCKABSORBE

43089-1049

$395.37

45014

SHOCKABSORBER,RR

45014-1224

$1,221.64

46102

ROD,SHOCKABSORBER

46102-1067

$647.03

52001

TANK-OIL,REARSHOCK

52001-1017

$288.28

59266

JOINT-BALL

59266-1014

Unavailable

92001

BOLT,BANJO

92001-1752

Unavailable

92015

NUT,SPRING ADJUST LOC

92015-1238

Unavailable

92015A

NUT,SPRING ADJUST

92015-1239

$52.18

92027

COLLAR,REARSHOCK

92027-1534

Unavailable

92028

BUSHING,ROD

92028-1198

Unavailable

92033

RING-SNAP

92033-1090

$4.76

92033A

RING-SNAP,REARSHOCK

92033-1091

$4.39

92055

RING-O

92055-1156

$1.25

92055A

RING-O,ROD

92055-1181

Unavailable

92055B

RING-O,ROD

92055-1158

Unavailable

92081

SPRING,SHOCKABSORBER

92081-1517

$316.38

92081A

SPRING,SHOCKABSORBER,

92081-1523

$274.17

92081B

SPRING,SHOCKABSORBER,

92081-1558

$315.81

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1008

$35.15
