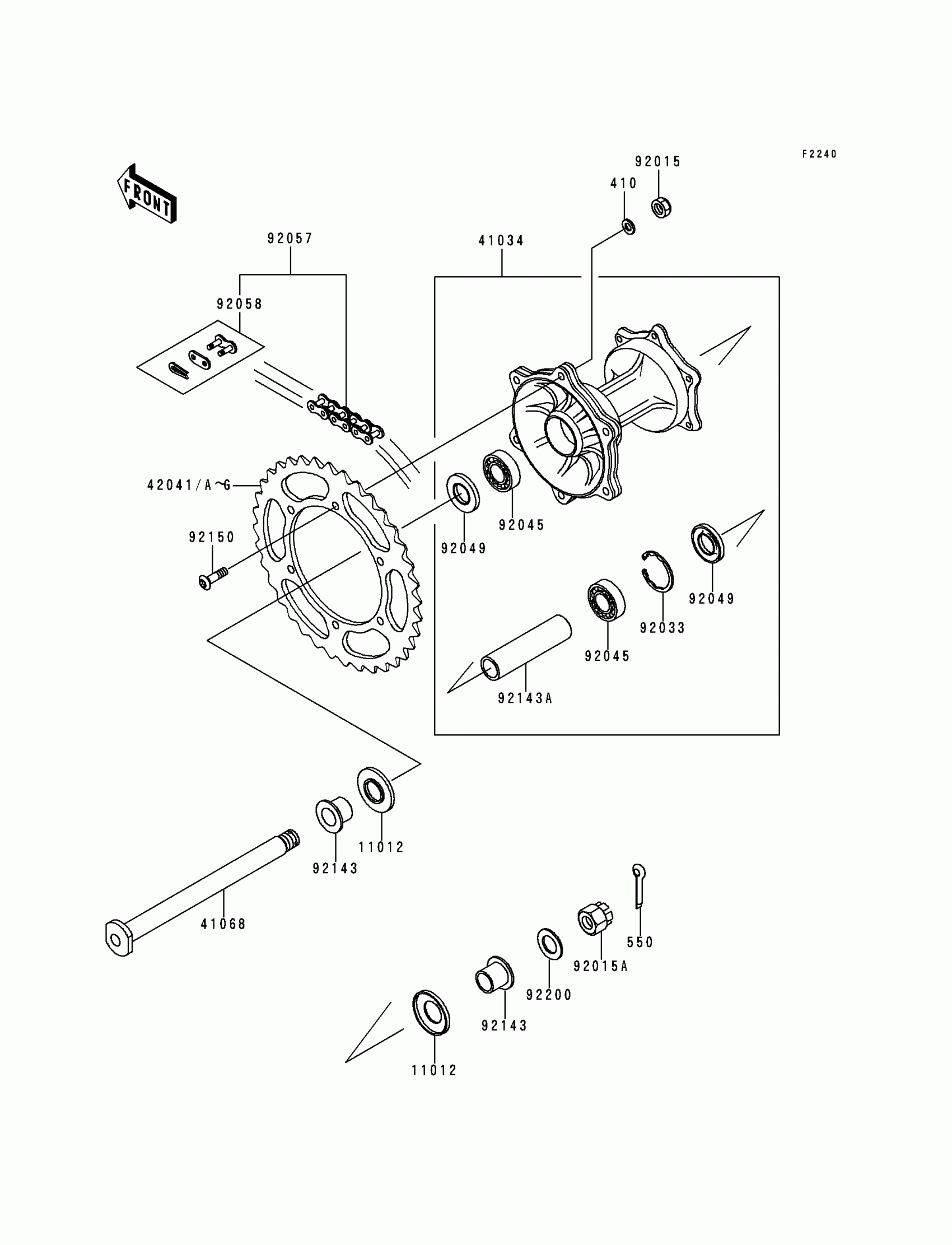

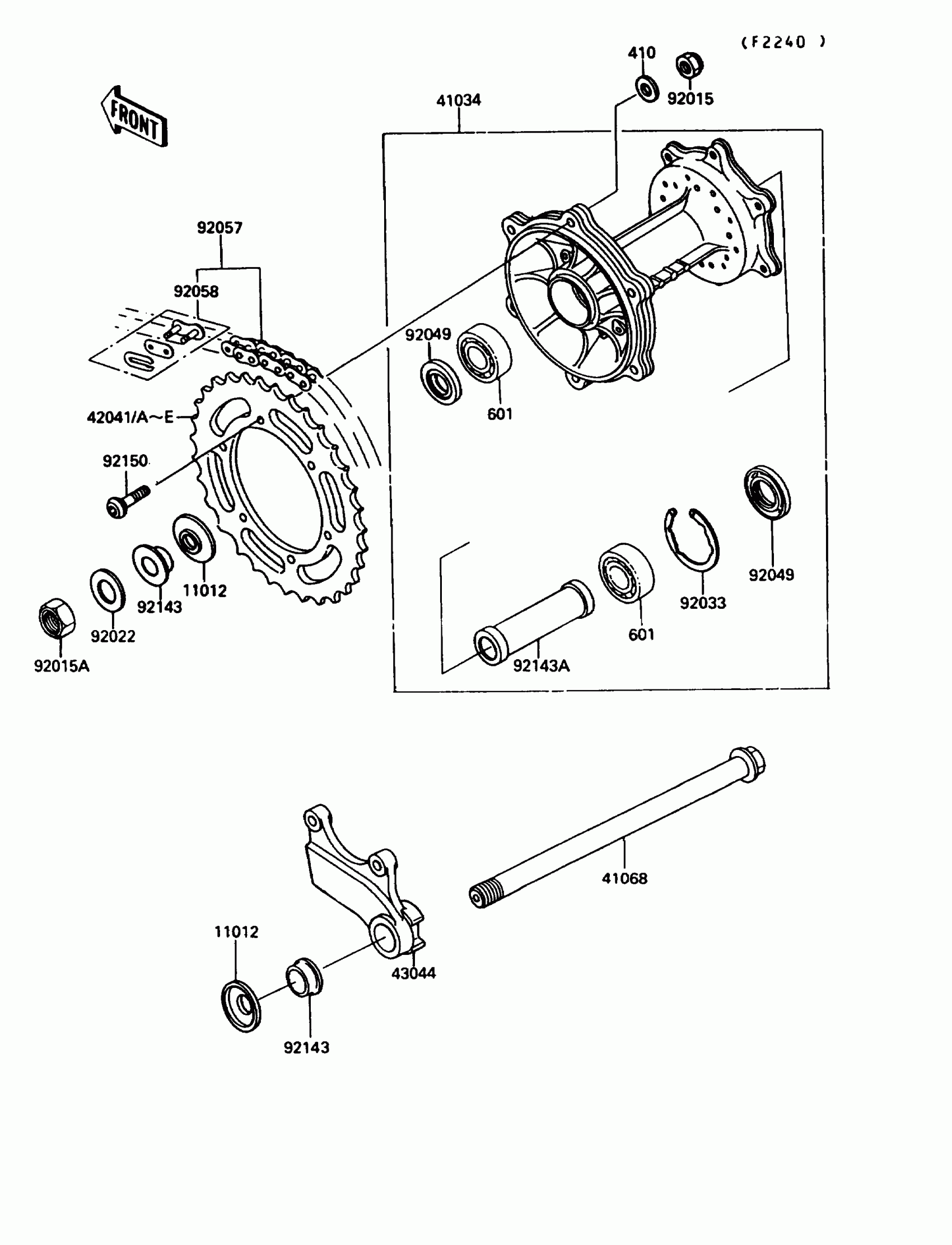

Kawasaki KX250 Rear Hub Diagram

#

Description
Price

11012

CAP,AXLE

11012-1581

$4.88

41034

DRUM-ASSY,REAR BRAKE

41034-1184

$611.97

41068

AXLE,RR

41068-1277

Unavailable

42041

SPROCKET-HUB,45T,AL

42041-1154

Unavailable

42041A

SPROCKET-HUB,49T,AL

42041-1256

$113.11

42041B

SPROCKET-HUB,48T,AL

42041-1257

$141.34

42041C

SPROCKET-HUB,47T,AL

42041-1258

$141.34

42041D

SPROCKET-HUB,46T,AL

42041-1259

$138.73

42041E

SPROCKET-HUB,47T

42041-1274

$80.77

43044

HOLDER-COMP-CALIPER

43044-1082

$143.40

92015

NUT,LOCK,8MM

92015-1124

$4.10

92015A

NUT,LOCK,20MM

92015-1770

$28.80

92022

WASHER,20.1X34X2.0

92022-1994

Unavailable

92033

RING-SNAP,42MM

92033-1041

$4.64

92049

SEAL-OIL,BJNC2 25425

92049-1203

$16.78

92057

CHAIN,DRIVE,DID520DS5X114L

92057-1202

$167.98

92058

JOINT-CHAIN,DRIVE

92058-1013

Unavailable

92143

COLLAR,RR AXLE,L=22

92143-1259

$36.10

92143A

COLLAR,RR BRAKE DRUM,L=105

92143-1260

Unavailable

92150

BOLT,SOCKET,8X28

92150-1196

$6.55

410

WASHER PLAIN 8MM

410B0800

Unavailable

601

BEARING-BALL,#6004UG

601B6004UG

$37.82
