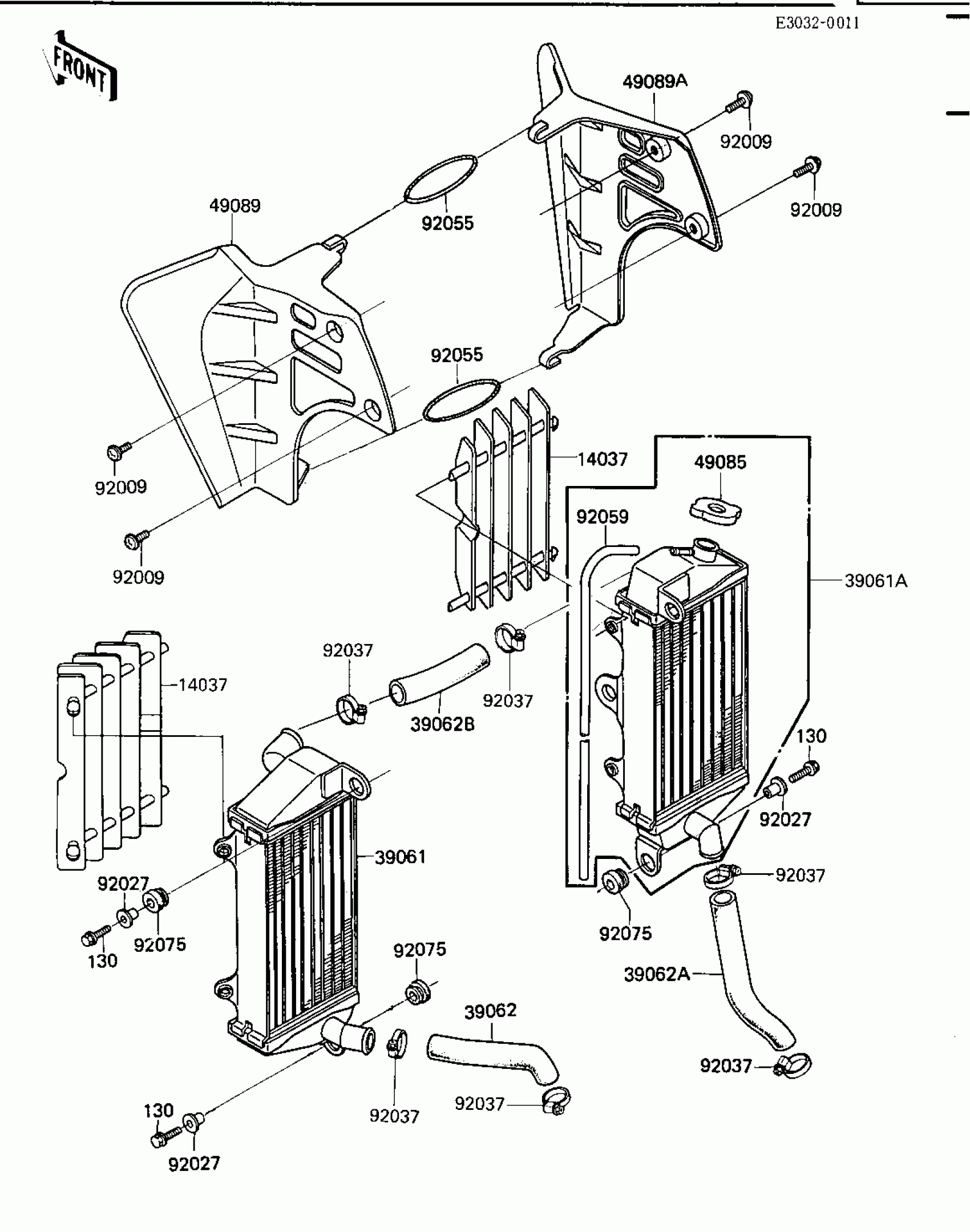

Kawasaki KX250 RADIATORS ('84 KX250-C2) Diagram

Description

Price

14037

SCREEN,RADIATOR,EBON

14037-1077-6C

Unavailable

39061

EXCHANGER-ASSY-HEAT,L

39061-1051

$433.82

39061A

EXCHANGER-ASSY-HEAT,R

39061-1052

$433.02

39062

HOSE-COOLING,CYLINDER

39062-1053

$9.17

39062A

HOSE-COOLING,RADIATOR

39062-1054

Unavailable

39062B

HOSE-COOLING,RADIATOR

39062-1074

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1003

$33.98

49089

SHROUD-ENGINE,LH,L.GR

49089-1051-6W

Unavailable

49089A

SHROUD-ENGINE,RH,L.GR

49089-1052-6W

Unavailable

92009

SCREW,6X10,WHITE

92009-1286

$3.43

92027

COLLAR,6.5X10X14.1

92027-1183

$4.37

92037

CLAMP,COOLING HOSE

92037-1589

$14.60

92055

RING-O

92055-1001

Unavailable

92059

TUBE,5X9X800

92059-1383

$7.65

92075

DAMPER

92075-1352

$5.16

130

BOLT-FLANGED,6X20

130G0620

Unavailable
