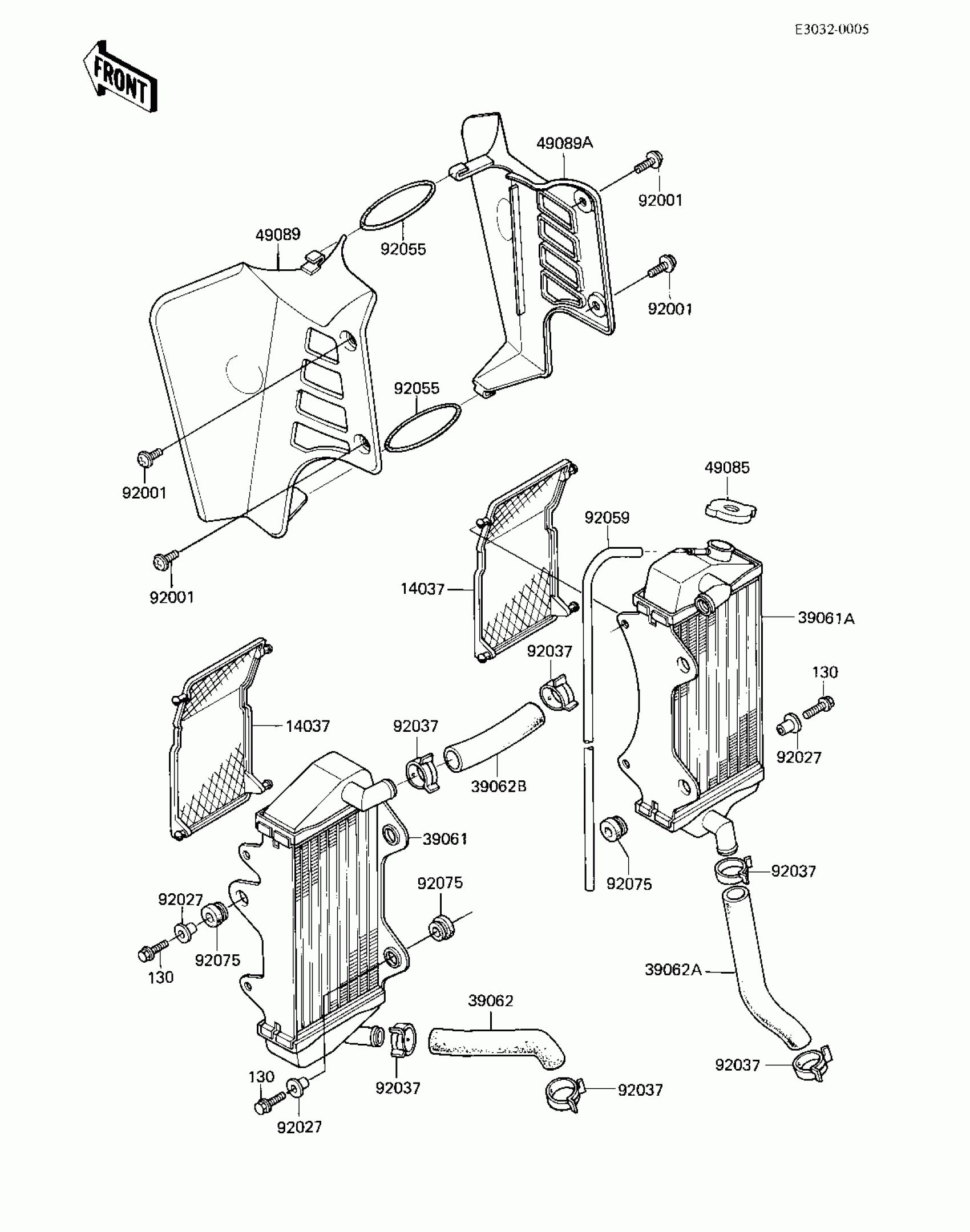

Kawasaki KX250 RADIATORS ('83 KX250-C1) Diagram

Description

Price

14037

SCREEN,RADIATOR

14037-1006

$27.00

39061

RADIATOR,LH

39061-1014

$370.29

39061A

RADIATOR,RH

39061-1015

$370.29

39062

HOSE-COOLING,ACCUMULA

39062-1011

$22.68

39062A

HOSE-COOLING,RADIATOR

39062-1012

$19.03

39062B

HOSE-COOLING,RADIATOR

39062-1017

$7.29

49085

CAP-ASSY-PRESSURE

49085-1003

$33.98

49089

SHROUD-ENGINE,LH,L.GR

49089-1004-6W

$93.37

49089A

SHROUD-ENGINE,RH,L.GR

49089-1005-6W

$93.37

92001

SCREW,6X10,WHITE

92009-1286

$3.43

92027

COLLAR,6.5X10X14.1

92027-1183

$4.37

92037

CLAMP,COOLING HOSE

92037-1364

Unavailable

92055

RING-O

92055-1001

Unavailable

92059

TUBE,5X9X800

92059-1383

$7.65

92075

DAMPER

92075-1352

$5.16

130

BOLT-FLANGED,6X20

130G0620

Unavailable
