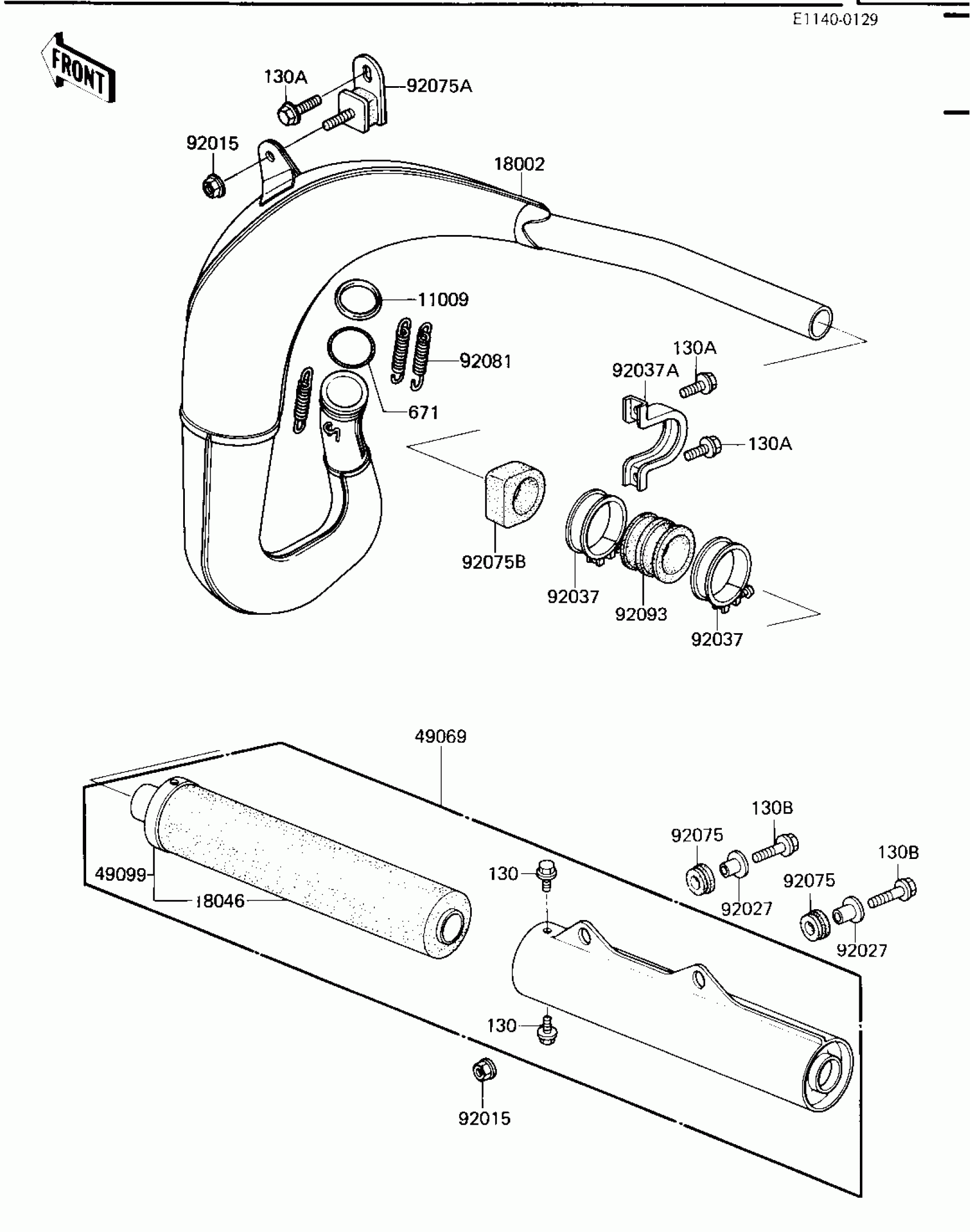

Kawasaki KX250 MUFFLER ('84 KX250-C2) Diagram

Description

Price

11009

GASKET,EXHAUST PIPE

11009-1253

Unavailable

18002

BODY-COMP-MUFFLER

18002-1433

Unavailable

18046

WOOL,MUFFLER BAFFLE

18046-1075

$47.88

49069

MUFFLER-ASSY

49069-1072

$381.89

49099

BAFFLE-PIPE MUFFLER

49099-1110

$89.73

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92027

COLLAR,L=12

92027-1062

$7.25

92037

CLAMP,CARBURETOR,40MM

92037-1129

$7.60

92037A

CLAMP,MUFFLER

92037-1372

$9.17

92075

DAMPER,RUBBER

92075-1123

$3.97

92075A

DAMPER,MUFFLER

92075-1891

$29.76

92075B

DAMPER,MUFFLER

92075-1428

$37.20

92081

SPRING

92081-1526

$9.32

92093

SEAL,MUFFLER

92093-1085

Unavailable

130

BOLT-FLANGED,5X8

130G0508

Unavailable

130A

BOLT,FLANGED,6X14

130G0614

Unavailable

130B

BOLT,FLANGED,6X25

130G0625

Unavailable

671

O RING,50MM

671E2550

$12.13
