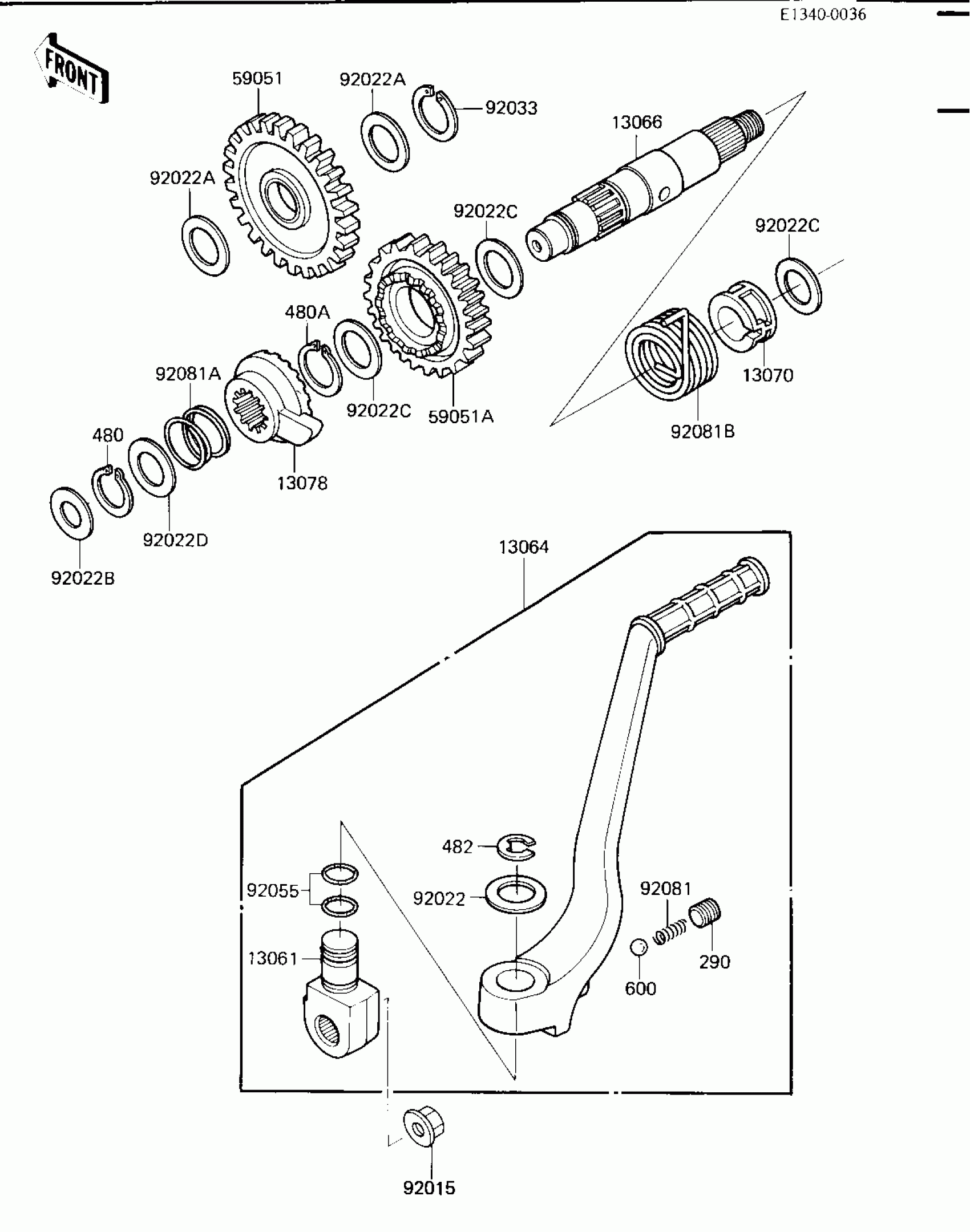

Kawasaki KX250 KICKSTARTER MECHANISM ('84 KX250-C2) Diagram

Description

Price

13061

BOSS,KICK PEDAL

13061-1113

Unavailable

13064

LEVER-ASSY-KICK,PEDA

13064-1105

Unavailable

13066

SHAFT-KICK

13066-1052

Unavailable

13070

GUIDE,KICK SPRING

13070-1063

$19.54

13078

RATCHET

13078-1061

Unavailable

59051

IDLE GEAR, KICKSTRTE

59051-1022

Unavailable

59051A

GEAR-SPUR,KICKSTARTE

59051-1051

$141.45

92015

NUT,FLANGED,10MM

92015-1428

$3.97

92022

WASHER,16.3X24X1

92022-1205

Unavailable

92022A

WASHER,20.5X25.5X0.5

92022-252

$4.93

92022B

WASHER,12.3X20X0.5

92022-269

$1.14

92022C

WASHER,18.3X22X0.5

92022-271

$4.37

92022D

WASHER,16.8X22X0.5

92022-315

$4.93

92033

RING-SNAP,18MM

92033-029

$7.79

92055

RING-O,12X1.5

92055-025

$3.72

92081

SPRING,KICK PEDAL

92081-020

$3.39

92081A

SPRING,RATCHET

92081-122

$6.98

92081B

SPRING,KICKSTARTER

92081-1253

Unavailable

290

SCREW-SET-SOCKET

290P0816

Unavailable

480

CIRCLIP-TYPE-C,16MM

480J1600

$3.43

480A

CIRCLIP-TYPE-C,18MM

480J1800

$1.14

482

CIRCLIP-TYPE-E

482L0200

Unavailable

600

BALL-STEEL,1/4

600A0800

$0.67
