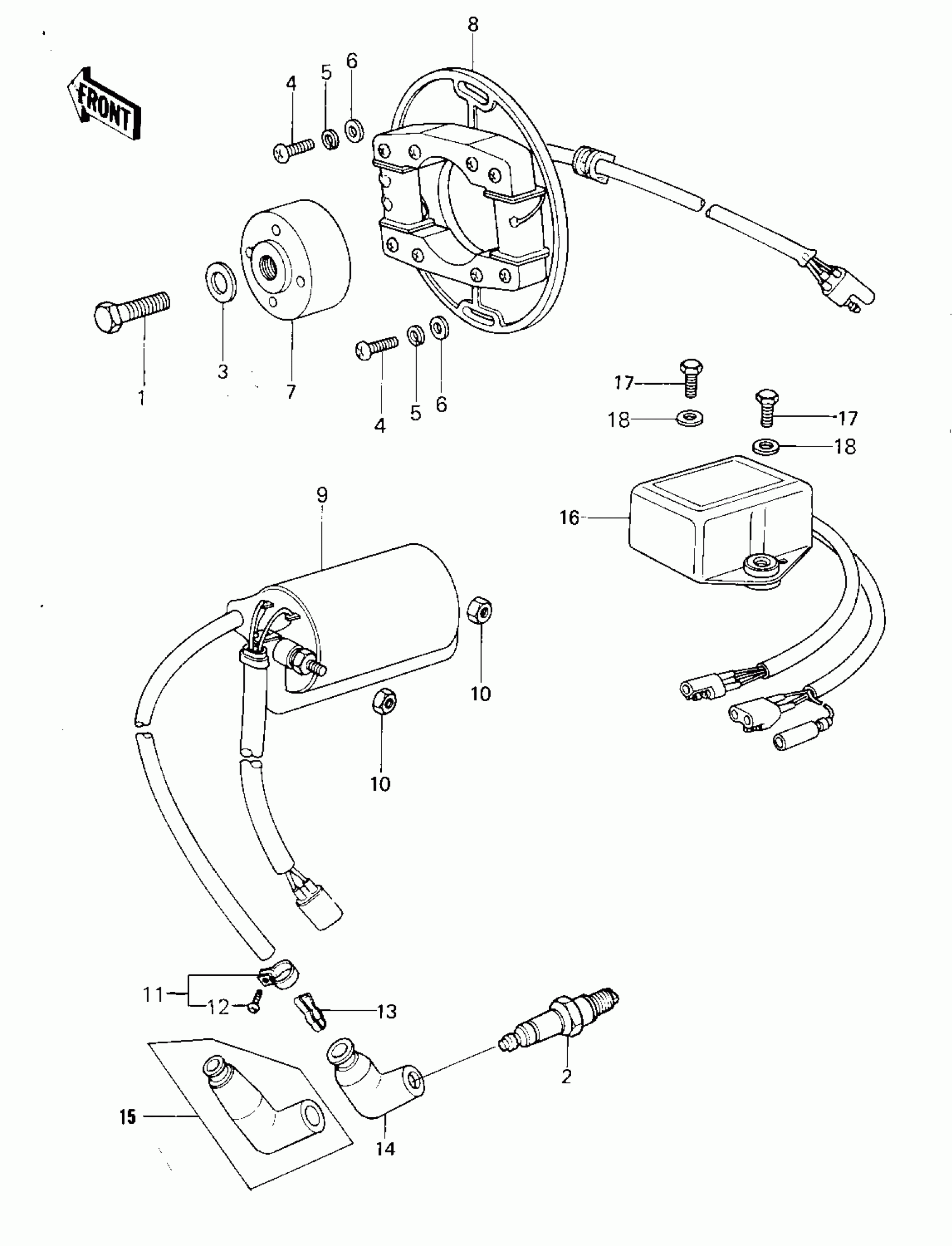

Kawasaki KX250 IGNITION Diagram

#

Description
Price

1

BOLT

92001-1578

$6.81

1

BOLT-HEX HEAD 8X30

114G0830

Unavailable

2

Roadster Spyder RT-LTD (SE6), Cognac | North America

B9EV

$11.29

2

SPARK PLUG BR9EV

92070-3002

$11.29

3

WASHER,8.5X22X3.2

92022-276

$7.91

4

SCREW PAN HEAD 6X25

220B0625

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

WASHER PLAIN 6MM

411B0600

Unavailable

7

ROTOR,MAGNETO

21007-1028

$392.77

8

STATOR ASSY,MAGNETO

21003-1033

$524.17

9

COIL,IGNITION

21121-1007

$268.23

10

NUT,LOCK,6MM

92019-008

$3.36

11

CLAMP

92037-1173

$2.92

12

SCREW-PAN-CROS

220B0310

$3.44

12

SCREW-PAN-CROS

220B0310

$3.44

13

TERMINAL,PLUG CAP

21169-001

Unavailable

14

CAP-SPARK PLUG

21130-1006

Unavailable

15

CAP-ASSY-PLUG

21160-1009

Unavailable

16

IGNITER

21119-1018

$355.67

17

BOLT-UPSET

112G0618

Unavailable

18

WASHER PLAIN

92022-024

$2.92
