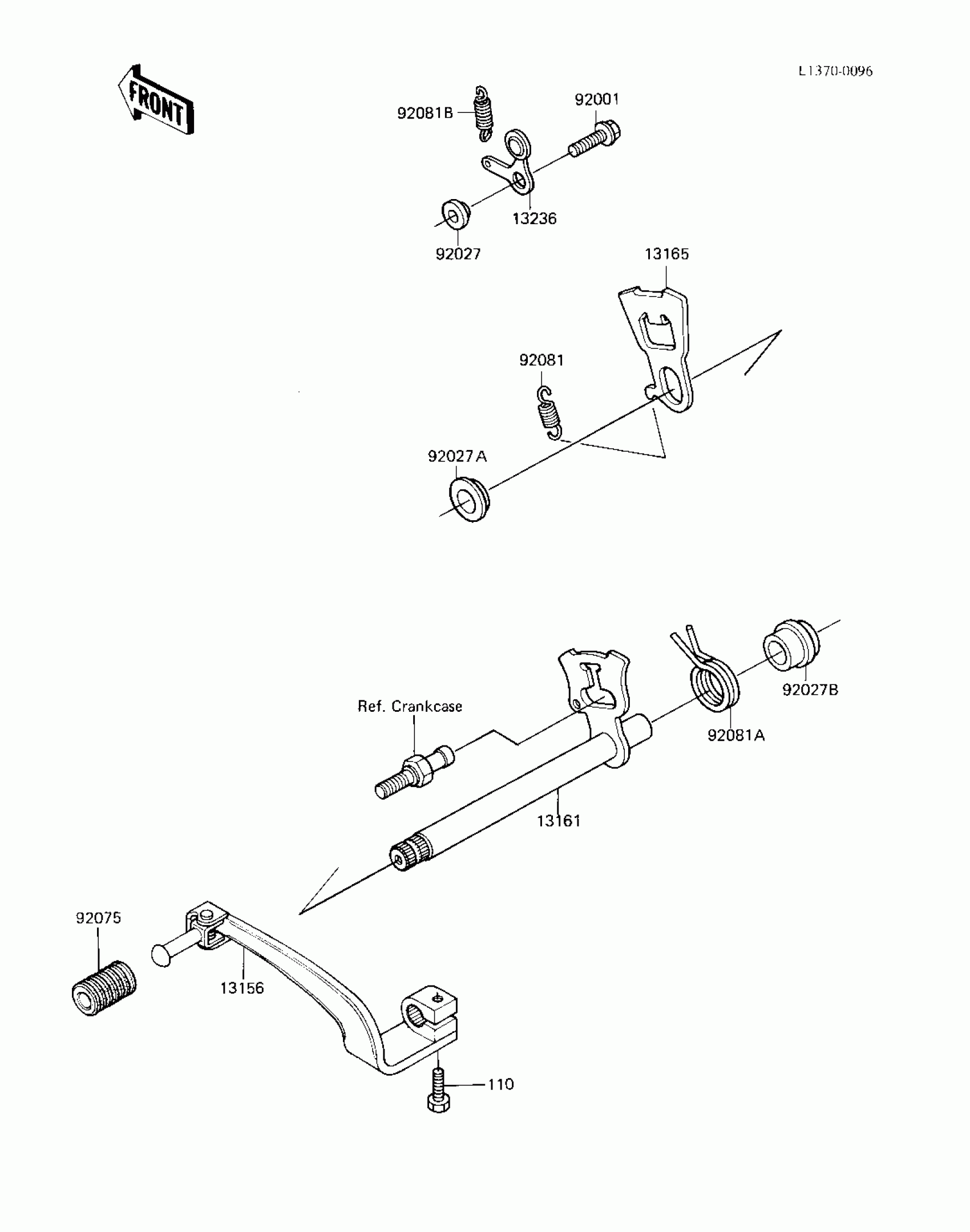

Kawasaki KX250 GEAR CHANGE MECHANISM ('83 KX250-C1) Diagram

#

Description

Price

13156

LEVER-CHANGE,PEDAL

13156-1113

Unavailable

13161

LEVER-COMP-CHANGE SHA

13161-1042

Unavailable

13165

PAWL,CHANGE LEVER

13165-1038

Unavailable

13236

LEVER,CHANGE DRUM

13236-1021

Unavailable

92001

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

92027

COLLAR

92027-1248

Unavailable

92027A

COLLAR,CHANGE SHAFT,L=5.5

92027-1512

Unavailable

92027B

COLLAR,RETURN SPRING,

92027-1513

$4.02

92075

DAMPER

92075-1310

Unavailable

92081

SPRING,CHANGE LEVER

92081-076

$4.34

92081A

SPRING,TENSION

92081-1129

$7.48

92081B

SPRING,CHANGE DRUM LEVER

92083-012

$3.69

110

BOLT-UPSET

112G0625

Unavailable
