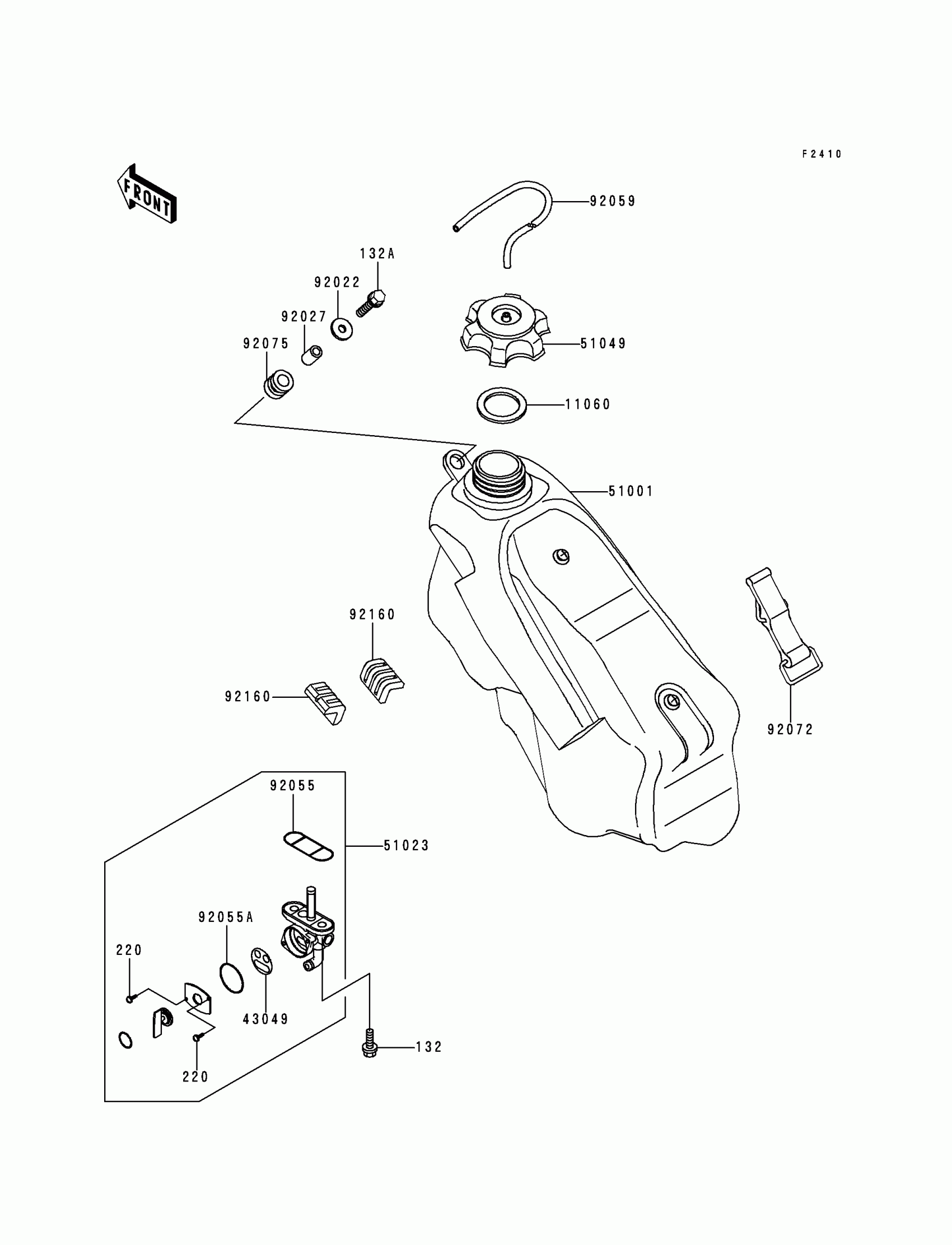

Kawasaki KX250 FUEL TANK Diagram

#

Description
Price

1

TUBE,5X5.6X280

92059-1109

Unavailable

2

CAP-TANK,FUEL

51049-1006

Unavailable

3

GASKET,FUEL TANK CAP

11009-1452

$18.25

4

TANK-FUEL,L.GREEN

51001-1030-7F

Unavailable

5

O RING,70MM

671B2570

$7.49

5-1

BAND,FUEL TANK

92072-042

$11.53

6

BOLT-UPSET,6X105

112G06105

Unavailable

7

BRACKET,TANK

32052-1031

$12.47

8

DAMPER,FUEL TANK FITT

92075-1220

Unavailable

9

COLLAR,FUEL TANK FIT

92027-1228

Unavailable

10

NUT,LOCK,6MM

92019-008

$3.12

11

BOLT-UPSET,6X12

112G0612

Unavailable

12

COCK ASSY,FUEL

51023-4002

Unavailable

13

WASHER-PLAIN

92022-183

$2.99

14

WASHER SPRING 6MM

461F0600

Unavailable

15

BOLT-HEX HEAD,6X16

92001-114

$3.92

16

DAMPER,FUEL TANK

92075-1221

Unavailable

16

DAMPER,FUEL TANK

92075-1277

$11.88

17

BRACKET,FUEL TANK

32052-1009

$6.42

18

RING,TAP FLANGED

51039-003

$4.71

19

WASHER

92022-4013

$0.59
