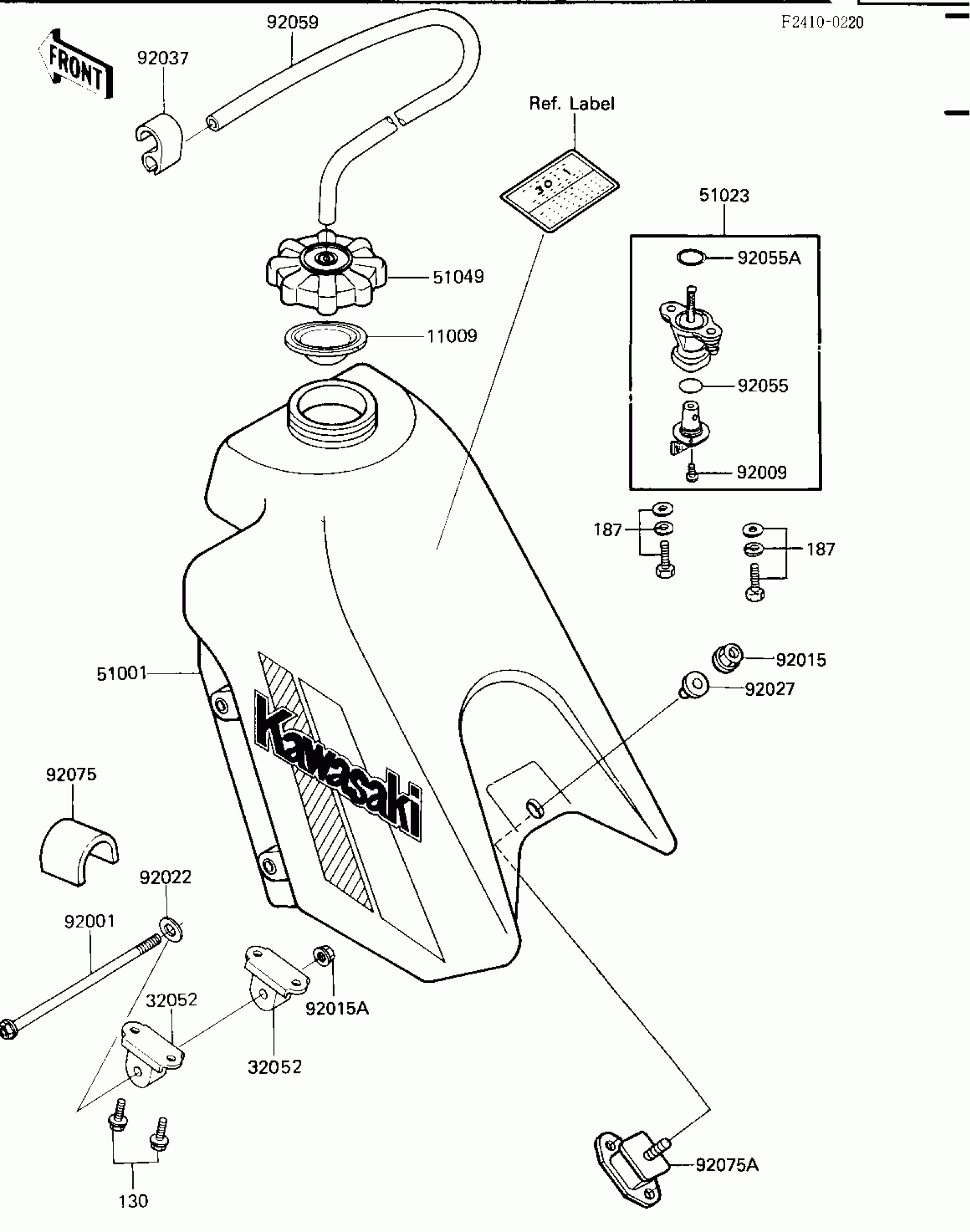

Kawasaki KX250 FUEL TANK ('84 KX250-C2) Diagram

Description

Price

11009

GASKET,FUEL TANK CAP

11009-1452

$20.94

32052

BRACKET-TANK

32052-1104

Unavailable

51001

TANK-COMP-FUEL,L.GREE

51001-5413-6W

Unavailable

51023

TAP-ASSY,FUEL

51023-1115

Unavailable

51049

CAP-TANK,FUEL

51049-1006

Unavailable

92001

BOLT,FLANGED,6X120

92001-1907

Unavailable

92009

SCREW-PAN-CROS,3X8

220E0308

$4.10

92015

NUT,8MM

92015-1143

$0.66

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,9X24X3.2

92022-1295

$8.27

92027

COLLAR

92027-1745

$6.82

92037

CLAMP,TUBE

92037-1377

Unavailable

92055

RING-O,FUEL TAP LEVER

92055-1299

$1.19

92055A

RING-O,FUEL TAP PACKING

92055-1300

$6.34

92059

TUBE,5X9X250

92059-1258

$11.19

92075

DAMPER,FUEL TANK

92075-1382

$26.48

92075A

DAMPER,FUEL TANK

92075-1587

Unavailable

130

BOLT-FLANGED,6X12

130G0612

Unavailable

187

BOLT-UPSET-WSP

187B0616

Unavailable
