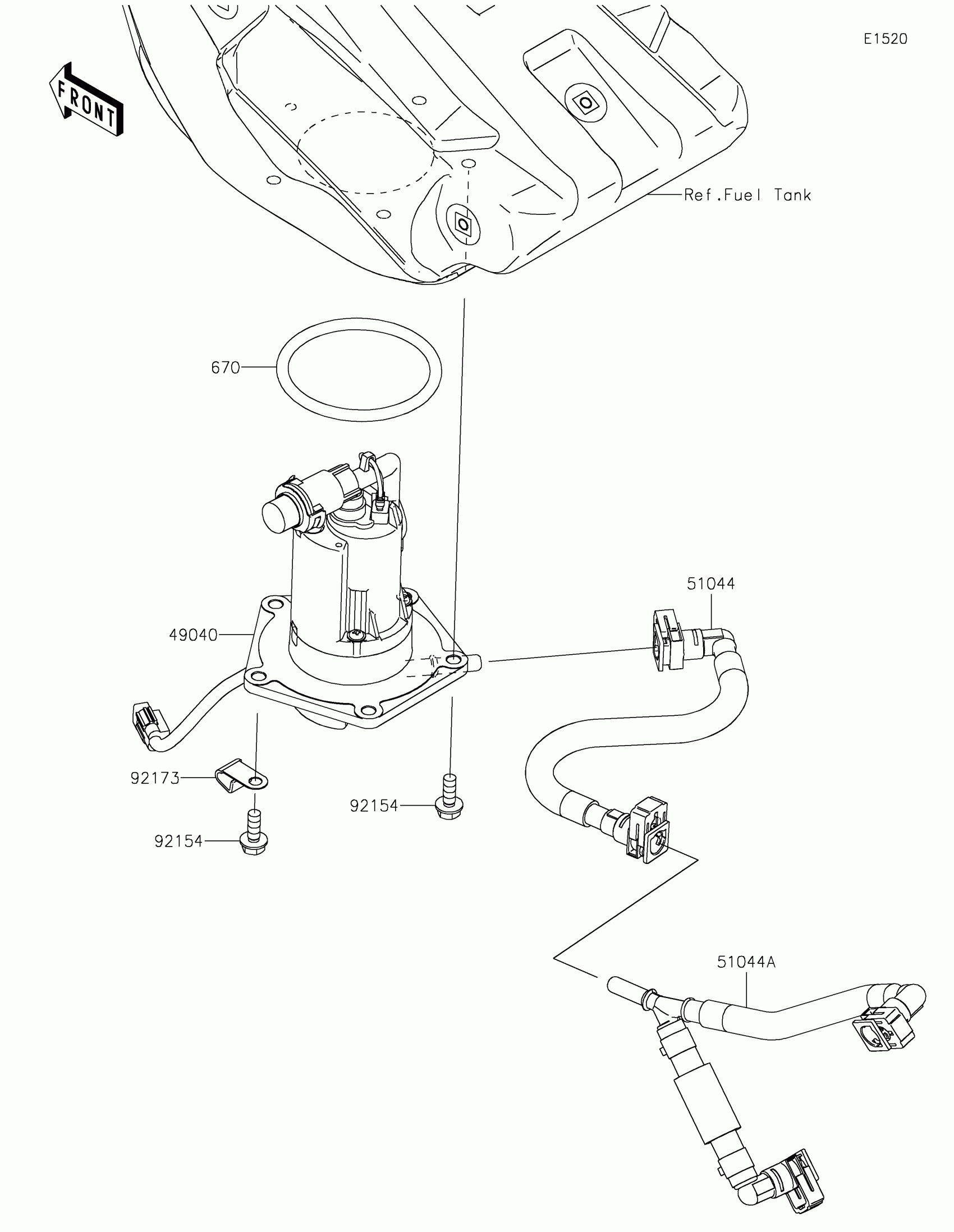

Kawasaki KX250 Fuel Pump Diagram

#

Description

Price

49040

PUMP-FUEL

49040-0761

$543.67

51044

TUBE-ASSY

51044-0917

$114.29

51044A

TUBE-ASSY

51044-0918

$92.35

670

O RING

670E5070

$15.98

92154

BOLT,FLANGED,6X16

92154-0899

$1.66

92173

CLAMP,HARNESS

92173-1368

$5.46
