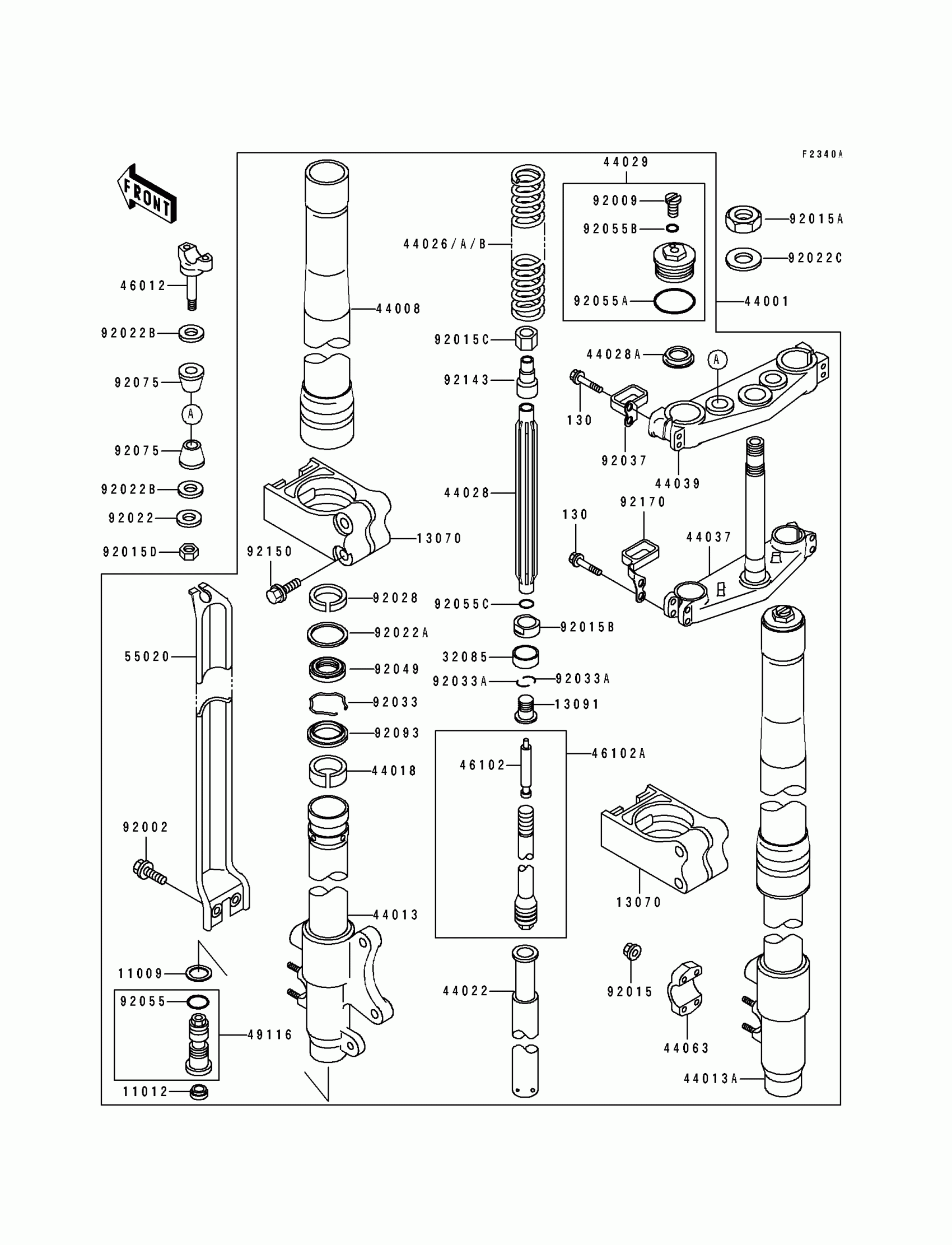

Kawasaki KX250 Front Fork(KX250-H2) Diagram

#

Description
Price

11009

GASKET

11009-1791

Unavailable

11012

CAP

11012-1692

$5.37

13070

GUIDE,PROTECTOR

13070-1204

Unavailable

13091

HOLDER

13091-1651

$29.26

32085

STOPPER

32085-1323

$18.69

44001

FORK-FRONT

44001-1785

$1,871.26

44008

PIPE-FORK OUTER

44008-1012

$897.35

44013

PIPE-FORK INNER,LH

44013-1340

Unavailable

44013A

PIPE-FORK INNER,RH

44013-1341

Unavailable

44018

PISTON-FORK,INNER PIPE

44018-1056

$26.23

44022

CYLINDER-FORK

44022-1264

$235.18

44026

SPRING-FRONT FORK,K=0.39

44026-1486

$94.00

44026A

SPRING-FRONT FORK,K=0.38

44026-1489

$90.06

44026B

SPRING-FRONT FORK,K=0.40

44026-1491

$94.00

44028

GUIDE-FORK SPRING

44028-1080

$76.79

44028A

GUIDE-FORK SPRING

44028-1081

$11.59

44029

SEAT-FORK SPRING

44029-1148

Unavailable

44037

HOLDER-FORK UNDER

44037-1280

$652.53

44039

HOLDER-FORK UPPER

44039-1212

$270.79

44063

HOLDER-FRONT AXLE

44063-1056

$51.22

46012

HOLDER-HANDLE,LWR

46012-1192

Unavailable

46102

ROD,FORK

46102-1303

Unavailable

46102A

ROD,FORK

46102-1307

Unavailable

49116

VALVE-ASSY,FORK

49116-1093

Unavailable

55020

GUARD,FORK

55020-1384

Unavailable

92002

BOLT,6X14

92002-1460

$4.02

92009

SCREW

92009-1568

$5.74

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,STEERING STEM,22MM

92015-1653

$13.20

92015B

NUT

92015-1805

$23.68

92015C

NUT

92015-1806

Unavailable

92015D

NUT,LOCK,10MM

92019-021

$4.83

92022

WASHER,10.2X28X2

92022-1088

$3.72

92022A

WASHER

92022-1299

$6.82

92022B

WASHER

92022-1737

$4.37

92022C

WASHER,STEERING STEM

92022-1873

$5.93

92028

BUSHING

92028-1581

$20.21

92033

RING-SNAP

92033-1077

$3.94

92033A

RING-SNAP

92033-1271

Unavailable

92037

CLAMP

92037-1627

$24.52

92049

SEAL-OIL

92049-1373

$26.48

92055

RING-O,FORK

92055-1062

$3.72

92055A

RING-O,FORK,AIR TUBE

92055-1333

$4.75

92055B

RING-O,2.8X6.6X1.9

92055-1441

$3.45

92055C

RING-O

92055-1442

Unavailable

92075

DAMPER

92075-1776

$8.54

92093

SEAL,FORK OUTER TUBE

92093-1315

$14.71

92143

COLLAR,FORK

92143-1374

Unavailable

92150

BOLT,5X35

92150-1270

$5.10

92170

CLAMP

92170-1088

$24.52

130

BOLT-FLANGED,8X40

130G0840

Unavailable
