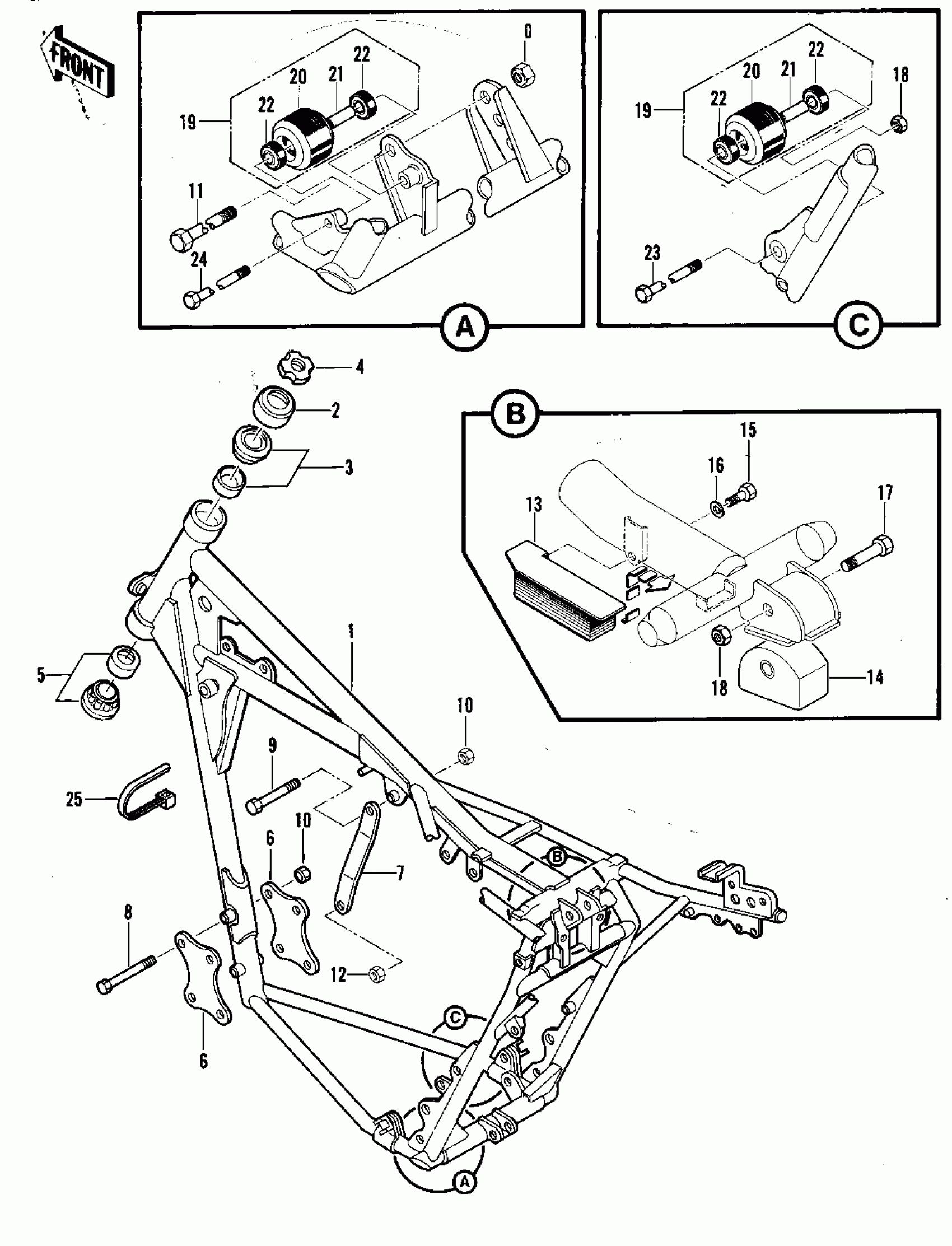

Kawasaki KX250 FRAME/FRAME FITTINGS (KX250-A7) Diagram

#

Description
Price

1

FRAME

32002-1231

$788.24

2

CAP,STEERING STEM

46098-015

Unavailable

3

RACE,ROLLER,32005JR RS

92047-017

$39.76

4

NUT,25MM,T=12

92015-1546

$19.66

5

BEARING-ROLLER,LWR,32006JR RS

92116-1008

$76.75

6

BRACKET,ENGINE

32029-1112

Unavailable

7

BRACKET,ENGINE

32029-4016

Unavailable

8

BOLT HEX HEAD,10X66.5

92001-1033

Unavailable

9

BOLT

92001-1412

Unavailable

10

NUT,LOCK,10MM

92019-021

$4.83

11

BOLT,HEX HEAD,10X127

92001-4001

Unavailable

12

NUT,FLANGED,10MM

92015-1415

$3.72

13

DAMPER,REAR SHOCK

92075-1249

Unavailable

14

DAMPER UNITRAK

92075-4025

$51.58

15

BOLT SMALL

114G0812

Unavailable

16

WASHER SPRING 8MM

461F0800

Unavailable

17

BOLT,8X40

115G0840

Unavailable

18

NUT,LOCK,8MM

92015-1124

$4.30

19

ROLLER,ASSY

92122-1013

$111.07

20

ROLLER

92122-1014

Unavailable

21

COLLAR

92027-1081

$9.29

22

BEARING-BALL,608LLU/2A

92045-1009

$32.24

23

BOLT-SMALL-UPSET

115G0855

$5.34

24

BOLT HEX HEAD 8X70

114B0870

Unavailable

25

BAND,L=292.1

92072-3509

Unavailable
